Polytron SPM 2000 LAN - Dimensions and Connection Drawings SPM 2000 LAN

25
17 Dimensions and connection drawings SPM 2000 LAN

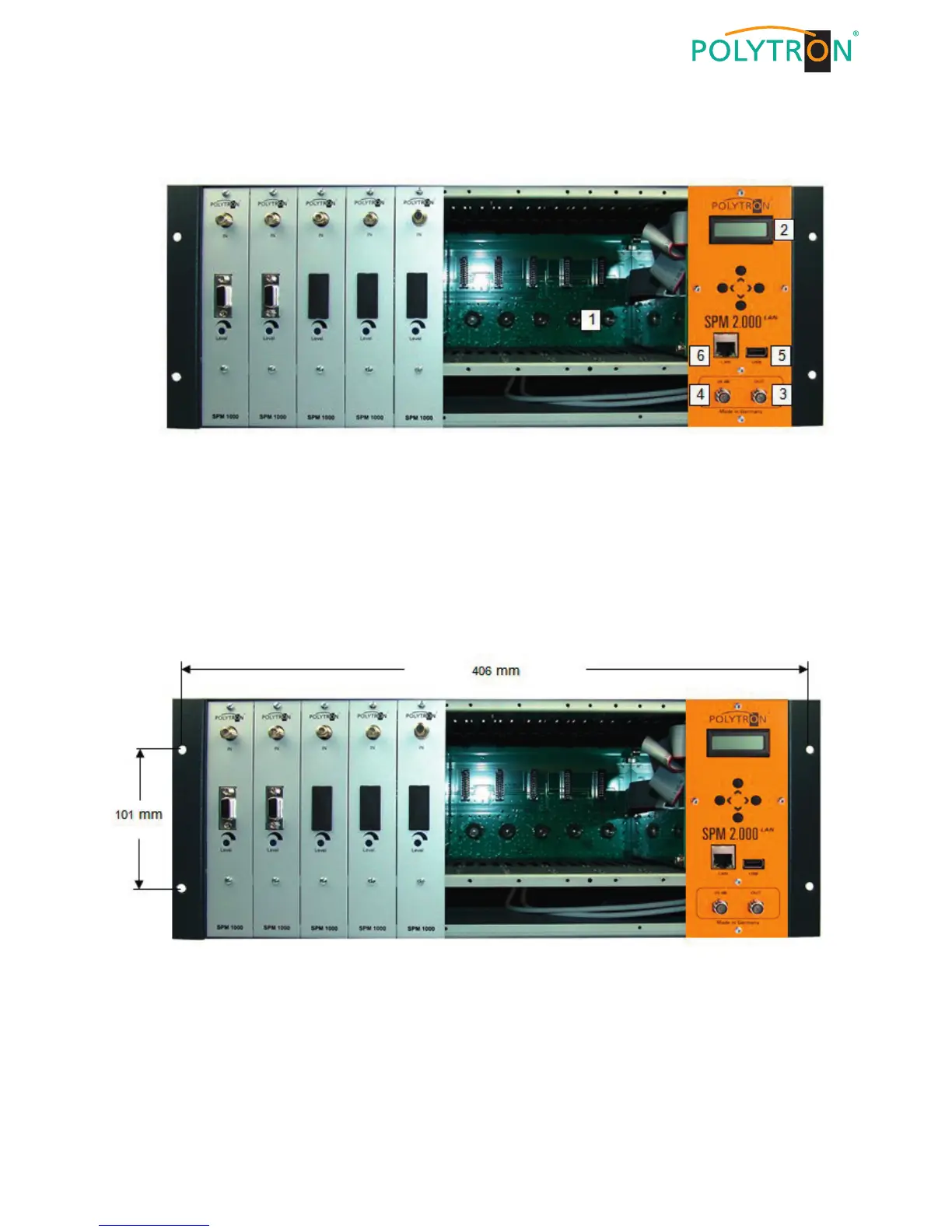

Figure 9 Control- and display elements, connections
Figure 10 Dimensions of the fixing brackets
The mains connection 230 V~ is located on the back of the base unit.
1 Module slots 3 Output
(left side module slot 1 4 Test output (approx. -20 dB)
right side module slot 10) 5 USB port
2 Display for programming 6 LAN port
and connection for CopyKey
(Control panel removable)
