Polytropic PAC 16 - Page 35

- 35 -
Mono-phase heat pump connection to pool electrical board

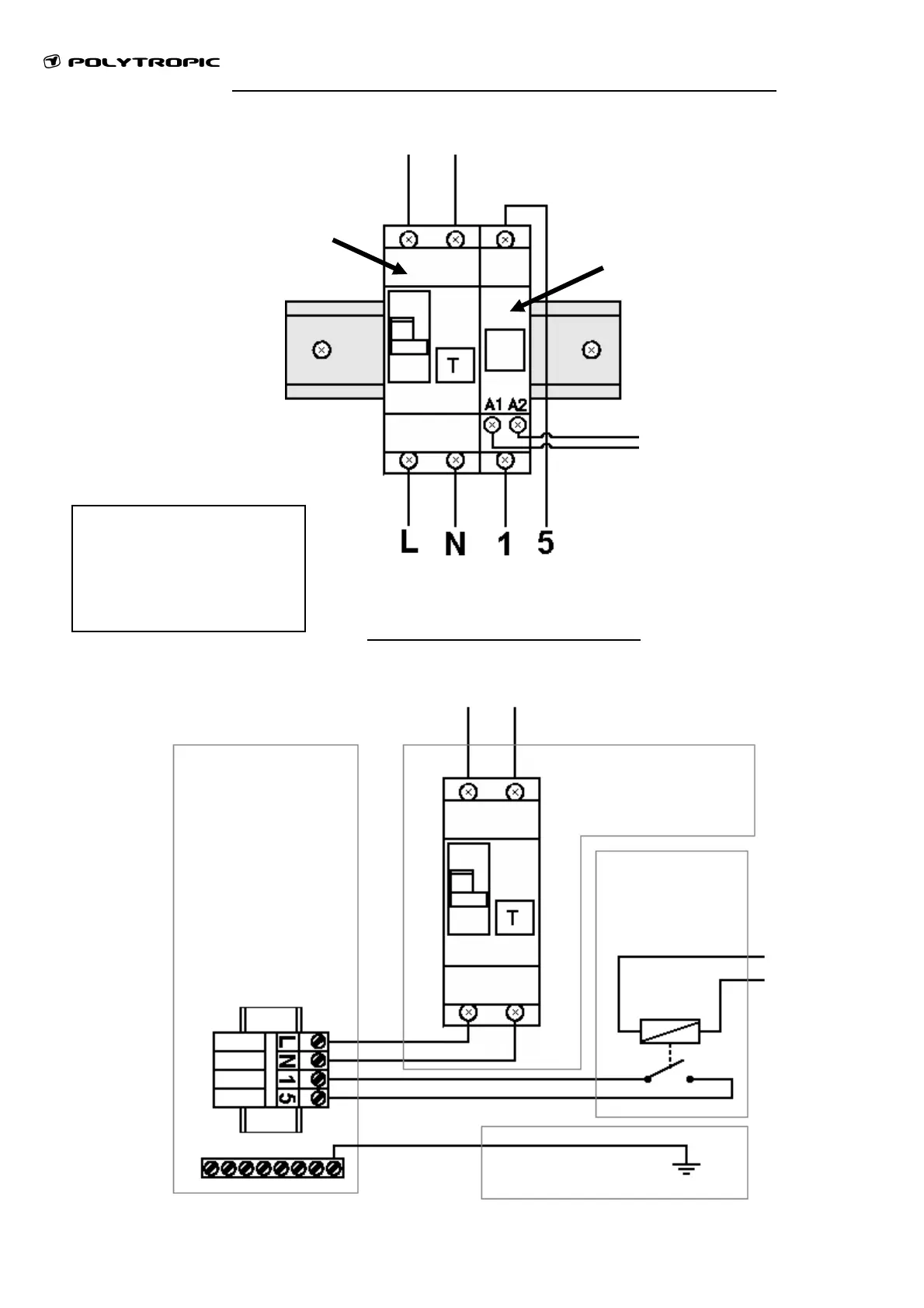

Electrical connection diagram
Power supply
Heat pump terminal
Contactor
controlled by
pool timer
230V Power supply
Heat pump
connection panel
Head of line
protection
General ground
Water
filtration
pump power
supply 230V
N/O Relay
Circuit breaker
and differential
protection
Water
filtration
pump power
supply 230V
A kit containing all
these elements is
optional and available
under request.
