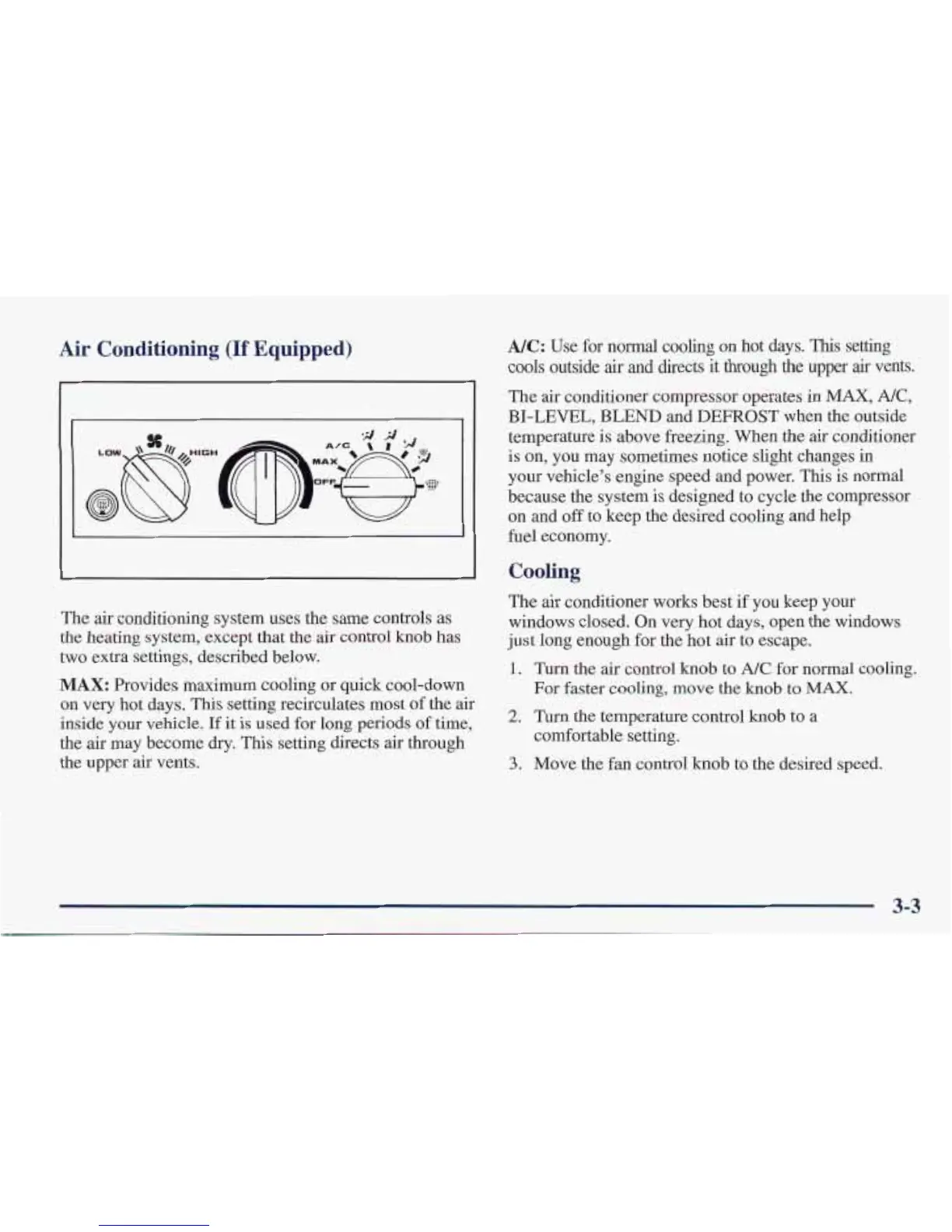

Air Conditioning
(If
Equipped)
I
The air conditioning system uses the same controls as
the
heating system, except that the air control knob has
two extra settings, described below.
MAX:
Provides maximum cooling or quick cool-down
on
very hot days. This setting recirculates most
of
the air
inside your vehicle.
If
it
is
used for long periods of time,
the air may become dry. This setting directs air through
the upper air vents,
A/C:
Use for normal cooling on hot days.
This
setting
cools outside
air
and c‘kts
it
through the upper air
vents.
The
i-111-
conditioner cumpressor operates in
MAX,
AIC,
BI-LEVEL,
BLEND
and DEFROST when the outside
temperature is above freezing. When the
air
conditioner
is on,
you
may sometimes notice slight changes
in
your vehicle’s engine speed and power. This is normal
because the system is designed to cycle the compressor
on and
off
to keep the desired cooling and help
fuel economy.
Cooling
The air conditioner works best if you keep your
windows closed. On very
hot
days, open the windows
just
long enough for the hot air to escape.
1.
Turn
the
air control
knob
to
A/C
for
normal cooling.
For faster cooling, move the
knob
to
MAX.
2.
Turn the temperature control knob to
a
comfortable setting.
3.
Move the fan control knob to the desired speed.
