6-16
Engine Air Cleaner/Filter

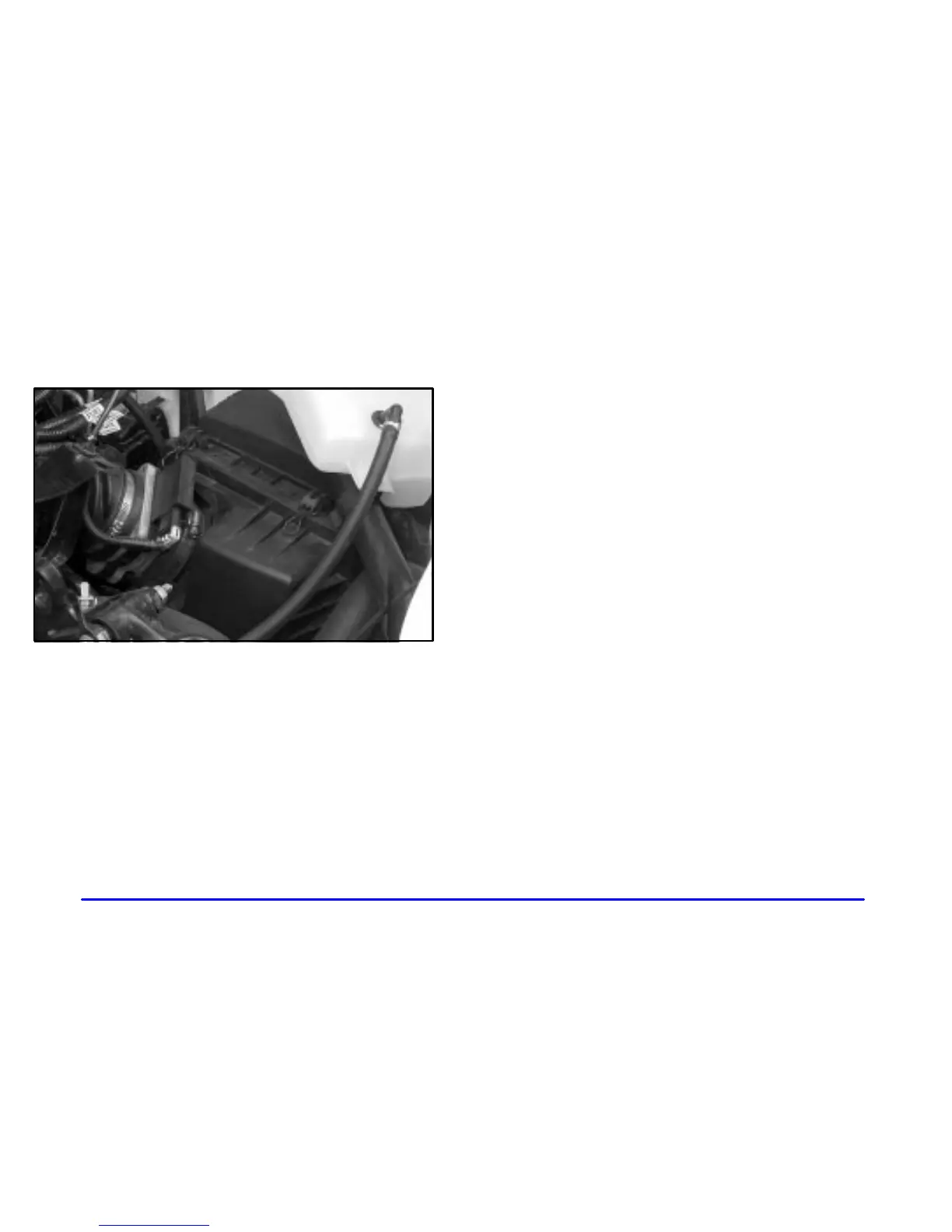

The engine air cleaner/filter is located at the front of the
engine compartment on the driver’s side of the vehicle,
under the engine coolant reservoir.
See “Engine Compartment Overview” in the Index for
more information on location.
Checking or Replacing the Engine Air Cleaner/Filter
To check or replace the filter, do the following:
1. Remove the two clamps on the duct.
2. Remove the duct.
3. Unlatch the two hooks on top of the engine air
cleaner/filter housing.
4. Remove and replace the engine air cleaner/filter.
5. Align the tabs located on the bottom of the panel
with the slots at the of the housing.
6. Latch the hooks to secure the panel in place. If the
panel moves easily, check that the tabs are seated
correctly in the slots.
7. Put the duct back on and reinstall the clamps.
