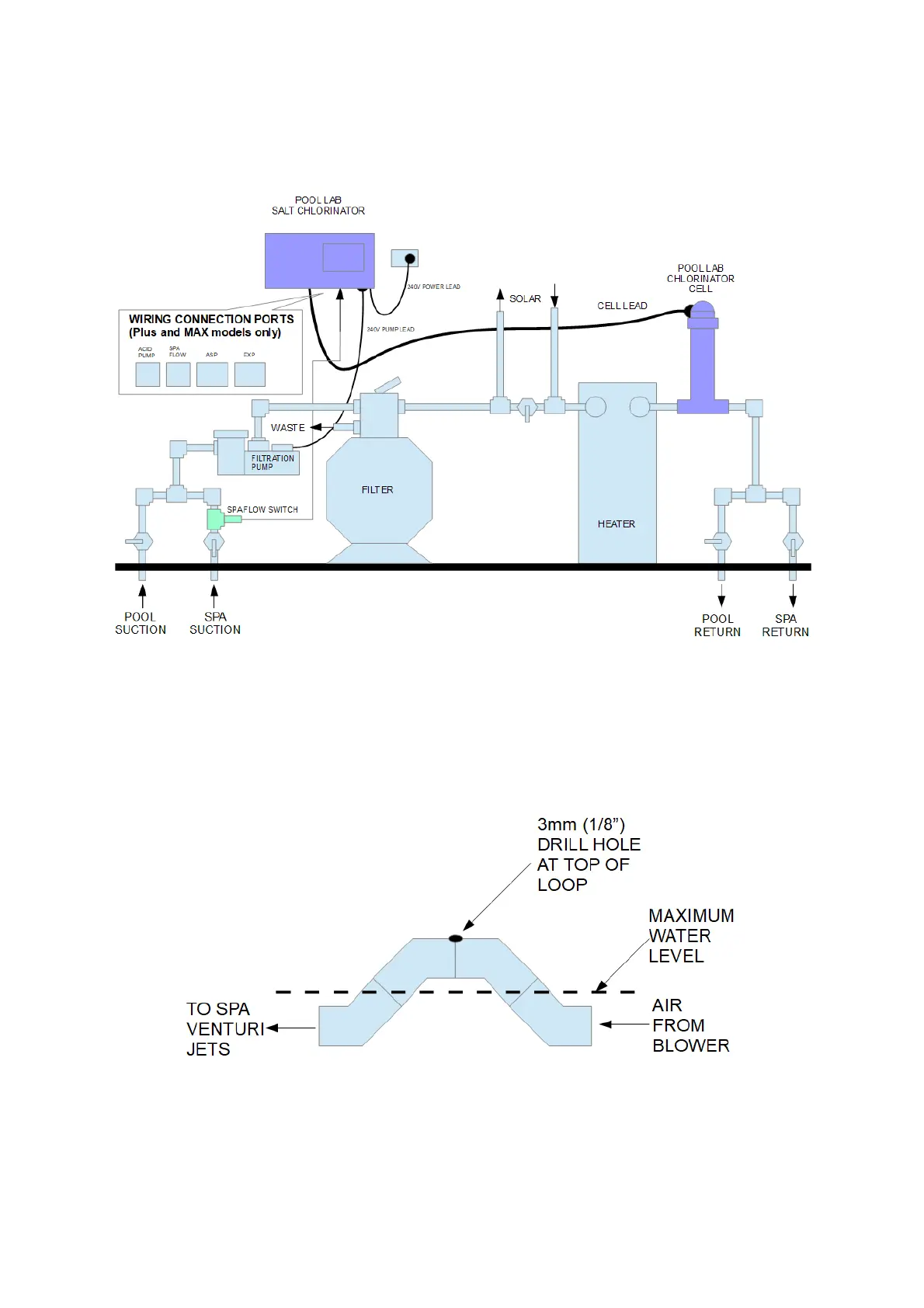

POOL LAB PL25 - Plumbing Example

Plumbing Example
Air Blower Installation – If an air blower is installed and connected directly to venturi spa
jets, then a vented loop must be installed. This allows any potential build up of hydrogen
gas to escape from the blower line before it comes in contact with the blower motor.
NOTE: The top of the loop must be above the maximum water level in the spa.
26
