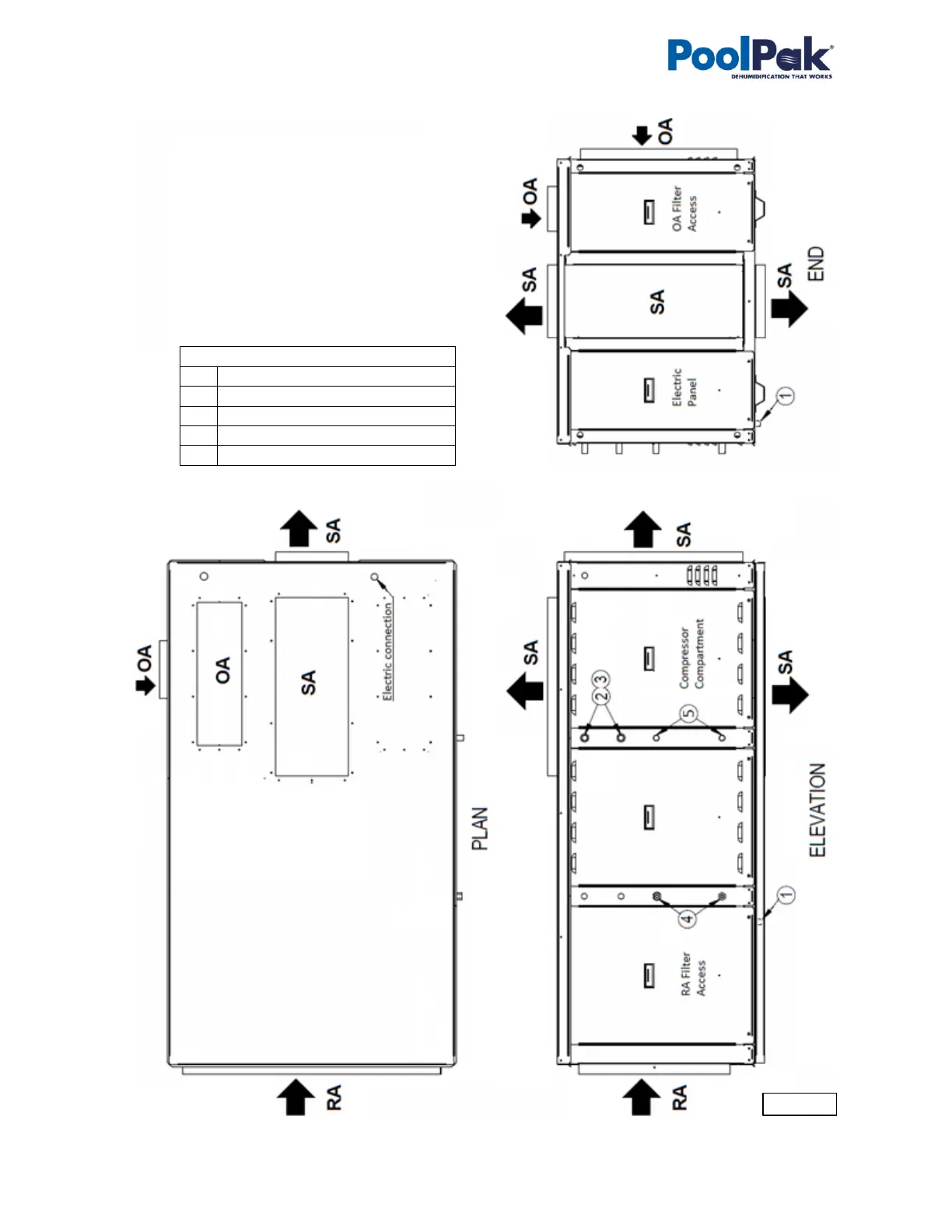

PoolPak PCP Series - RV and RH Cabs: Horizontal Configuration

September 2020 7 PoolPak PCP Series – Indoor OMM
Horizontal Composition
• Return Air (RA) ductwork connection -
horizontal.
• Supply Air (SA) ductwork connection
options – top, bottom, horizontal (straight).
• Outdoor Air (OA) intake ductwork
connection options – top, horizontal.
Piping Connections
①
Condensate Drain
②
AC – Air-Cooled (refrigeration)
③
AC – Water-Cooled (water/glycol)
④
Pool Heating Water
⑤
Space Heating Hot Water
Pic. C.1-B
