340 Minor Repairs
Vehicles with side member panels

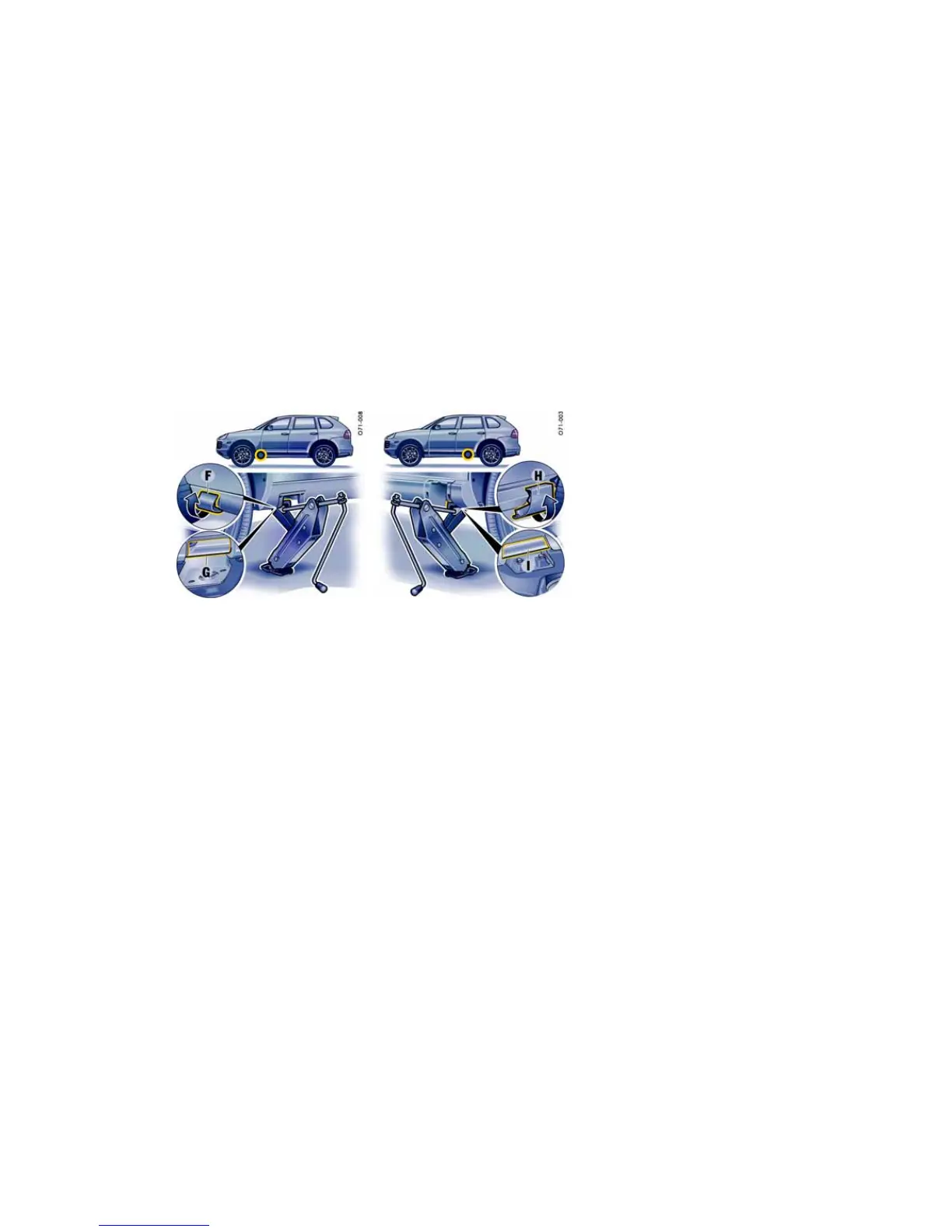

Front jacking point
Jacking points for vehicles with side member
panels
The jacking points are accessible after removing
the plastic covering caps F or H from the side
member panels.
Removing covering cap:
1. Open covering cap F or H in the side member
panel to the front by means of the internal
handle recess and pull off (arrow).
Vehicles with side member panels
Rear jacking point
2. Attach jack only at the points provided G or I .
Fitting covering cap:
f Insert the covering cap F or H completely in
the slots of the side member panel with both
centring lugs and fold back until it can be felt
to engage.
