Trailer Hitch 245
Electrically folding trailer coupling
Warning!
Danger of injury and risk of damage when
the ball hitch is extended or retracted.
f Make sure that no persons, animals or obsta-
cles are in the movement range of the ball
hitch.
f In order to stop the ball hitch movement in the
event of danger, touch rocker switch A again.
f Never swivel the ball hitch if a trailer is hitched
to the vehicle or a bicycle carrier or similar
item is mounted on or supported by the ball
hitch.
f Use the trailer coupling only with the ball hitch
fully extended.
f Never use auxiliary devices or tools to inter-
fere with the movement of the ball hitch. This
could damage the locking mechanism. Safe
use of the trailer coupling would then no longer
be guaranteed.
f Make sure that the ball hitch is properly locked
in place prior to every journey.
Preconditions
– The vehicle must be stationary.
– The rear lid or rear window must be open.
Extending
f Press top half of rocker switch A.
The ball hitch automatically extends to
operating position.
The red light-emitting diode in the rocker
switch flashes until the ball hitch reaches
operating position.
Preconditions
– The vehicle must be stationary.
– The rear lid or rear window must be open.
– Trailer must be unhitched.
– The plug (and any adapter) must have been
removed from the socket.
– There must not be any items on the ball hitch
(e.g. ball protection cap, bicycle carrier, etc.).

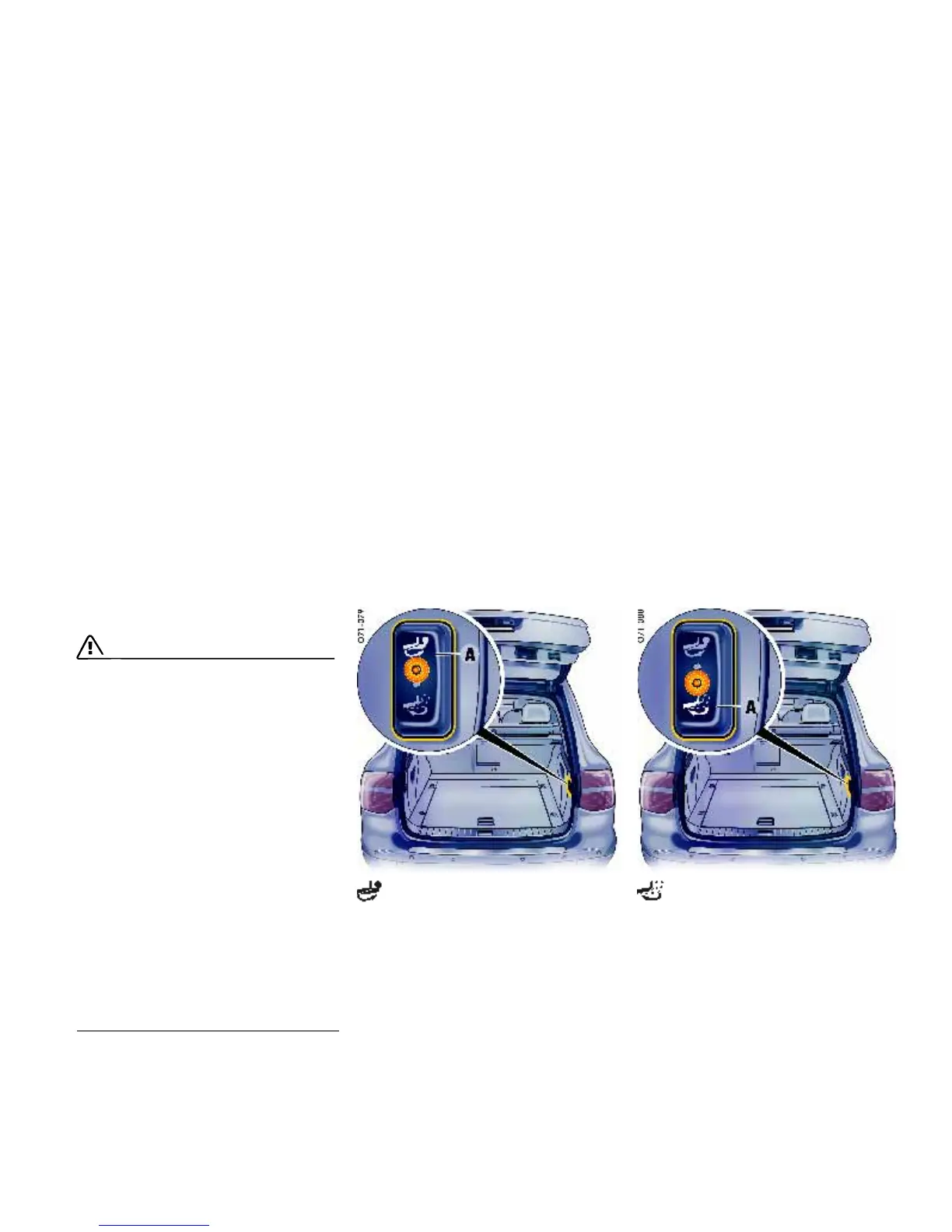

Extending trailer coupling Retracting trailer coupling
