Portacool cyclone 3000 - Exploded Views

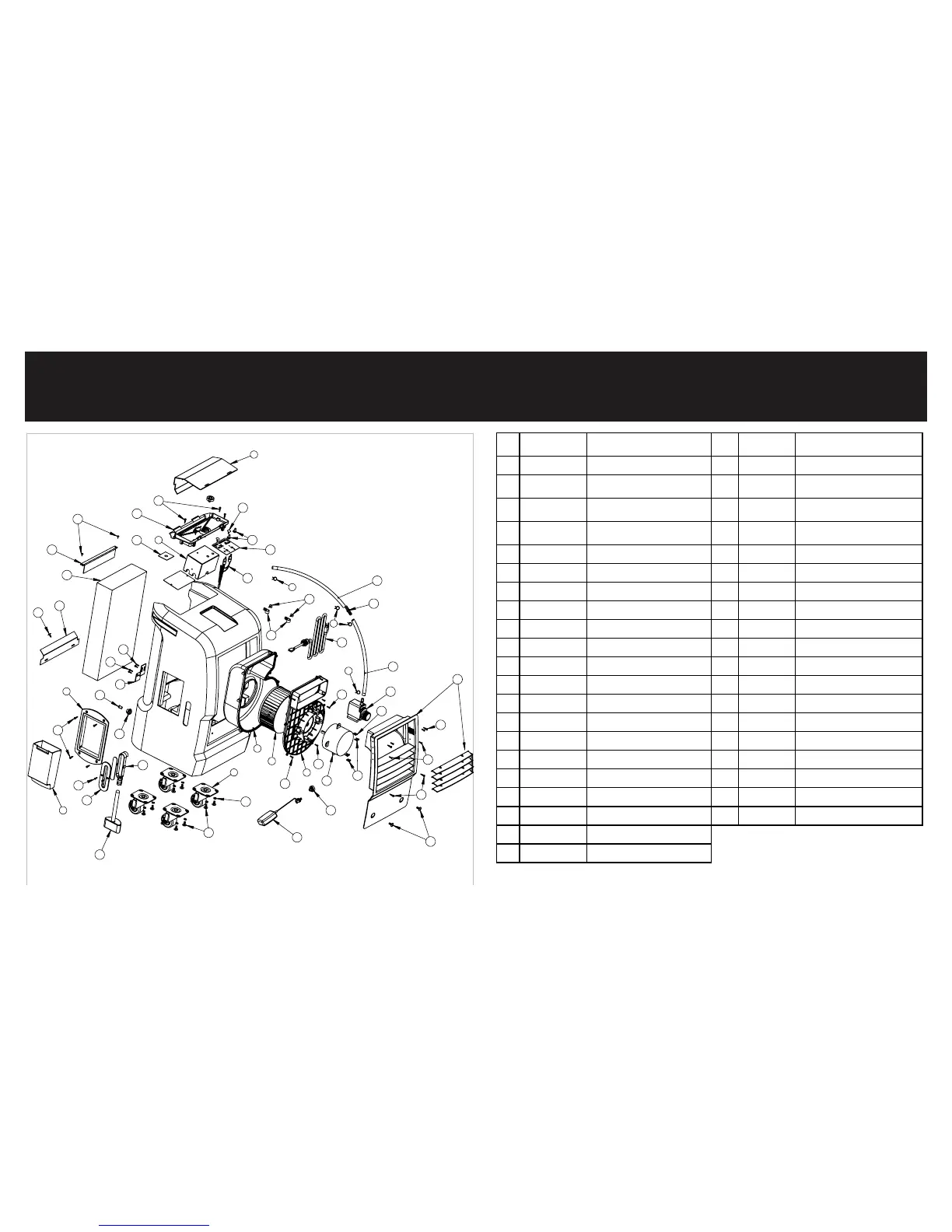

CYCLONE 1000 PARTS
12
1
2
3
4
5
6
7
10
36
9
8
23
22
15
25
11
30
13
14
17
17
17
19
20
21
23
25
26
25
25
26
26
26
26
25
28
27
29
31
32
34
35
37
16
36
25
33
8
23
8
24
18
39
38
PACCYC06
Revised 02/24/15
PORTACOOL, LLC.
2015
16
PACCYC06
ITEM PART # DESCRIPTION ITEM PART # DESCRIPTION
1 ACCDOOR-C1-714 WATER FILL DOOR 22 PUMP-CYC-3 CYCLONE PUMP -OK4000
2 ACCFRM-C1-715 FILL DOOR FRAME 23 S-003 5/16 - 18 x1/2” TRUSS HEAD SCREW (2EA)
3 BLOWER-WHL-2CW CYCLONE 2000 BLOWER WHEEL - CW 24 S-007 5/16 - 18 x 3/4 TRUSS HEAD SCREW (16EA)
4 BLWEHSG-C1-7162 BLOWER HOUSING 25 S-011 #8 x 9/16” WASHER HEAD SCREW
5 BLWRCVR-C1-7163 BLOWER HOUSING COVER 26 S-818-58PPH 8 - 18 x 5/8 PAN HEAD SCREW (24EA)
6 BOX-UL-02 1 & 2 SPEED ELECTRICAL BOX 27 S-1016-1PPH 10-16x1 PHILLPS SELF-TAP SCREW (12EA)
7 CASTER-3-NL 3” NON-LOCKING CASTER 28 SGTFRM-C1-711 SIGHT GLASS FRAME FOR CYCLONE1000
8 CLAMP-01 1/2” WIRE TUBING CLAMP 29 SGTGLS-C1-719 SIGHT GLASS W/EXTERNAL FRAME
9 COVER-C1-716 TOP TRAY COVER, CYCLONE1000 30 SPIN-FTG-02 1/4” SPIN FITTING FOR 16” UNIT
10 CTRL-2SPD-01 2-SPEED SWITCH SET 31 SPLASHGUARD-C1 SPLASH GUARD CYCLONE1000
11 CYCLONE-H-10 CYCLONE 1000 HOUSING (BLACK) 32 SPRAY-ACC-01 #012 NYLON CLIP
12 DRAIN-PLUG-01 1/4” NPT PLUG #P-28 33 SWITCHPL-2SPD-T SWITCH COVER PLATE - 2SPD(TPI)
13 FLOAT-CYC-717 FLOAT FOR CYCLONE1000 34 TRAY-ACC-C1 BOTTOM DRIP TRAY CAP/COVER
14 FRNTPNL-C1-7112 FRONT PANEL, WITH LOUVERS 35 TRAY-C1-713 DRIP TRAY WITH CAP/VALVE
15 HOSE-FTG-09 1/2” BARB FLOW RESTRICTOR 36 TOG-BOOT-01 BLK RUBBER TOGGLE-SWITCH BOOT
16 MOTOR-017-01 CYCLONE 1000 2-SPEED MOTOR (B-O) 37 TUBE-01 1/2” ID SOFT PLASTIC TUBE
17 MTR-BRKT-C1 BLOWER HOUSING SUPPORT BRACKET 38 WASHER-04 5/16 LOCK WASHER
18 MUC-ACC-02 CHRISTMAS TREE FASTENER (5EA) 39 FLOAT-CYC-03 FLOAT VALVE FOR CYCLONE UNITS
19 PAD-BRACKET-C1 PAD RETENTION BRACKET 40 PAC-PLB-01 INLET HOSE ADAPTER
20 PADMF4022/G 4”x12”x22” MICROFLUTE 45/46
21 POWERCORD-02F 10” POWER CORD WITH BRASS NUT/WASHER
