Portacool cyclone 3000 - Page 18

24
11
5
30
14
25
4
28
29
10
33
19
22
10
23
13
15
18
2
21
9
26
8
27
1
3
17
6
34
20
20
32
12
33
7
31
16
PAC2KCYC01
REVISED 02/16/2015
PORTACOOL
ITEM PART # DESCRIPTION ITEM PART # DESCRIPTION
1 BASE-CYCLONE CADDY FRAME 18 PAC-PLB-01 INLET HOSE ADAPTER
2 BLOWER-01 BLOWER HOUSING 19 PAD6022.5/26 KUUL PAD SET FOR CYCLONE
3 BLOWER-WHL-01 BLOWER WHEEL 20 POLY-FTG-06 90 DEG. FITTING FOR SIGHT TUBE
4 BONNET-05 BONNET 21 POWERCORD-02F 10ft POWER CORD W / DOME STRAIN RELIEF
5 BOX-UL-02 2 SPD UL ELECTRICAL BOX 22 PUMP-BRACKET-#4 ALUM. BAR PUMP BRACKET
6 CAPACITOR-01 PSU 25-30 CAPACITOR 23 PUMP-CYC-3 CYCLONE PUMP - OK400
7 CAPBOOT-01 WATER PROOF BOOT FOR CAPACITOR 24 S-006 TEC SCREW S006
8 CASTER-3-L 3" LOCKING CASTERS 25 S-009 10/24 x 3/3 TRUSS HEAD SCREW
9 CASTER-3-NL 3" CASTERS 26 S-014 5/16 x 1" TRUSS HEAD SCREW
10 CLAMP-01 1/2" WIRE SPRING CLAMP 27 S-017 5/16 - 18 x 1.5" TRUSS HEAD SCREW
11 CTRL-2SPD-01 2-SPEED SWITCH ASSEMBLY 28 SPRAY-CYC-01 16" SPRAY BAR
12 CTRL-VLV-BRKT-1 VALVE-01 MOUNTING BRACKETS 29 SPRAY-ACC-04 SPRAY BAR CLIP
13 DRAIN-PLUG-01 DRAIN PLUG 30 SWITCHPL-2SPD 2 SPEED SWITCH PLATE
14 FLAP-05 FLAP 31 TOG-BOOT-01 RUBBER TOGGLE SWITCH BOOT (2)
15 FLOAT-CYC-03 FLOAT VALVE FOR CYCLONE UNITS 32 VALVE-01 PUMP TO SPRAY BAR CONTROL VALVE
16 LOUVERS-CYC-16 CYCLONE 3000 LOUVER W/MESH 33 TUBE-01 PUMP TO SPRAY BAR TUBING
17 MOTOR-013-07 1/3 HP - 2SPD MOTOR 34 TUBE-03 SIGHT TUBE

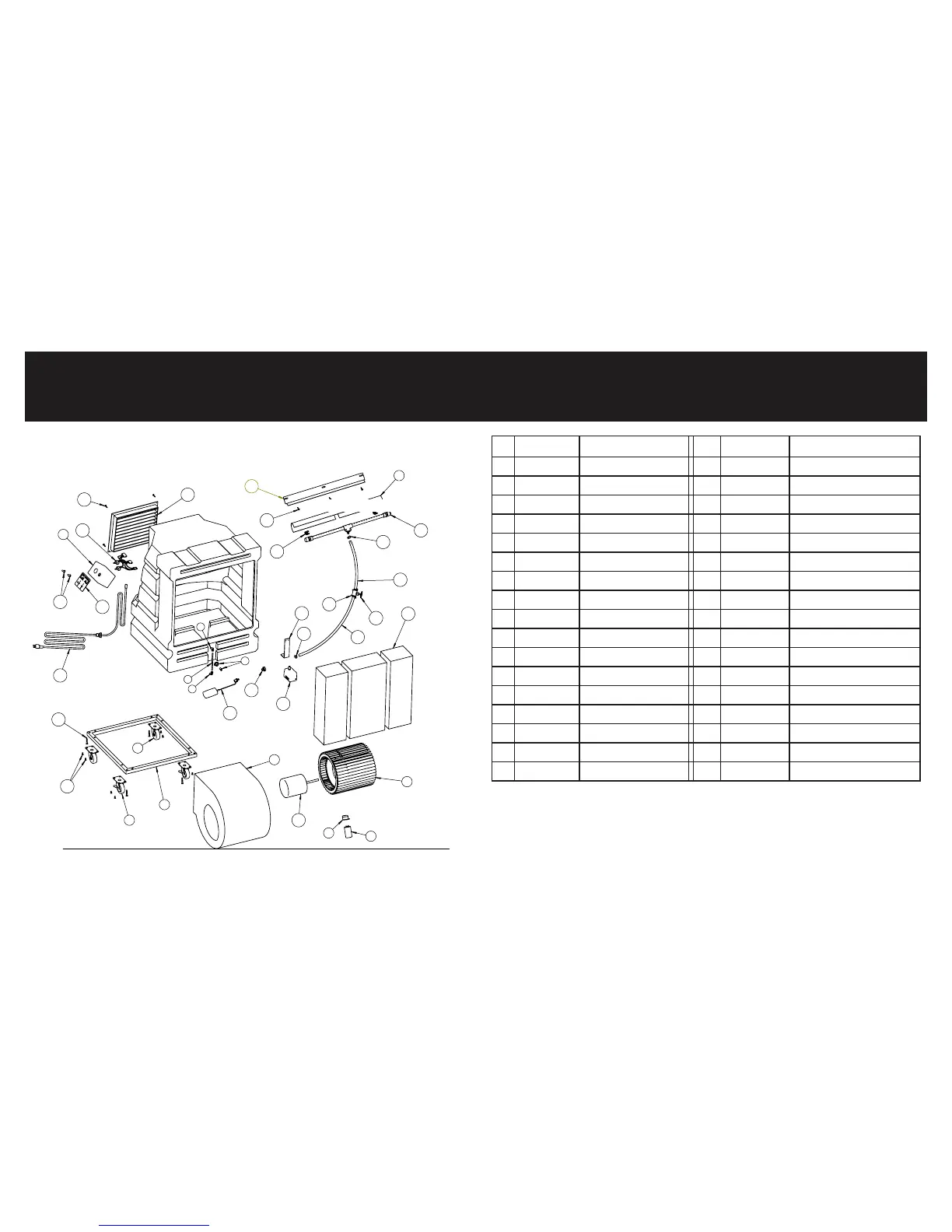

CYCLONE 3000 PARTS
PAC2KCYC01A
17
