Portacool cyclone 3000 - Page 19

PACCYC02
Revised 02/04/2015
15
5
10
13
22
28
7
23
16
8
6
17
14
1
13
19
4
18
21
20
30
31
25
26
9
9
26
12
2 3
24
11
29
27
PORTACOOL, LLC.
2015
ITEM PART # DESCRIPTION ITEM PART # DESCRIPTION
1 BLOWER-02 BLOWER HOUSING - CYCLONE2000 17 MOTOR-016-01 CYCLONE2000 - 2SPD MOTOR
2 BLOWER-WHL-2CW CYCLONE2000 BLOWER WHEEL (PART 1) 18 PAC-PLB-14 INLET HOSE ADAPTER
3 BLOWER-WHL-3CCW CYCLONE2000 BLOWER WHEEL (PART 2) 19 PAD6019/22 KUUL PAD SET FOR CYCLONE2000
4 BONNET-06 22.5" EXTRUDED BONNET-CYCLONE2000 20 PUMP-BRACKET-5 PUMP MOUNT BRACKET
5 BOX-UL-02 1 & 2 SPD UL ELECTRICAL BOX 21 PUMP-CYC-3 CYCLONE PUMP - OK400
6 CAPACITOR-04 RUN CAPACITOR FOR CYCLONE2000 22 S-002 TEC SCREW S006
7 CASTER-3-L 3" LOCKING CASTERS 23 S-007 10/24 x 3/3 TRUSS HEAD SCREW
8 CASTER-3-NL 3" CASTERS 24 S-011 5/16 x 1" TRUSS HEAD SCREW
9 CLAMP-01 1/2" WIRE SPRING CLAMP 25 SPRAY-CYC-02 SPRAY BAR
10 CTRL-2SPD-01 2-SPEED SWITCH ASSEMBLY 26 SPRAY-ACC-01 SPRAY BAR CLIP
11 CTRL-VLV-BRKT VALVE-01 MOUNTING BRACKETS 27 SPIN-FTG-02 SPIN FITTING FOR 16" UNIT
12 DRAIN-PLUG-01 DRAIN PLUG 28 SWITCHPL-2SPD 2 SPEED SWITCH PLATE
13 FLAP-CYC-2 FLAP/SPLASHGAURD-CYCLONE2000 29 TOG-BOOT-01 RUBBER TOGGLE SWITCH BOOT (2)
14 FLOAT-CYC-03 FLOAT VALVE 30 VALVE-01 PUMP TO SPRAY BAR CONTROL VALVE
15 LOUVERS-CYC-11 LOUVER W/MESH - CYCLONE2000 31 TUBE-01 PUMP TO SPRAY BAR TUBING
16 POWERCORD-02F 10ft POWER CORD W / DOME STRAIN RELIEF
PACCYC02A

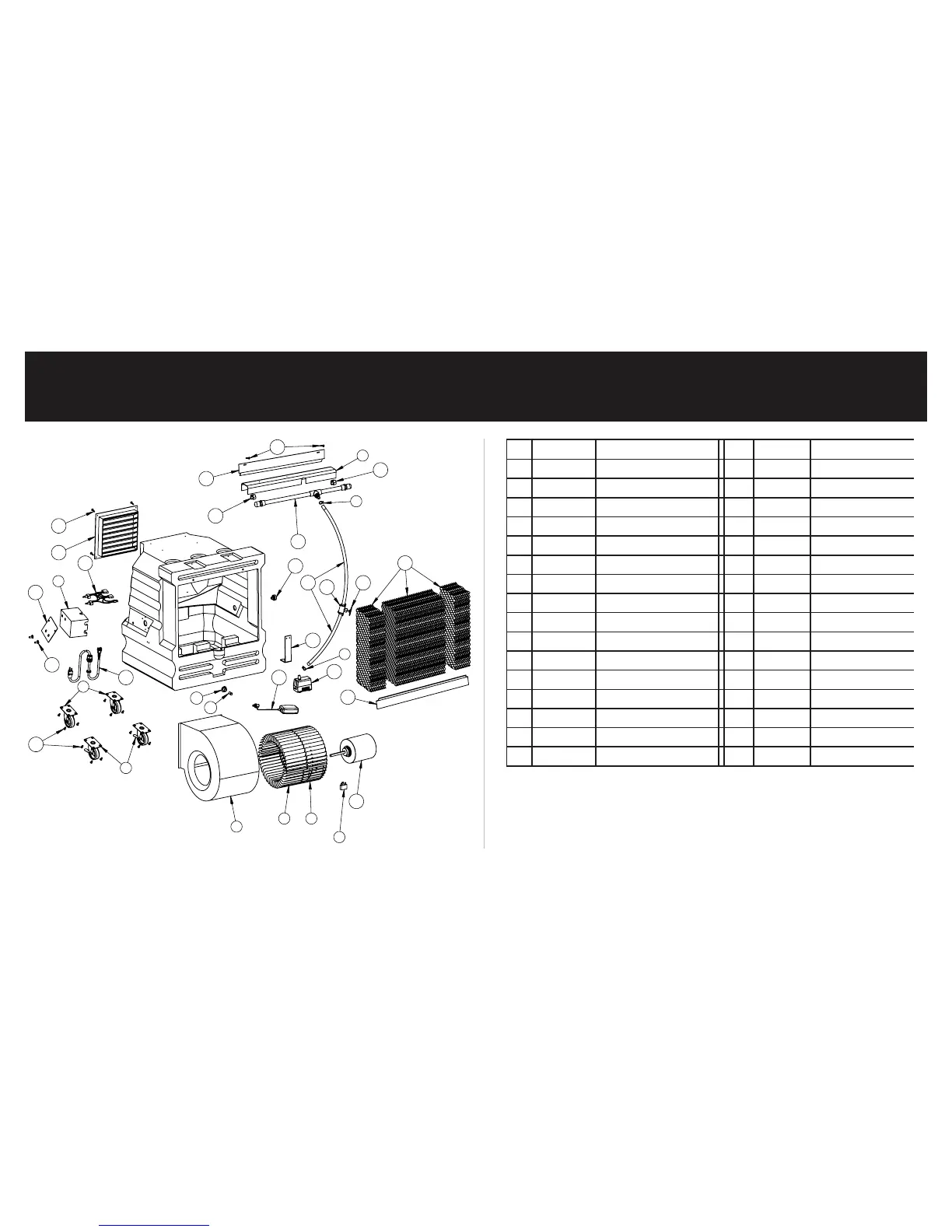

CYCLONE 2000 PARTS
