11

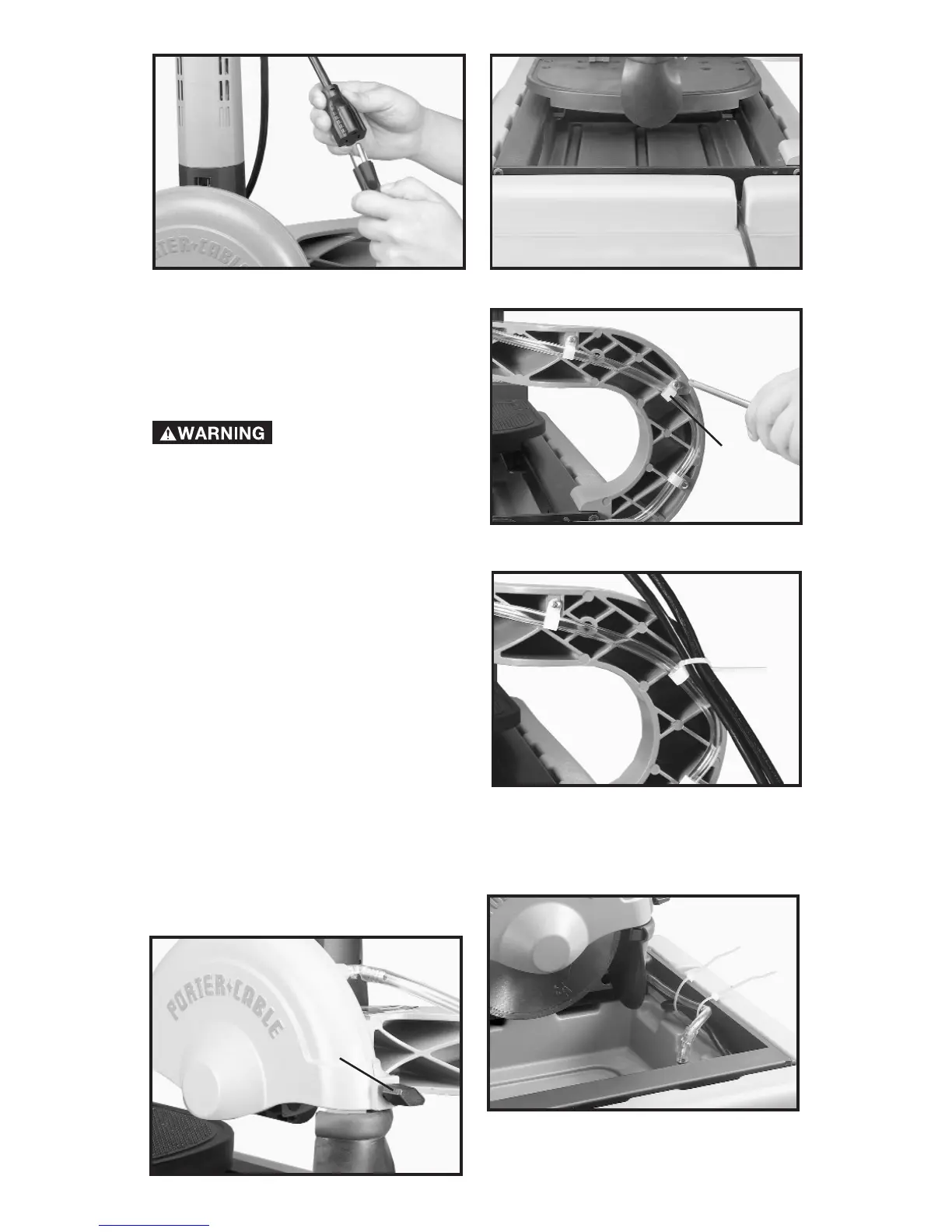

6. Plug the water pump cord into
the motor plug receptacle (Fig.
10). NOTE: Place cord through
the cord slot (Fig.11A), in the
water tray.
Only plug water pump
cord into motor receptacle.
7. Loosen the water hose clamp (A)
Fig. 11B, and insert cable tie (Q)
Fig. 1, through the water hose
clamp. Secure water pump cord
and motor cord to saw arm with
cable tie as shown in Fig. 11C.
Tighten the water hose clamp (A)
Fig. 11B.
8. Secure water pump hose and
cord to the cutting tray frame with
cable tie (Q) Fig. 1, as shown in
Fig. 11D.
ATTACHING THE SAW BLADE
NOTE: Use only continuous wet
cut diamond blades rated at 6000
RPMs or greater.
1. Loosen knob (A) Fig. 12, and
open the blade cover.
Fig. 12
A
Fig. 11B
Fig. 11D
Fig. 10
Fig. 11A
Fig. 11C
A
