STARTING AND STOPPING MACHINE
Make sure switch is OFF and power circuit voltage is the
same as that shown on the specification plate.
Fig. 15
Fig. 16
Fig. 13
Fig. 14
Fig. 17
OPERATION

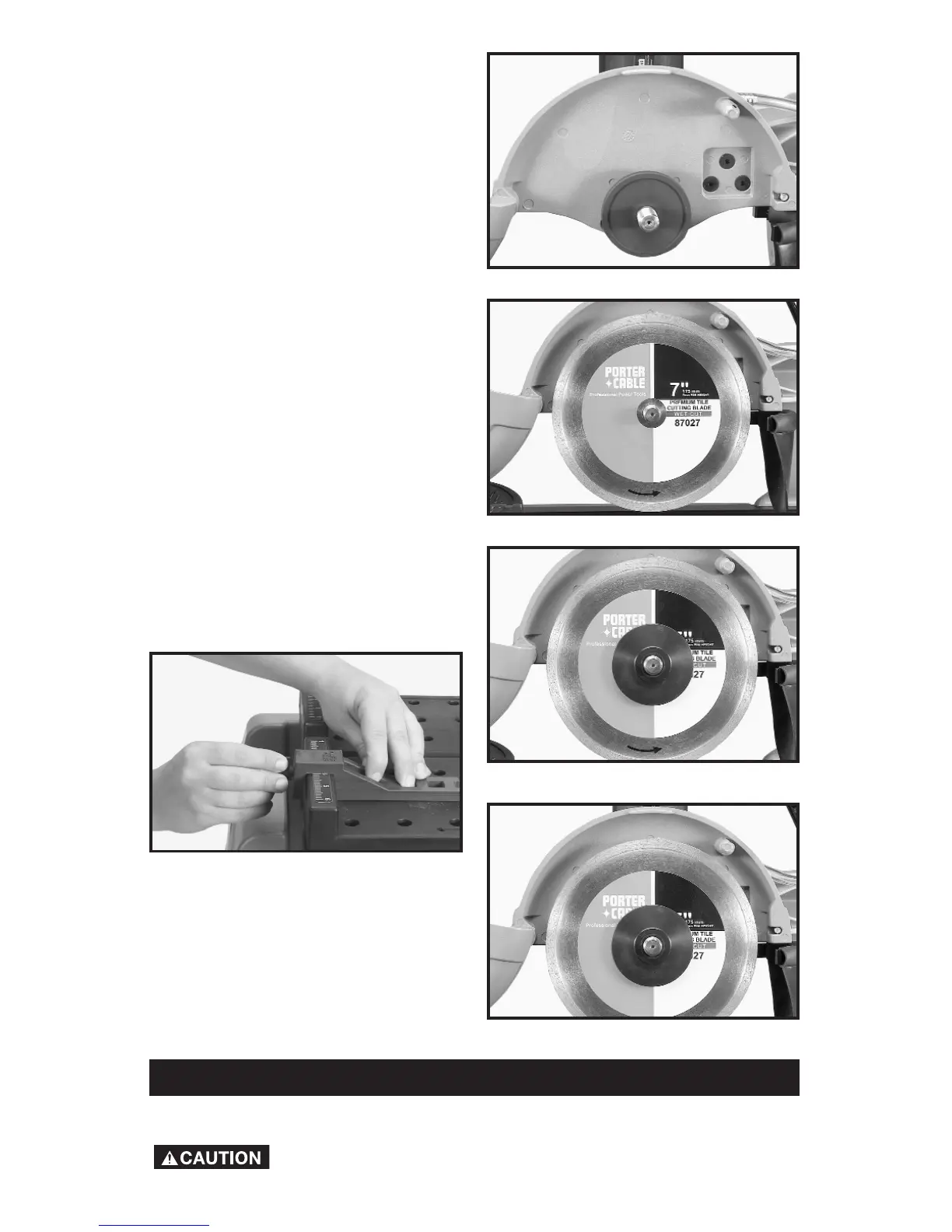

2. Place the inner flange (I) Fig. 1,
onto the motor arbor as shown in
Fig. 13
3. Place the blade (J) Fig. 1, onto
the motor arbor. NOTE: Make
sure the blade is placed on the
arbor with the arrow on the blade
facing counter-clockwise, as
shown in Fig. 14.
4. Place the outer flange (I) Fig. 1,
onto the motor as shown in Fig.
15.
5. Tighten the arbor nut (O) Fig. 1,
onto the arbor Fig. 16 using the 2
wrenches provided (M,N) Fig. 1.
NOTE: Wrench (M) Fig. 1, is used
to hold the arbor in place while
wrench (N) Fig. 1, is used to
tighten the arbor nut onto the
arbor.
6. Close blade cover and tighten
blade cover knob (A) Fig. 12.
7. Attach the rip guide (P) Fig. 1 to
the cutting tray by loosening the
locking knob and placing the rip
guide onto the front of the
cutting tray and tighten the
locking knob Fig 17.
