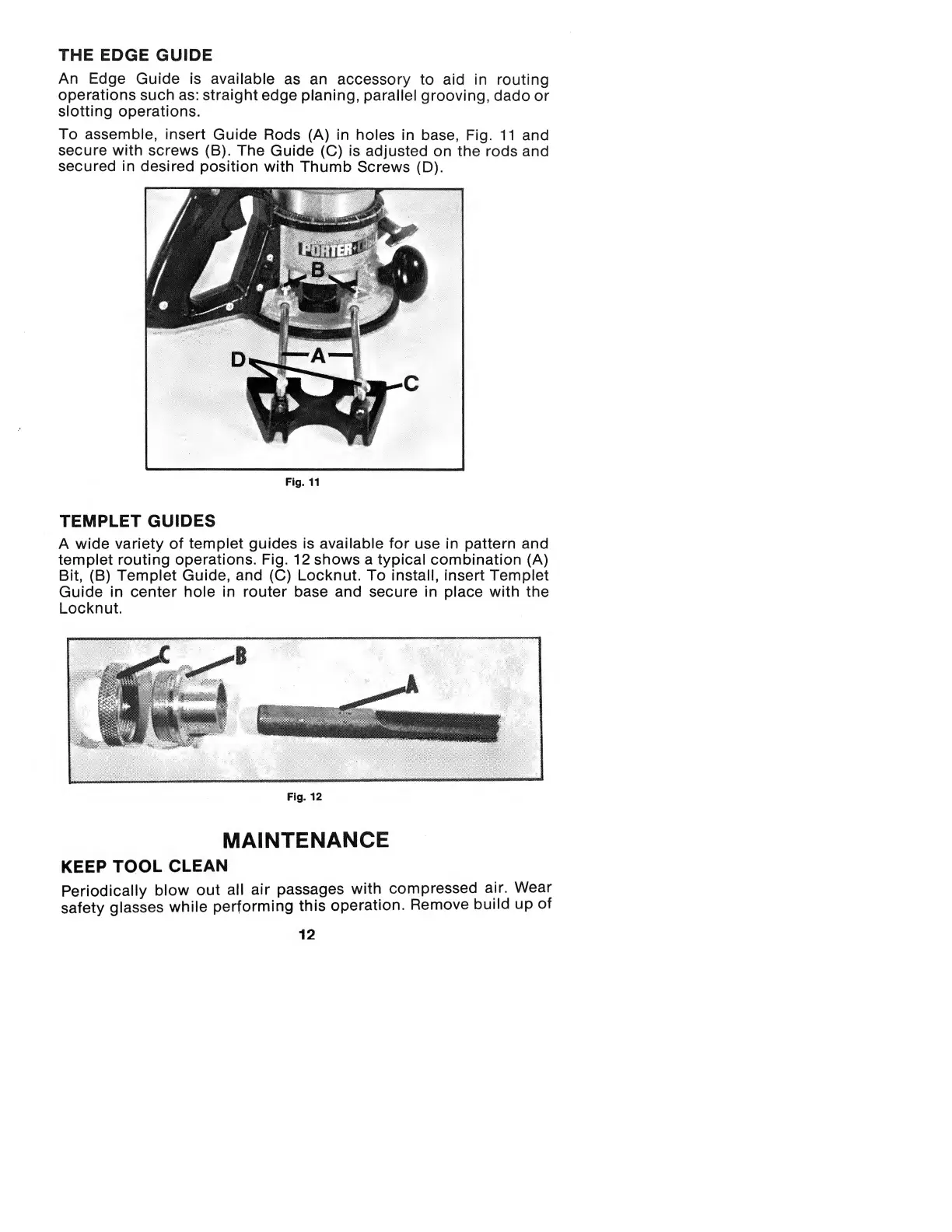

An Edge Guide is available as an accessory to aid in routing
operations such as: straight edge planing, parallel grooving, dado or
slotting operations.
To assemble, insert Guide Rods (A) in holes in base, Fig. 11 and
secure with screws (B). The Guide (C) is adjusted on the rods and
secured in desired position with Thumb Screws (D).
Fig. 11
TEMPLET GUIDES
A wide variety of templet guides is available for use in pattern and
templet routing operations. Fig. 12 shows a typical combination (A)
Bit, (B) Templet Guide, and (C) Locknut. To install, insert Templet
Guide in center hole in router base and secure in place with the
Locknut.
Fig. 12
MAINTENANCE
KEEP TOOL CLEAN
Periodically blow out all air passages with compressed air. Wear
safety glasses while performing this operation. Remove build up of
12
