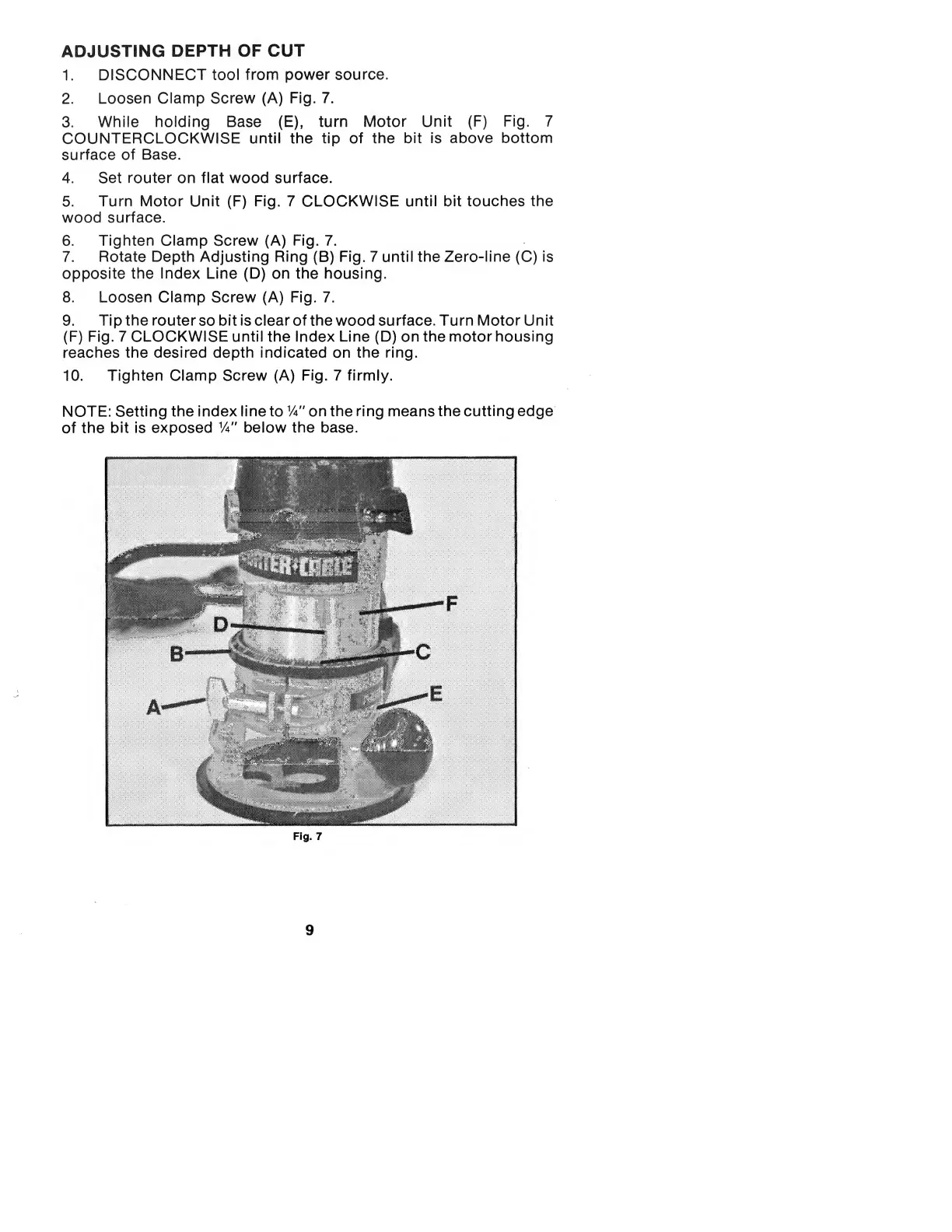

ADJUSTING DEPTH OF CUT
1. DISCONNECT tool from power source.
2. Loosen Clamp Screw (A) Fig. 7.
3. While holding Base (E), turn Motor Unit (F) Fig. 7
COUNTERCLOCKWISE until the tip of the bit is above bottom
surface of Base.
4. Set router on flat wood surface.
5. Turn Motor Unit (F) Fig. 7 CLOCKWISE until bit touches the
wood surface.
6. Tighten Clamp Screw (A) Fig. 7.
7. Rotate Depth Adjusting Ring (B) Fig. 7 until the Zero-line (C) is
opposite the Index Line (D) on the housing.
8. Loosen Clamp Screw (A) Fig. 7.
9. Tip the router so bit is clear of the wood surface. Turn Motor Unit
(F) Fig. 7 CLOCKWISE until the Index Line (D) on the motor housing
reaches the desired depth indicated on the ring.
10. Tighten Clamp Screw (A) Fig. 7 firmly.
NOTE: Setting the index line to Vi" on the ring means the cutting edge
of the bit is exposed Vi" below the base.
Fig. 7
