4.
Lay
Motor
Unit
on
its
side
on
bench
with
the
collet
pointing
AWAY
from
you.
5.
Place
one
wrench
on
flats
on
Chuck
with
the
opposite
end
of
the
wrench
resting
on
the
bench
to
your
left,
Fig.
3.
6.
Place
other
wrench
on
Collet
and
tighten
COUNTERCLOCKWISE
as
shown
in
Fig.
3.
TIGHTEN
FIRMLY.
7.
To
remove
the
bit,
reverse
the
foregoing
procedure.
AVOID
POSSIBLE
DAMAGE
TO
COLLET.
NEVER
TIGHTEN
COLLET
WITHOUT
BIT.
ASSEMBLING
THE
MOTOR
IN
THE
ROUTER
BASE
EQUIPPED
WITH
TWO
KNOBS
1.
DISCONNECT
motor
from
power
source.
2.
Loosen
the
Clamp
Screw
(A)
Fig.
4
to
allow
the
Power
Unit
to
be
set
in
the
Base
Unit.
3.
Insert
Motor
Unit
into
base
aligning
lower
pin
(B)
with
groove
in
base.
4.
Rotate
Motor
Unit
CLOCKWISE
into
base
until
upper
guide
pins
are
rigidly
set
in
the
groove
of
the
base.
5.
Tighten
Clamp
Screw
firmly.

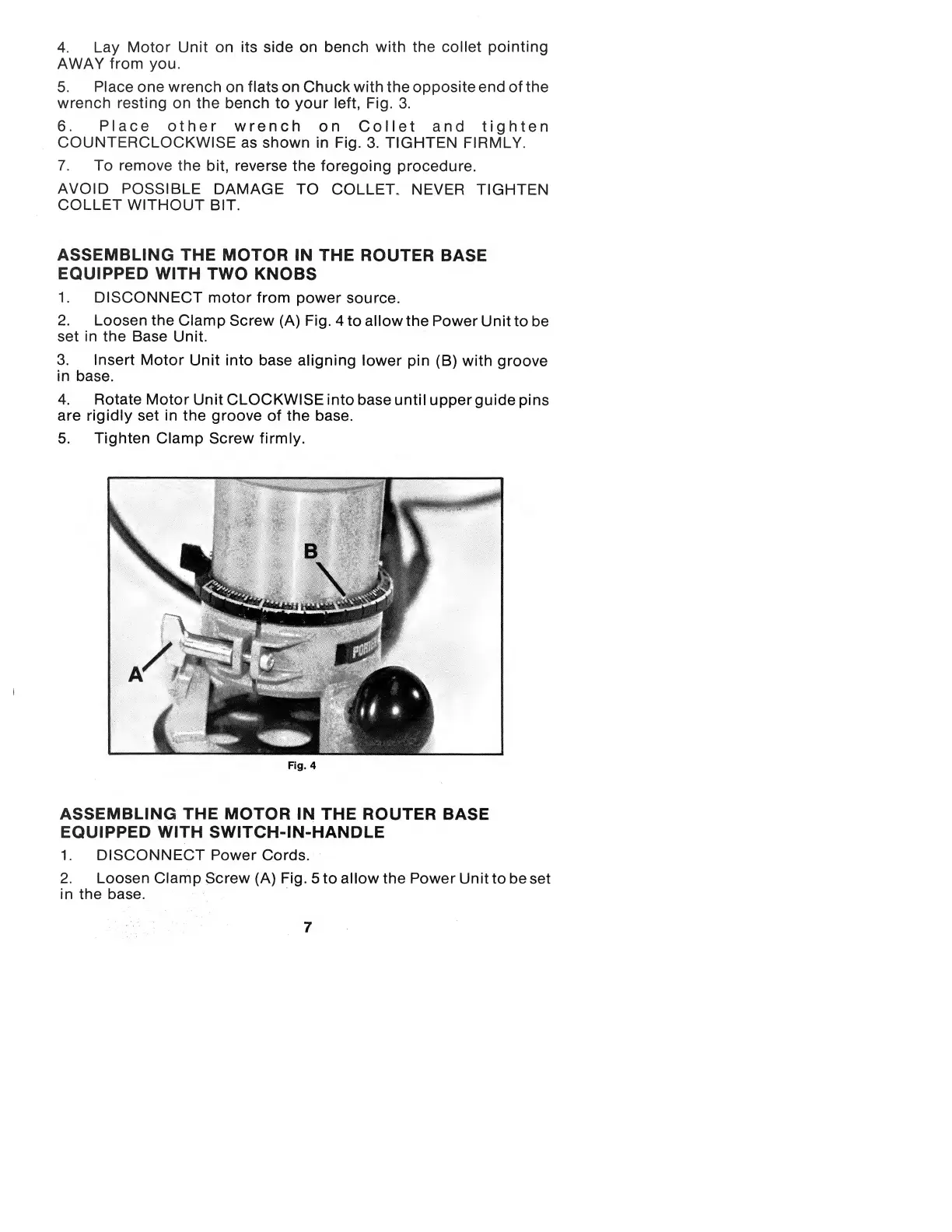

Fig.
4
ASSEMBLING
THE
MOTOR
IN
THE
ROUTER
BASE
EQUIPPED
WITH
SWITCH-IN-HANDLE
1.
DISCONNECT
Power
Cords.
2.
Loosen
Clamp
Screw
(A)
Fig.
5
to
allow
the
Power
Unit
to
be
set
in
the
base.
7
