13
Accuracy:
+/- 1/4" @ 100’
Range (laser visibility):
Up to 100’
Leveling mode:
Self-leveling
Leveling range
forward to backward: +/- 6 degrees
side to side: +/- 4 degrees
Out-of-level indicator:
Fast blinking of all 3 beams
Power supply:
3 x 1.5V “AA” batteries
(not included)
Low battery indicator:
Slow blinking of all 3 beams
(8 to 10 hours of use left)
Laser output:
635nm, less than 1mW
Laser classification:
Class II
Tripod Mount: 1/4"-20 and 5/8"-11
Weight (including batteries):
250 grams/aprox. 0.55lb.
Made In China
10. Product specifications

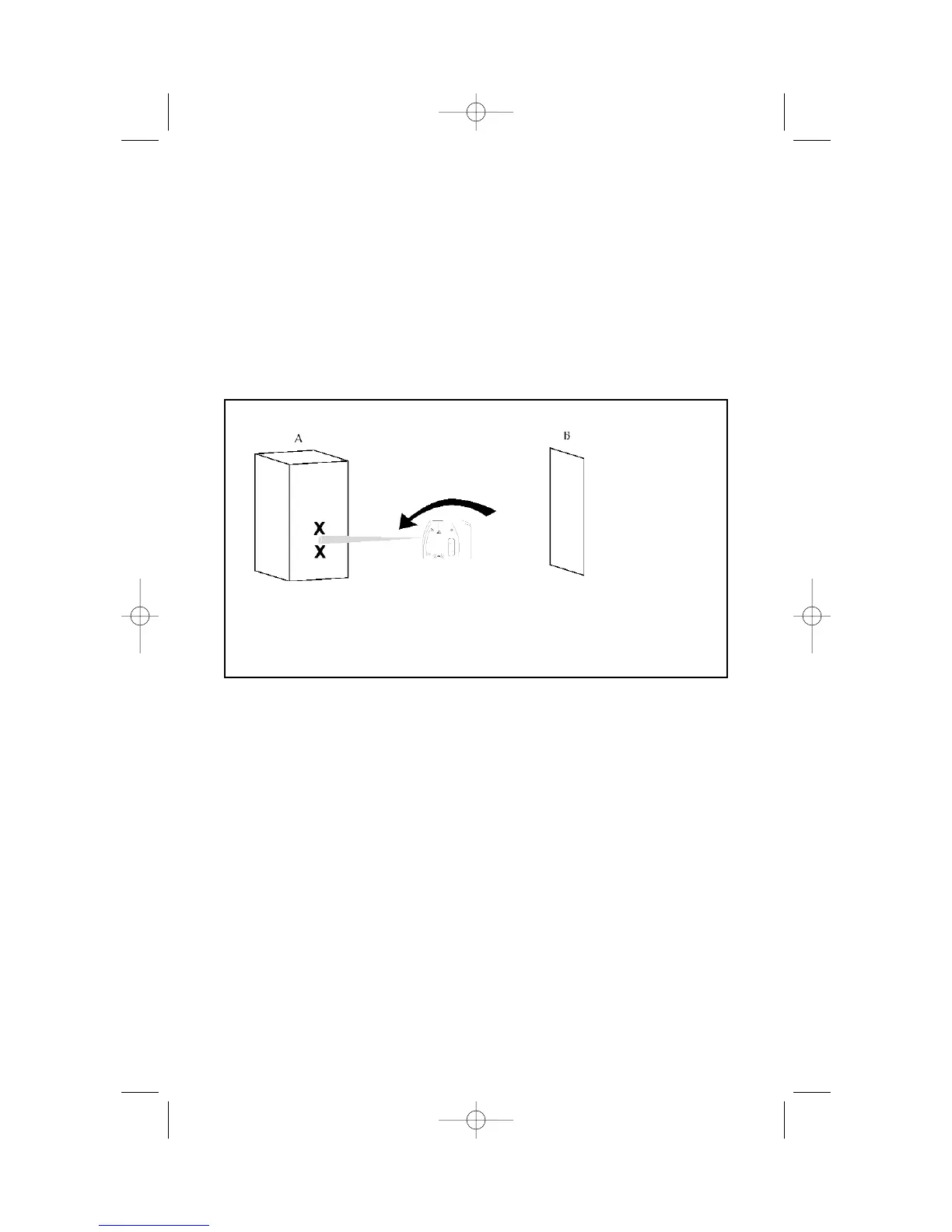

17. The goal of the next step is to position the side beam at the same height
as the calibrated front beam.
18. Insert the Allen key calibration tool into the side calibration port. Locate
the calibration screw and rotate it in a clockwise direction to raise the
beam or in the counter-clockwise direction to lower the beam.
19. Turn the laser square on and check the height of the side beam again.
20. Repeat steps 16-19 until the side beam matches the height of the
calibrated front beam and proceed to the next step.
21. Reinstall the two calibration plugs back on the laser square.
22. Calibration is complete
