CLEARING A JAMMED FASTENER
Disconnect tool from air supply.

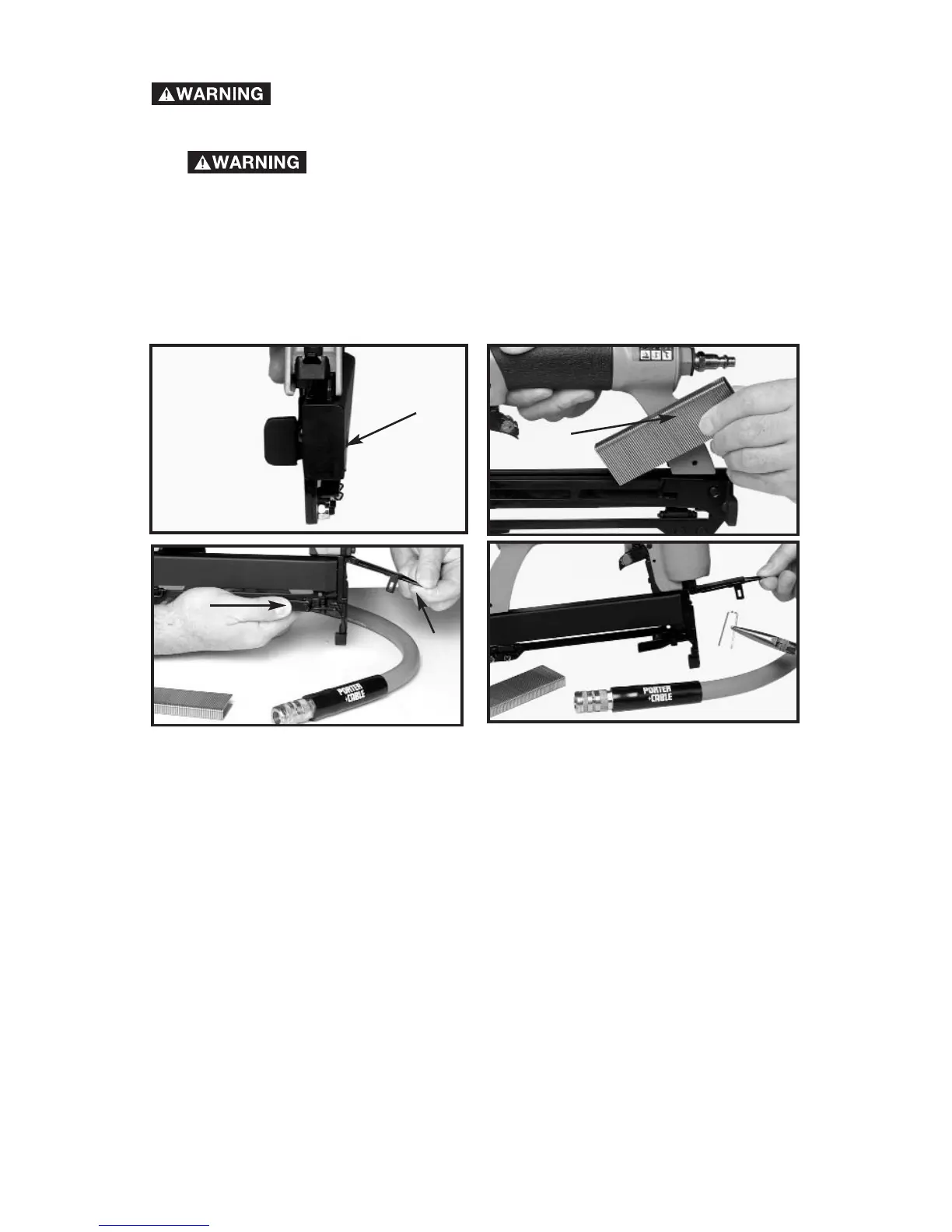

1. Hold open spring loaded magazine cover (A) Fig. 28 and remove any
remaining fasteners (B) Fig. 29.
Remove fasteners from tool before opening the
fastener guide plate. Fasteners are under pressure and may shoot
out of magazine which could cause injury.
2. Depress the quick release latch (A) Fig. 30 and open the fastener guide
plate (B).
3. Remove the jammed fastener (see Fig. 31).
4. Depress the quick release latch, close the fastener guide plate, and
release the latch.
Fig. 29
A
B
Fig. 28
Fig. 31
Fig. 30
A
B
