Porter-Cable PC13CSL - Functional Description of Saw; Component Identification

7
For your
convenience
and safety, the
following labels
are on your
laser.
3
1
2
4
5
6
7
8
A

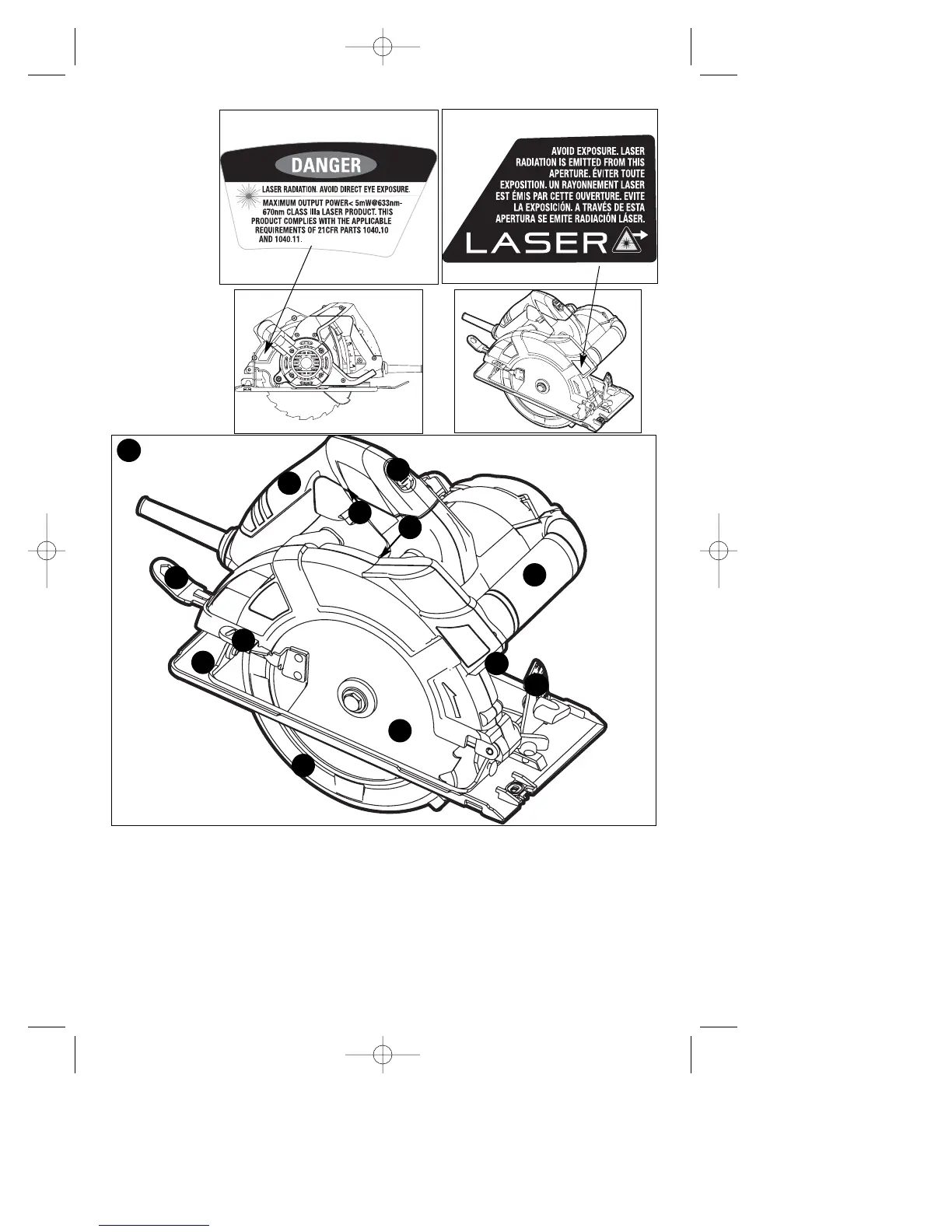

FUNCTIONAL DESCRIPTION
Figure A
1. On/off switch
2. Laser on/off switch
3. Main handle
4. Secondary handle
5. Spindle lock button (PC15CSL only)
6. Shoe
7. Saw blade
8. Saw blade guard
8a. Blade guard retracting lever
9. Laser
10. Saw blade wrench
11. Bevel adjustment knob
Rip fence not shown (PC15CSL only)
9
10
11
8A
Pour plus de
commodité et
de sécurité, les
étiquettes
suivantes sont
apposées sur le
laser.
Para su
comodidad y
seguridad, el
láser incluye las
siguientes
etiquetas.
