TO USE THE LASER LINE
• Mark the line that you intend to cut on the workpiece.
• Adjust the depth and angle of cut as required.
• Push the laser on/off switch (3) to the “ON” position and project the laser beam.
• Push in on the lock-off button (2) and depress the saw on/off switch (1) and allow the
blade to reach maximum speed.
• Place the saw shoe on the workpiece. Align the laser line with the mark on the
workpiece and slowly push the saw forward keeping the laser line on the mark.
• Upon completion of the cut, release the trigger and allow the saw blade to come to a
complete stop before switching off the laser.
SAWING
To reduce the risk of serious personal injury, always hold the tool with
both hands.
• Let the blade run freely for a few seconds before starting the cut.
• Apply only a gentle pressure to the tool while performing the cut.
• Work with the shoe pressed against the workpiece.

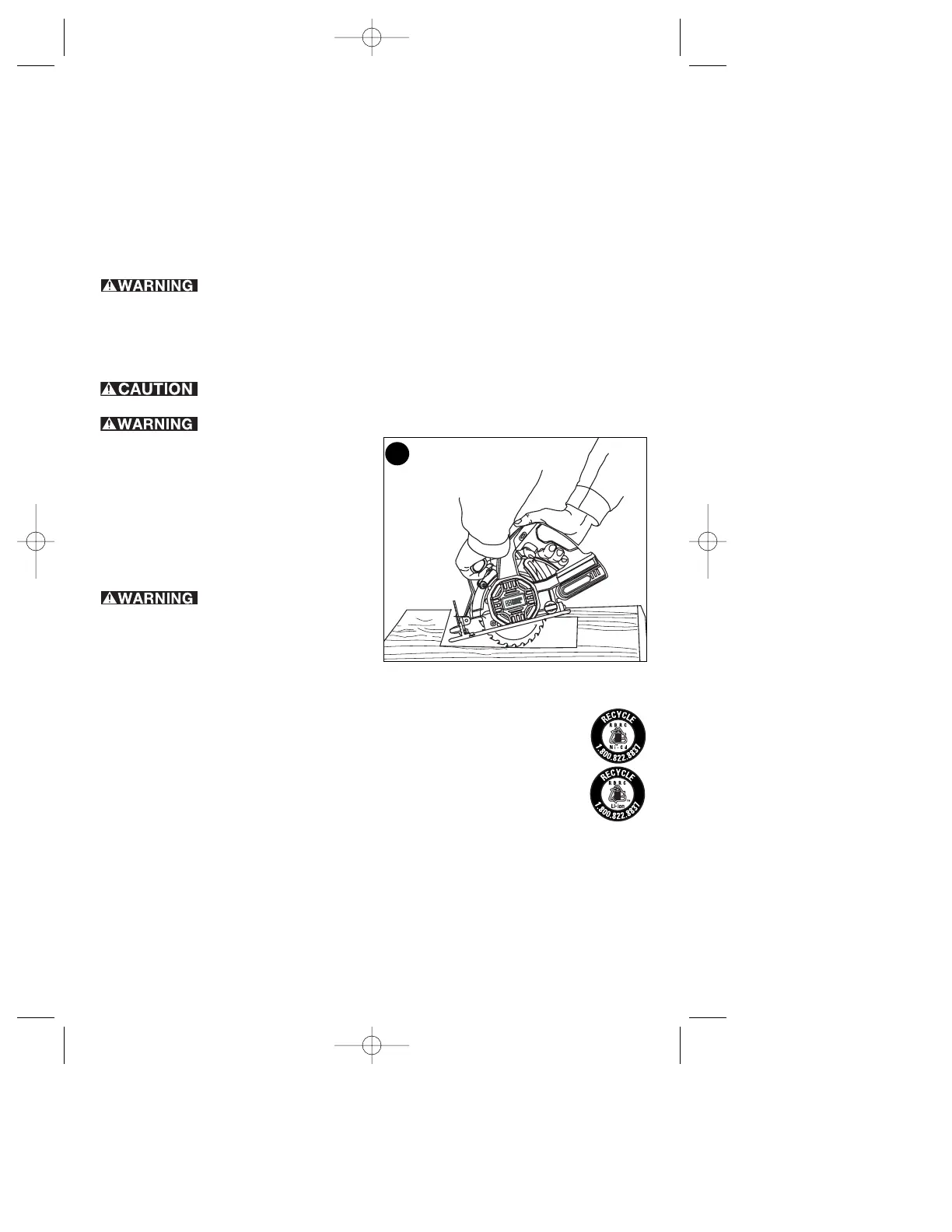

POCKET CUTTING - FIGURE P
Never move the saw backwards when pocket cutting. This may cause
the unit to raise up off the work surface which could cause injury.
Laceration Hazard. Never tie the blade guard in a raised position.
Pocket cutting is used to cut a hole in a piece of
material without cutting from the side.
• Measure and mark work.
• Tilt saw forward and rest front of the shoe
on material to be cut. Align so that cut will
begin at the back of the drawn rectangle.
• Using the retracting lever, retract blade
guard to an upward position, with the blade
just clearing the material, start motor and
gradually lower the saw into the material.
Laceration Hazard. As
blade starts cutting the material, release the
retracting lever immediately.
• When the shoe rests flat on the material
being cut, complete the cut in forward
direction.
• Allow the blade to come to a complete stop before lifting saw from material.
• When starting each new cut, repeat the above steps.
THE RBRC™ SEAL
The RBRC™ (Rechargeable Battery Recycling Corporation) Seal on the
LI-ION or NI-CD battery (or battery pack) indicates that the costs to recycle the
battery (or battery pack) at the end of its useful life have already been paid by
PORTER-CABLE.
RBRC™ in cooperation with PORTER-CABLE and other battery users, has
established programs in the United States to facilitate the collection of spent LI-
ION or NI-CD batteries. Help protect our environment and conserve natural
resources by returning the spent LI-ION or NI-CD battery to an authorized PORTER-
CABLE service center or to your local retailer for recycling. You may also contact your
local recycling center for information on where to drop off the spent battery.
RBRC™ is a registered trademark of the Rechargeable Battery Recycling Corporation.
