8
3
1
2
4
5
6
7
8
A

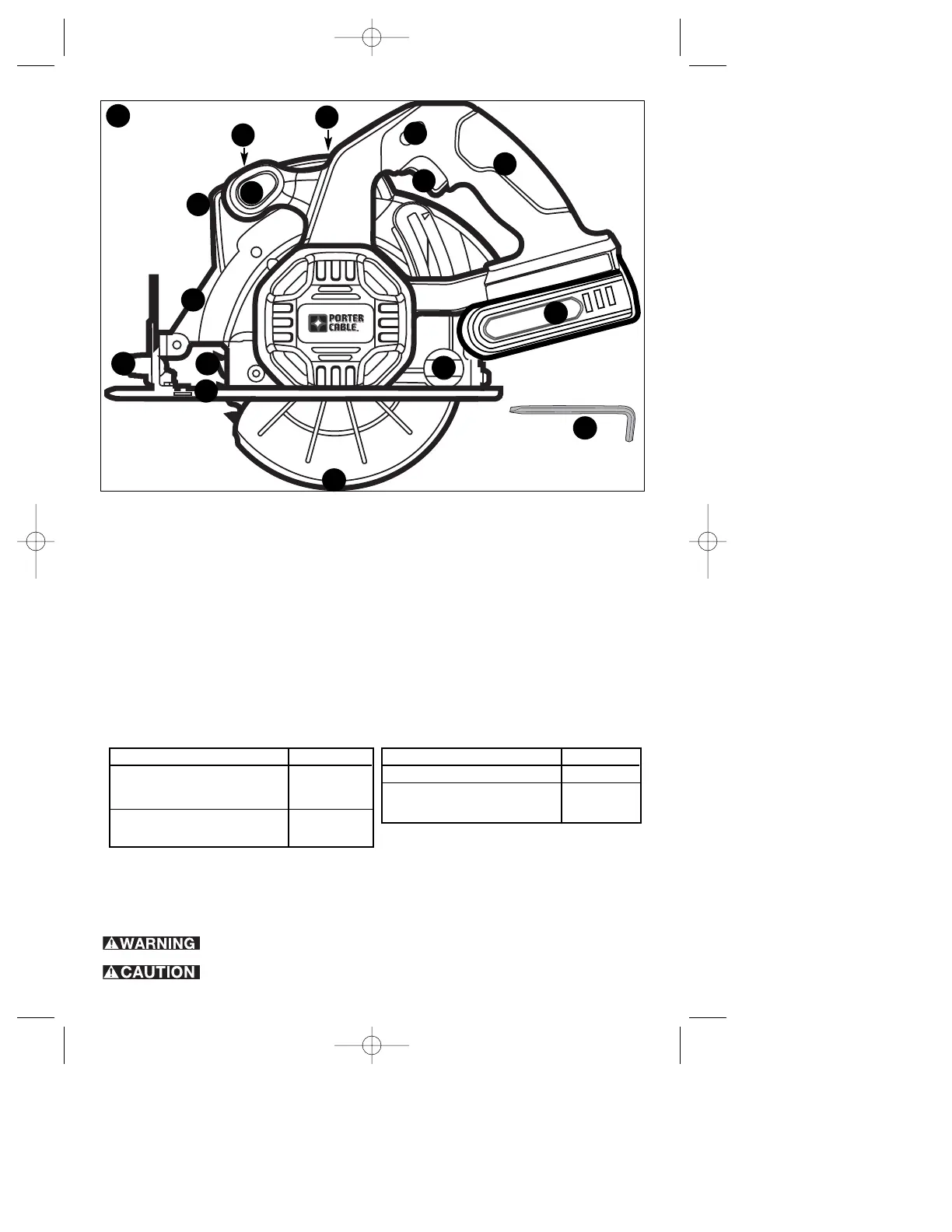

FUNCTIONAL DESCRIPTION
Figure A
1. On/off switch
2. Lock-off button
3. Laser on/off switch (PC186CSL)
4. Laser adjustment tabs (PC186CSL)
5. Laser (PC186CSL)
6. Main handle
7. Secondary handle
8. Shoe
9. Upper guard
10. Saw blade
11. Saw blade guard
12. Wrench
13. Bevel adjustment knob
14. Depth adjustment knob
15. Battery (not included)
16. Spindle lock (not shown)
9
10
11
13
14
15
12
IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGERS
SAVE THESE INSTRUCTIONS: This manual contains important safety instructions for
battery chargers.
• Before using charger, read all instructions and cautionary markings on charger, battery
pack, and product using battery pack.
Shock hazard. Do not allow any liquid to get inside charger.
Burn hazard. To reduce the risk of injury, charge only designated
LI-ION Battery Packs and Chargers
Battery: LI-ION 18V
Charger: LI-ION
PC18BL
PC18BLX
PC18BLEX
PCLMVC
PCXMVC
Description Cat. #
NI-CD Battery Packs and Chargers
This product can accept any of the batteries and chargers listed in the chart below.
Battery: NI-CD 18V
Charger: NI-CD
PC18B
PCMVC
PCXMVC
Description Cat. #
