5
Extension Cord
When using an extension cord, be sure to use one heavy enough to carry the current
your product will draw. An undersized cord will cause a drop in line voltage resulting in
loss of power and overheating. The following table shows the correct size to use
depending on cord length and nameplate ampere rating. If in doubt, use the next
heavier gage. The smaller the gauge number, the heavier the cord.
SAVE THESE INSTRUCTIONS
Minimum Gauge for Cord Sets
Volts Total Length of Cord in Feet
120V 0-25 26-50 51-100 101-150
(0-7,6m) (7,6-15,2m) (15,2-30,4m) (30,4-45,7m)
240V 0-50 51-100 101-200 201-300
(0-15,2m) (15,2-30,4m)(30,4-60,9m) (60,9-91,4m)
Ampere Rating
More Not more American Wire Gauge
Than Than
0-6 18 16 16 14
6-10 18 16 14 12
10 - 12 16 16 14 12
12 - 16 14 12 Not Recommended

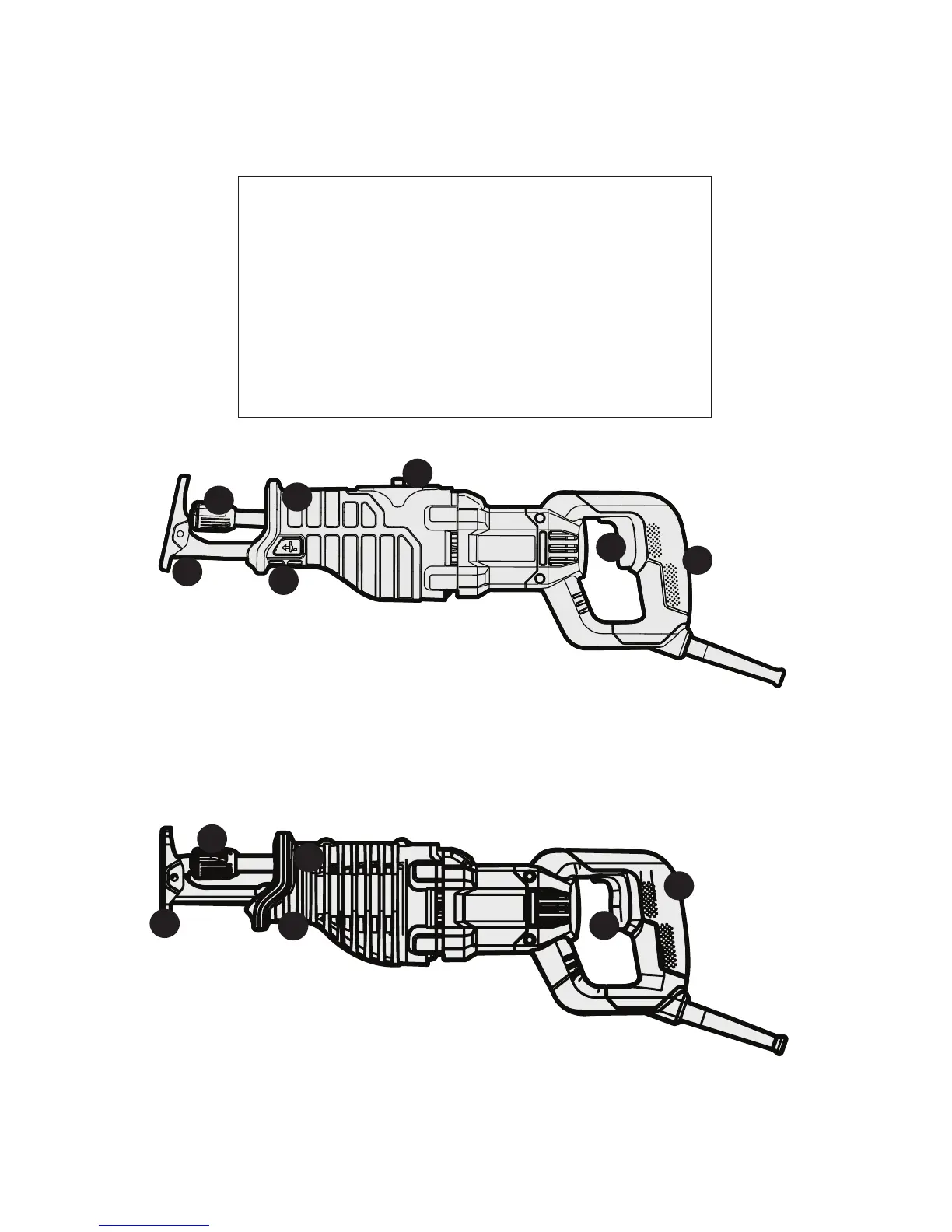

Functional Description (PC85TRSO)
A. Trigger Switch E. Secondary Gripping Handle
B. Main Handle F. Blade Clamp
C. Orbital Action Selector G. Adjustable Shoe
D. Adjustable Shoe Button
A
E
D
C
B
G
F
Functional Description (PC75TRS)
A. Trigger Switch D. Adjustable Shoe Screws
B. Main Handle E. Adjustable Shoe
C. Secondary Gripping Handle F. Blade Clamp
A
E
D
C
B
F
PC75TRS
PC85TRSO
