Porter-Cable PCB370SS - Stand Parts and Schematic

26
I.D. NO. DESCRIPTION SIZE QTY
0J4P FLAT WASHER
φ8*16-1.4
4
0JPR HEX. HD. BOLT M8*1.25-40 4
0KJ7 CAP HD. SQ. NECK BOLT M8*1.25-16 16
0KRR SERRATED TOOTHED HEXAGON FLANGE NUT M8*1.25 T=7.5 20
2LBF SLEEVE 4
2LBL LONG UPPER SUPPORT #6 2
2LBM SHORT UPPER SUPPORT #6 2
2LBN LEG #6 4
2LBP LONG BOTTOM SUPPORT BRACKET #6 2
2LBQ SHORT BOTTOM SUPPORT BRACKET #6 2
2LD2 STAND ASS’Y 1
2LQT CUSHION 4
2YPN WARNING LABEL 1
HARDWARE BAG
2LD3 HARDWARE BAG ASS’Y 1

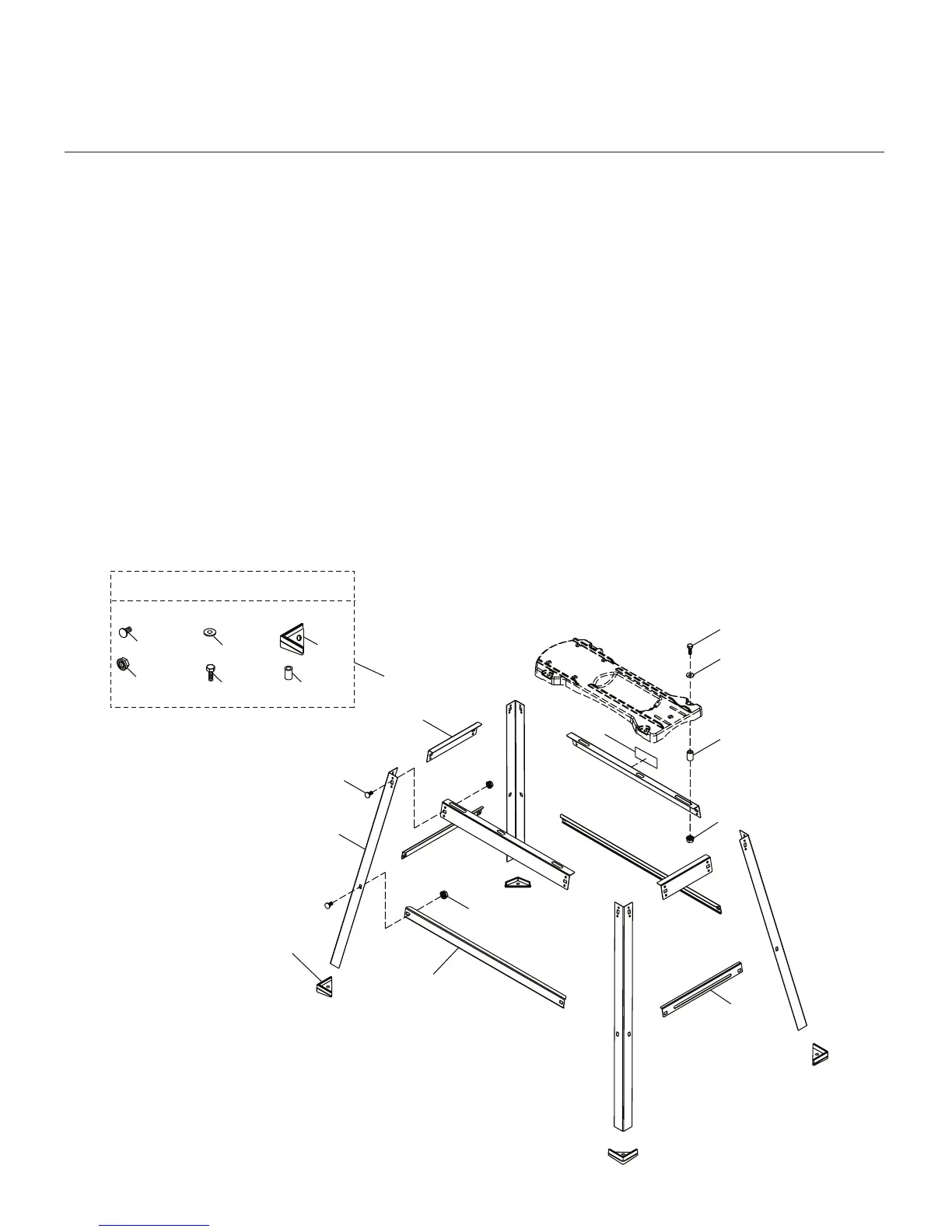

16 IN. (406 MM) SCROLL SAW
PARTS LIST & SCHEMATIC FOR STAND
2LBM
2
2LBN
4
0KJ7
16
0KRR
20
2LBF
4
0J4P
4
0JPR
4
2LBL
2
2LBQ
2
2LQT
4
2LBP
2
2YPN
2LD3
I. Hardware Bag
0KRR
20
0KJ7
16
0J4P
4
0JPR
4
2LBF
4
2LQT
4
