Porter-Cable PXCM301 - Parts Drawings and Parts Lists

20- ENG

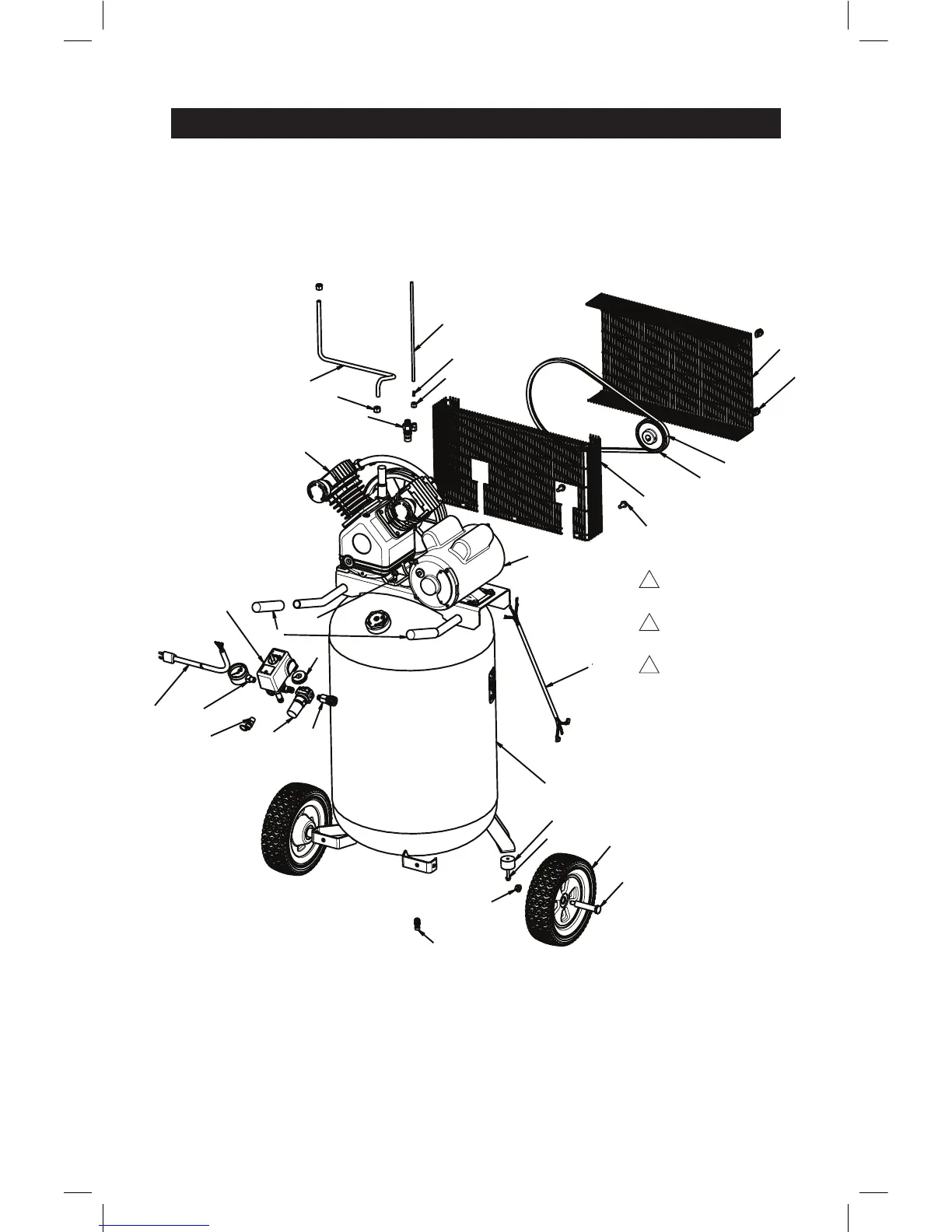

PARTS DRAWING
2
6
5
1
3
4
7
33
28
27
34
26
30
31
32
22
24
23
9
8
16 21
35
18
20
36
15
19
12
25
13
Torque to 55-100 in/lbs
Torque to 35-65 in/lbs
Torque to 15-20 lb-ft/lbs
NOTES:
24
32
36
