POSEIDON JETSTREAM Mk3 - Page 11

SERVICE MANUAL
Page 10
Service manual Jetstream Mk3 - V. 1.0 - 11-02-08 Approved by: JN
JETSTREAM Mk3

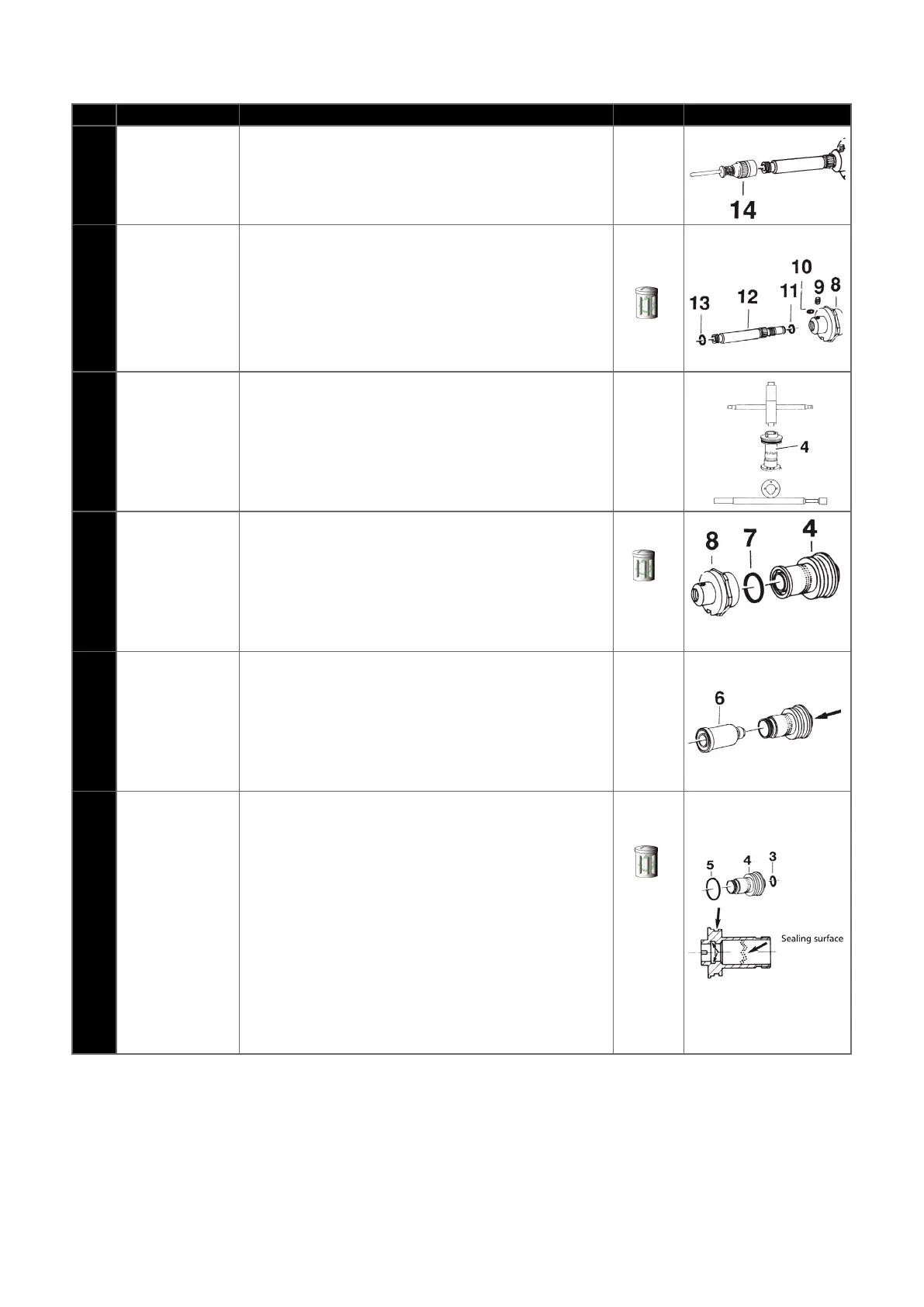

Step Parts Tools/Instructions Replace Picture
8
2786
Remove the servo valve (14).
9
2875
2876
2839
1896
2787
Unscrew the stop screw (9) and remove the
valve tube (12). Remove the o-rings (11) (13)
with an o-ring remover.Make sure the sealing
surfaces are not damaged.
Remove the rubber plate (10).
10
2857
Place the valve housing in the
tool. Unscrew the valve housing
(4) with a special spanner.
11
1233
Remove the o-ring (7) with an oring remover.
Make sure the sealing surfaces are not
damaged.
12
3440
Remove the valve insert.
13
2856
1145
Remove the o-rings (5) (3) with an o-ring
remover.Make sure the sealing surfaces are not
damaged.

