SERVICE MANUAL
Page 19
Service manual Jetstream Mk3 - V. 1.0 - 11-02-08 Approved by: JN
JETSTREAM Mk3
8. ASSEMBLY INSTRUCTIONS - FIRST STAGE
Lubricants shall be used sparingly. Excessive quantities of lubricant can trap particulate
and other contaminants developing apotential fire hazard.
Parts marked with the
symbol are parts that must be replaced at every service. New
parts should be stored in it’s original packing until it is time for assembly.

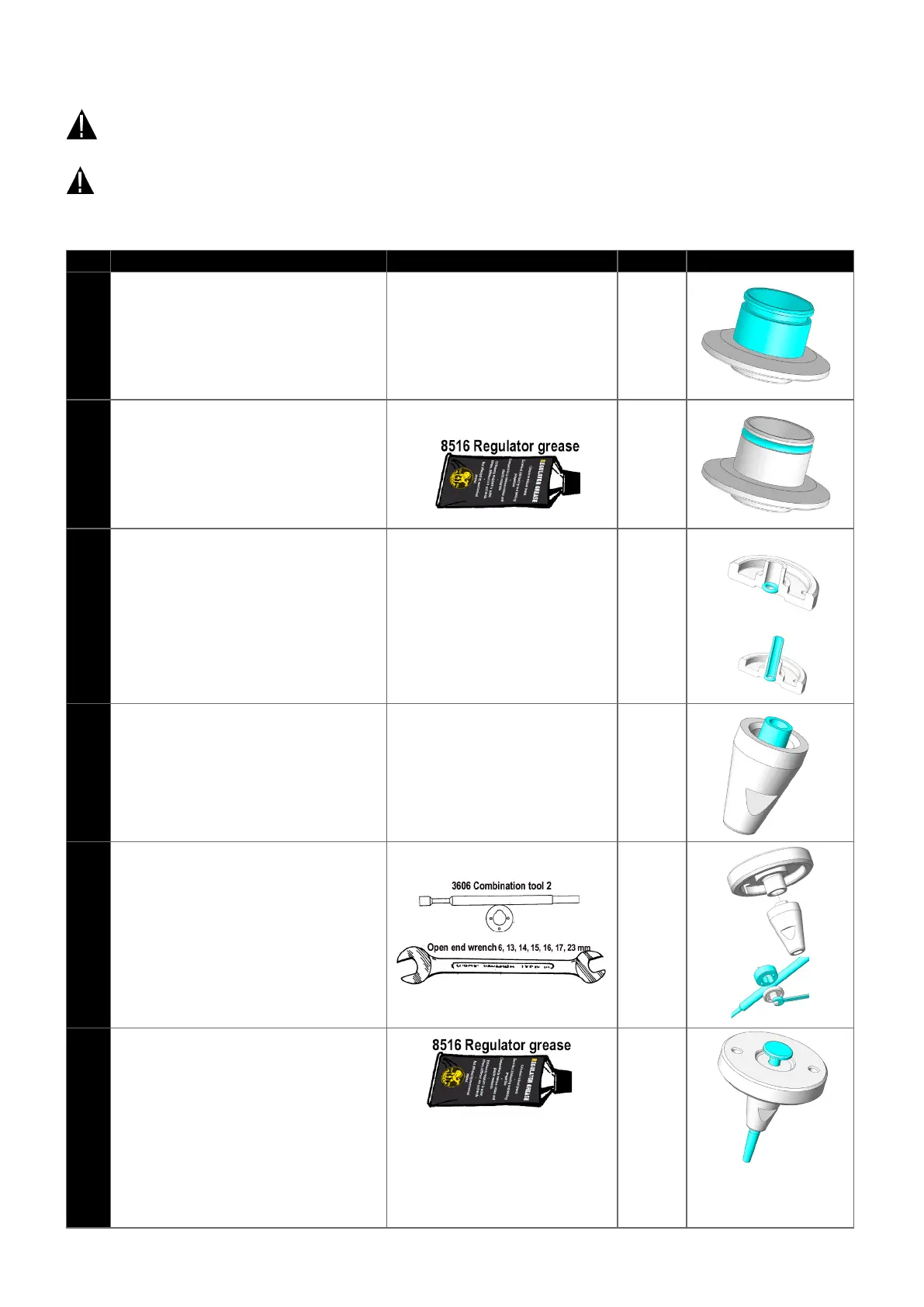

Step Parts Tools/Instructions Replace Picture
1
4758 Zytel valve seat Xstream
2
0015-059 O-ring
3
0015-012 O-ring
Use bushing 4563 to install
o-ring
4
4763 Pin bushing 1.stage
Xstream
Make sure fully to the
bottom
5
4777 Lower pin guide
Xstream
3 +/- 1 Nm
6
4759 Actuating pin,
Xstream
Lubricate pin at top section
only. Leaving lower end
dry. Wipe off excessive
grease under the hat.
To Next Page
