Service manual Jetstream Mk3 - V. 1.0 - 11-02-08 Approved by: JN
JETSTREAM Mk3

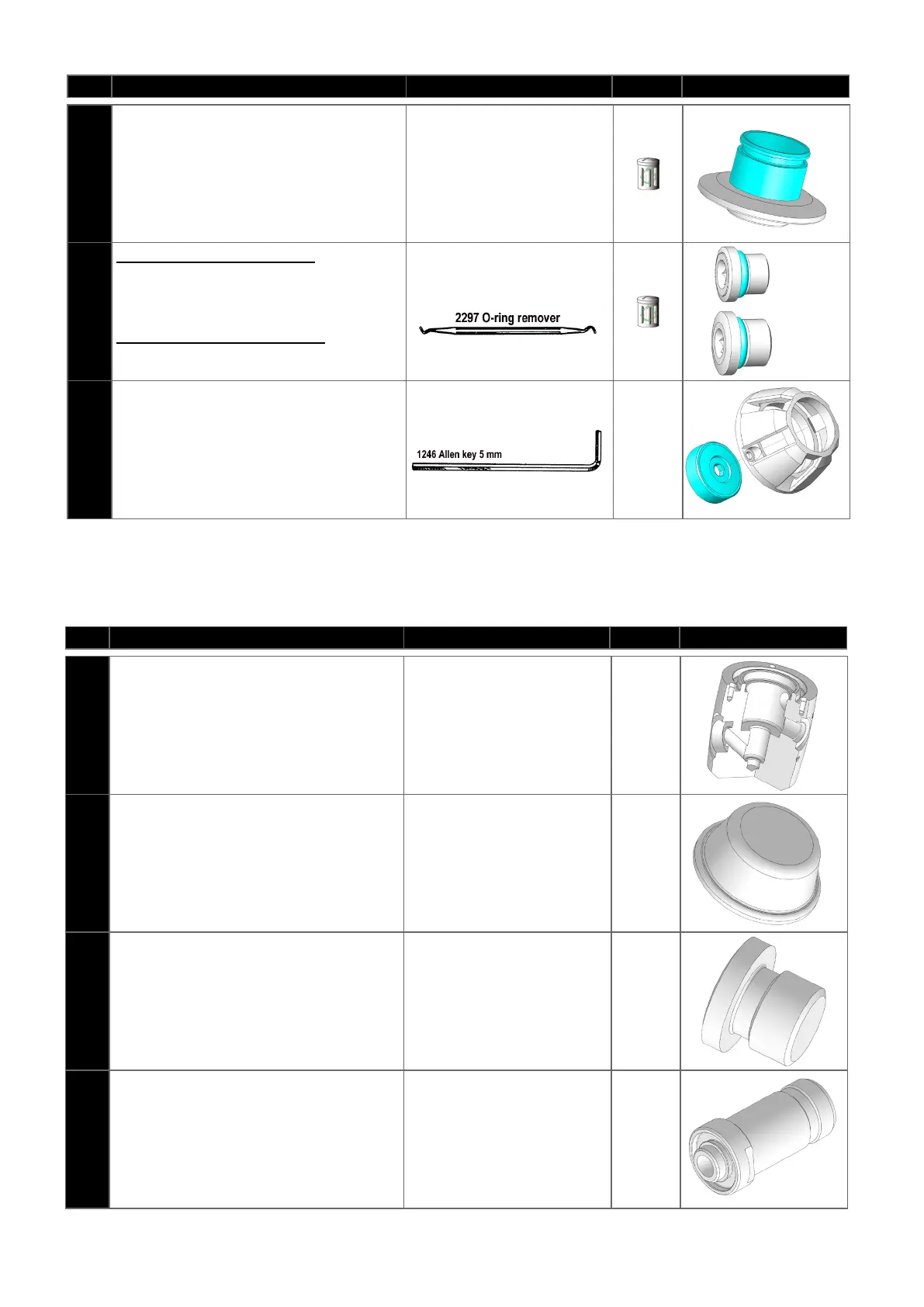

Step Parts Tools/Instructions Replace Picture
25
4758 Zytel valve seat Xstream
26
On blindscrew UNF 3/8”
0010-353 O-ring
On blindscrew UNF 7/16”
0010-354 O-ring
27
0000-141 Adjusting screw
Note that the adjustment screw
can only be un-screwed inwards!
Inspection
Step Parts Tools/Instructions Replace Picture
1
6010-233 Housing 1.stage 90
Xstream
1. Check sealing
surfaces
2
4564 Roll.diaphragm 1.stage
Xstream
1. Check for wear and
tear
3
2680 Blindscrew UNF7/16
2679 Blindscrew UNF3/8,
1. Check O-ring sealing
surfaces
4
4778 Conn. stem 1.stage
Xstream
1. Check O-ring sealing
surfaces
