Service manual Jetstream Mk3 - V. 1.0 - 11-02-08 Approved by: JN
JETSTREAM Mk3

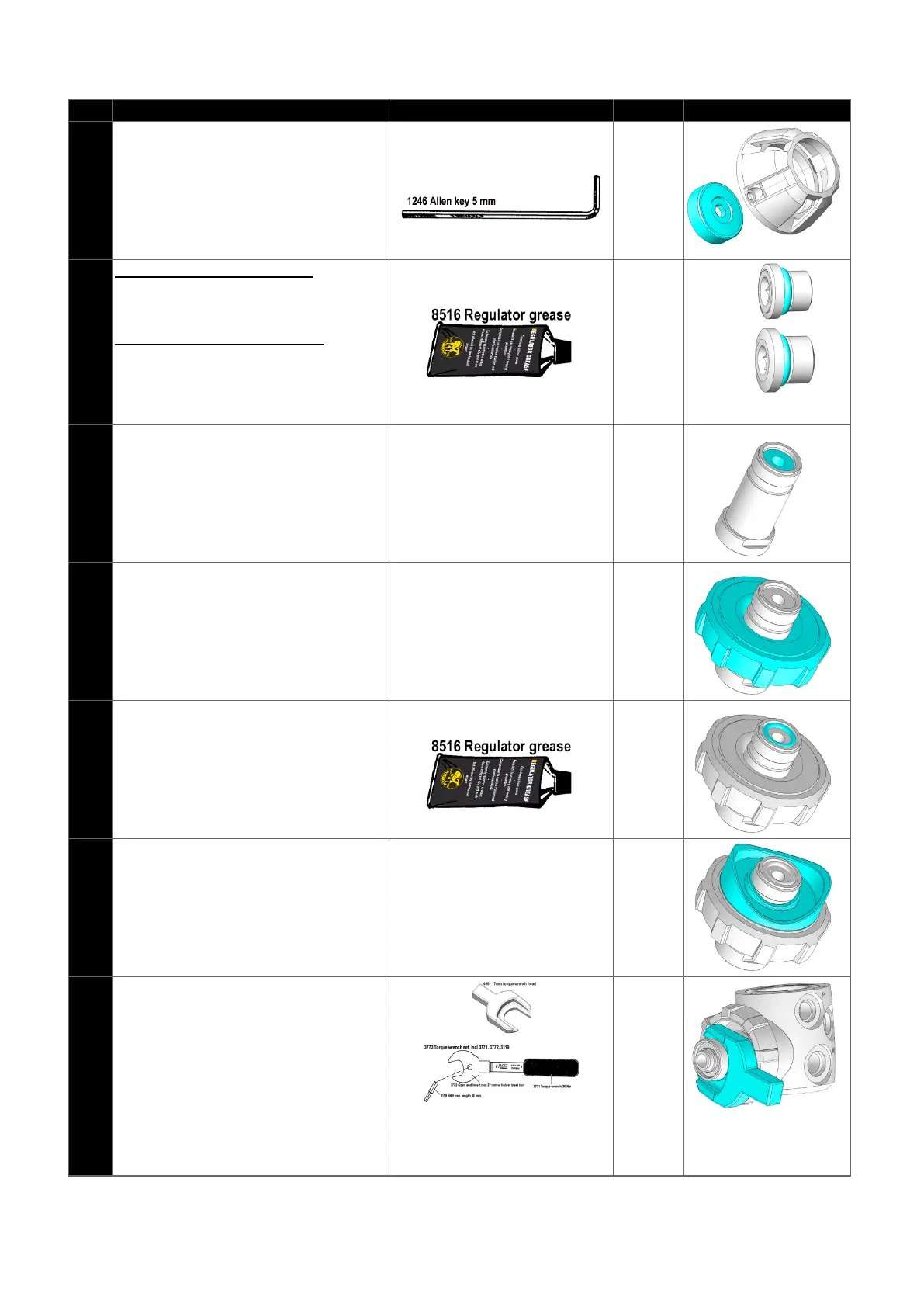

Step Parts Tools/Instructions Replace Picture
7
0000-141 Adjusting screw
8
On blindscrew UNF 3/8”
0010-353 O-ring, 5 pcs
On blindscrew UNF 7/16”
0010-354 O-ring, 2 pcs
9
4552 Cup type filter long
10
4576-BK Wheel G5/8” black
11
0010-354 O-ring
12
4576-BK Line protector, black
13
4778 Conn. stem 1.stage 90
Ensure line protector is correctly positioned,
with one slot facing to the bottom of the
housing
Torque setting 30 Nm
To Next Page
