SERVICE MANUAL
Page 15
Service manual Jetstream Mk3 - V. 1.0 - 11-02-08 Approved by: JN
JETSTREAM Mk3

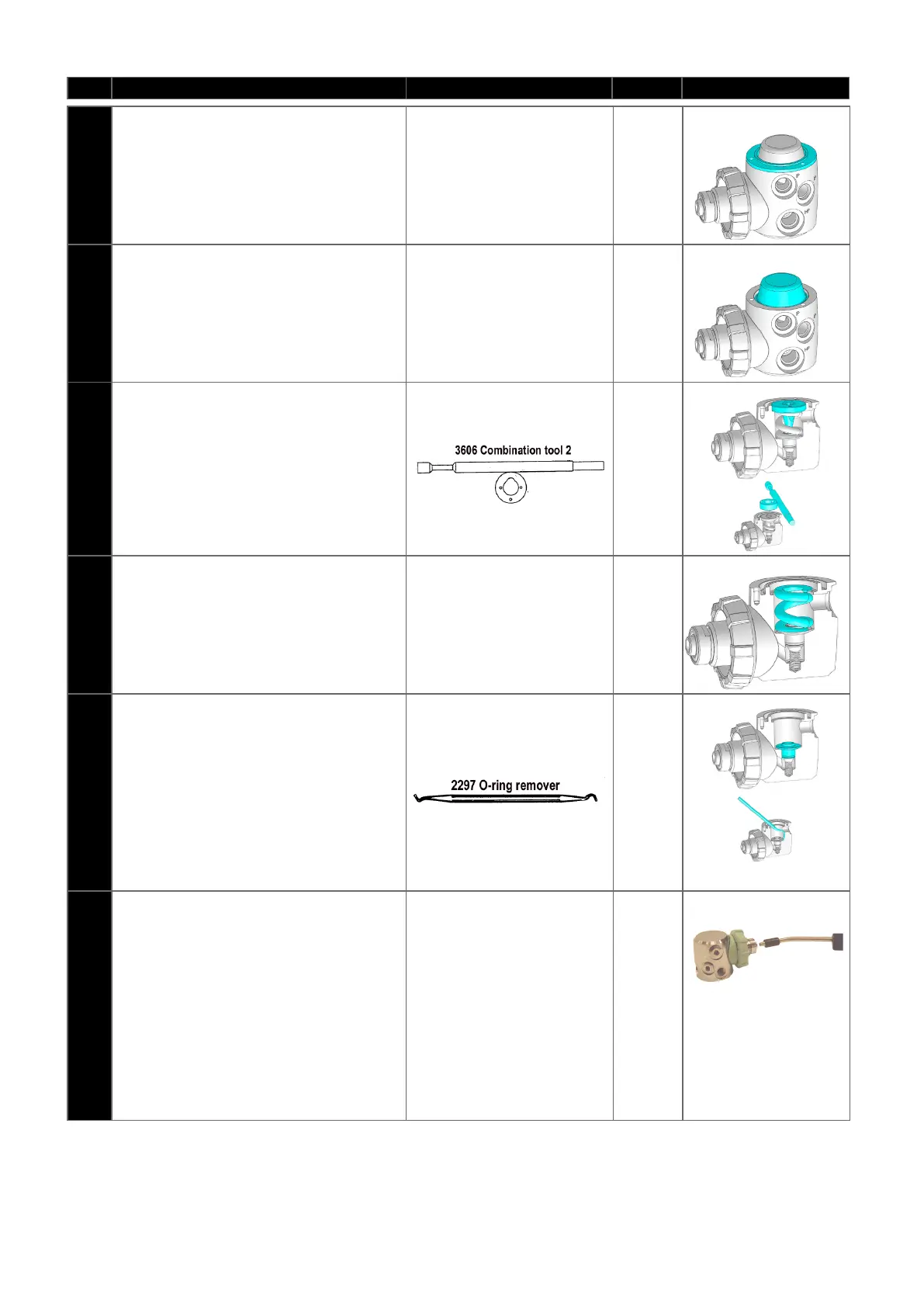

Step Parts Tools/Instructions Replace Picture
6
4570-BK Barrier 1.stage Xstream
black
7
4564 Roll. diaphragm 1.stage
Xstream
Only use fingers. Tools
may puncture the
diaphragm
8
Pin guide assembly
9
4764 Valve seat spring Xstream
10a
4760 Valve seat holder Xstream
4758 Zytel valve seat Xstream
10b
4760 Valve seat holder Xstream
4758 Zytel valve seat Xstream
The seat/seat holder
may also be removed
using compressed air,
as shown in the picture.
