Service manual Jetstream Mk3 - V. 1.0 - 11-02-08 Approved by: JN
JETSTREAM Mk3

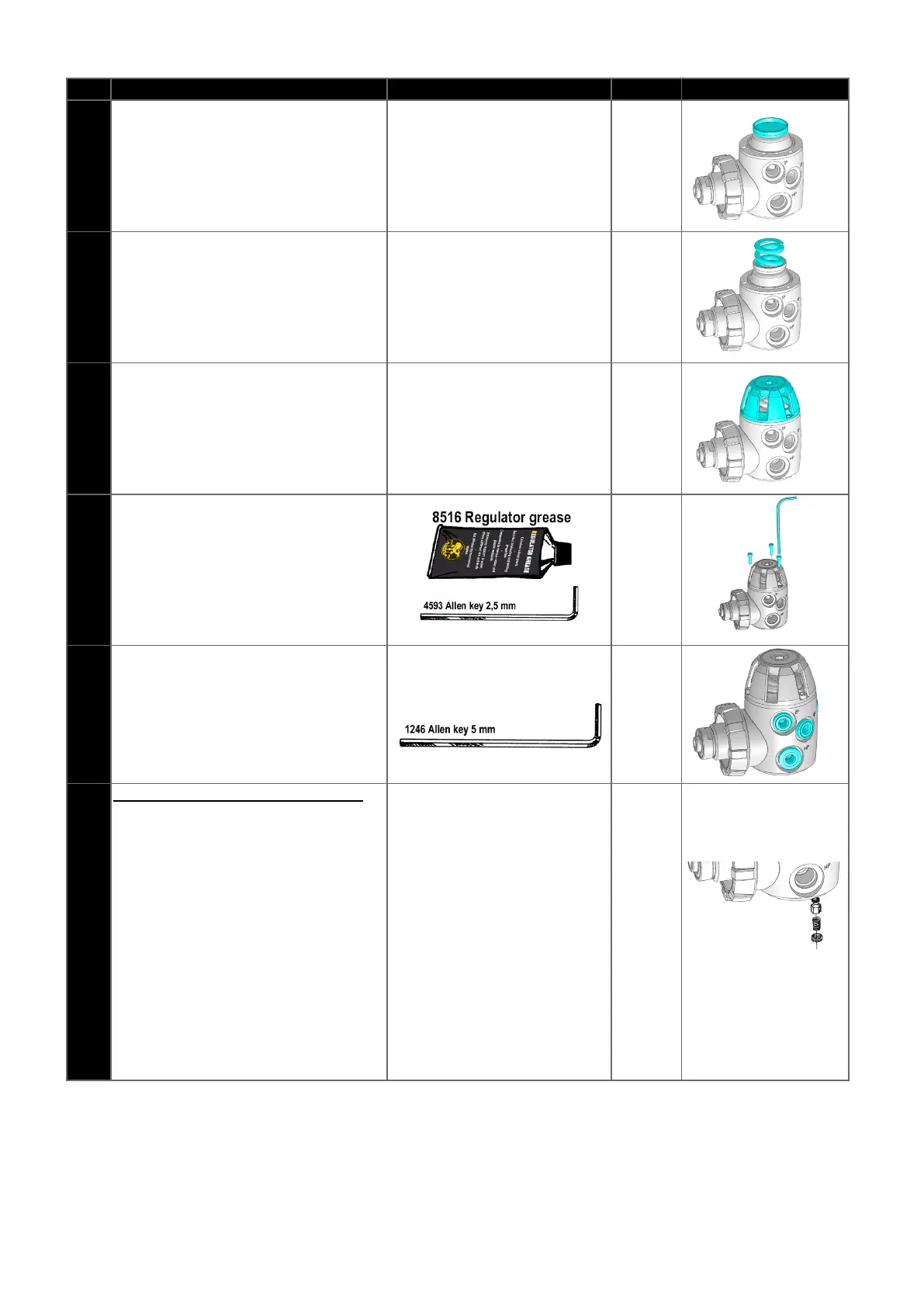

Step Parts Tools/Instructions Replace Picture
22
4565 Pressure plate 1.stage
Xstream
23
4763 Adj. spring 1.stage
Xstream
6
24
0000-140 Cover Xstream first
stage, chrome
25
4568 Screw cover M3x10
Xstream 3 pcs
6 +/- 1 Nm
26
2680 Blindscrew UNF 7/16”
2 pcs
2679 Blindscrew UNF 3/8” 5 pcs
27
Over pressure valve assembly
3726 Valve sealing
3725 Valve piston
1180 Pressure spring
3727 Locking screw
1. Attach the new valve
sealing to the valve piston
and place the valve piston
in the OP valve hole with
the seal towards the
housing.
2. Place the pressure
spring in the valve piston
and tighten the locking
screw with a 4 mm Allen
key.

