ECM5000 - ECM5000M - ECS5000 - ECS5000M - ECS8000 - ECS8000M
Surface mount or Mortice Electromagnetic locks
INSTALLATION MANUAL
2 position.eu.com

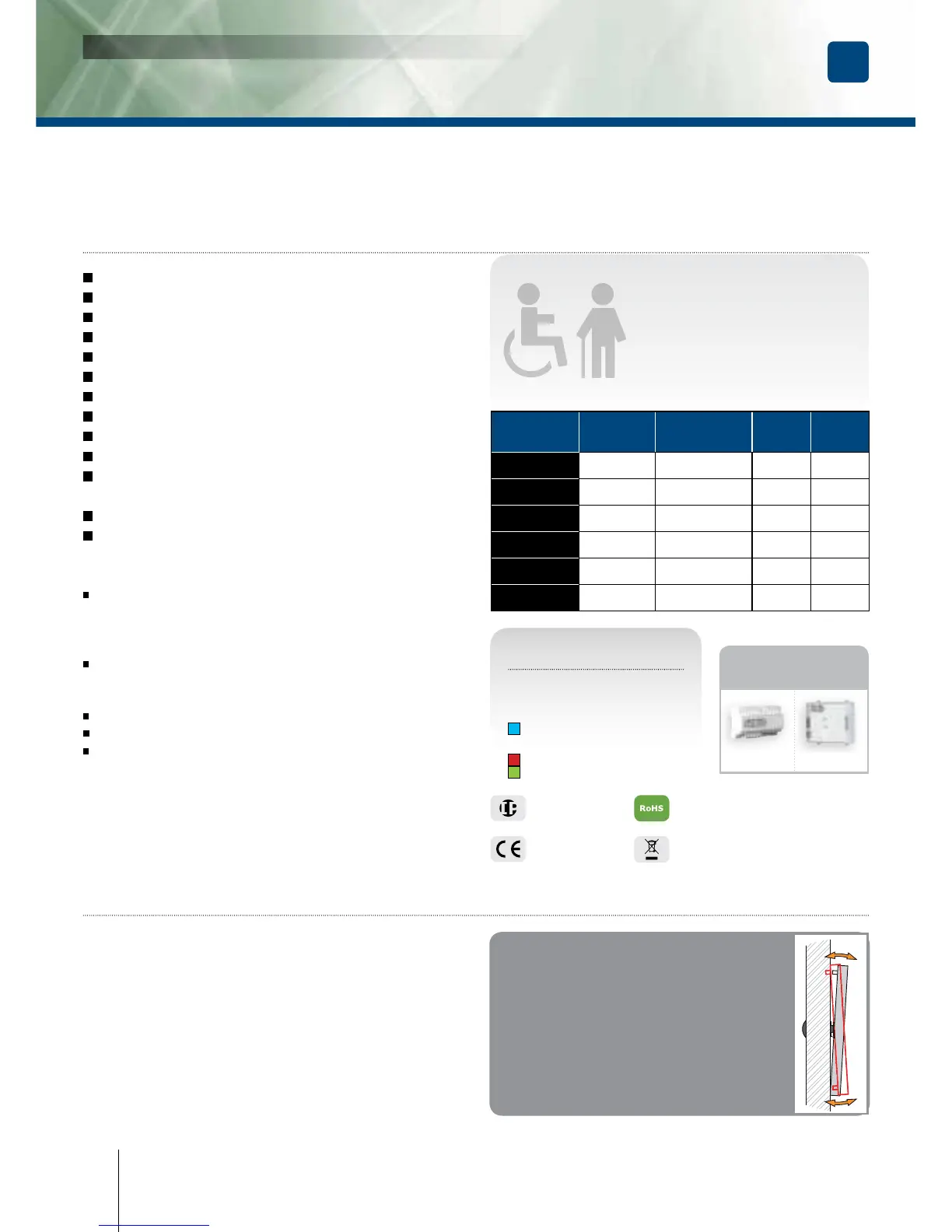

2] REMINDERS AND RECOMMENDATIONS
Electromagnetic locks are designed to require
very little maintenance. Nevertheless,
the following procedures will ensure
optimum performance:
- The electromagnetic lock and its armature have
a special coating to protect them from corrosion.
The contact faces of the lock must always be kept
clean to ensure optimal locking.
- An electromagnetic lock works
with direct current.
1] PRODUCT PRESENTATION
The ECS5000, ECS5000M,
ECS8000 and ECS8000M
versions with signalling are
suitable for the new regulations
covering assistance to persons
with reduced mobility.
Thank you for buying our products and for the condence you placed
in our company.
NFS 61-937.
Surface mounting or mortice*.
Relay*.
Monitored*.
Visual feedback*.
High corrosion resistance.
Delivered with armature plate.
No mechanical wear.
Ease of installation.
Recommended for indoor use.
Fail safe (Door unlocked when
power off).
Holding force: 300 or 500kg*.
Buit-in varistor: Electronic protection
to eliminate back EMF.
Electromagnetic lock dimensions (L x W x D):
- ECM5000 & ECM5000M = 228 x 38 x 27mm,
- ECS5000 & ECS5000M = 254 x 45 x 28mm,
- ECS8000 & ECS8000M = 273 x 67 x 41mm.
Armature dimensions (l x w x d):
- 300kg range = 185 x 38 x 11mm,
- 500kg range = 185 x 60 x 12mm.
Option: Electromagnetic lock accessories.
Power supply: 12/24V dc.
Power absorption:
- 12 V DC = 550mA,
- 24 V DC = 275mA.
* Depending on the version.
ARD12 BS60
Recommended
power supplies
Refs
Holding
force
Visual
feedback
Relay
Moni-
tored
ECM5000 300kg - - -
ECM5000M 300kg - Yes Yes
ECS5000 300kg Blue - -
ECS5000M 300kg Red - Green Yes Yes
ECS8000 500kg Blue - -
ECS8000M 500kg Red - Green Yes Yes
COLOUR CODES
ECS5000 - ECS8000
BLUE > ACTIVE VOLTAGE
ECS5000M - ECS8000M
RED > LOCKED
GREEN > OPEN
EC certication WEEE
IP42
- Make sure that the magnet
and the armature meet evenly
over their entire mating surfaces.
- The Armature plate must
be able to pivot slightly about
its center mounting screw
to compensate for any door
misalignment.
RoHS
