AK500 System Installation and User's Guide
Positron Access Solutions 6 Document 180-0037-003 R01
1.2 Installation
Mounting the AK500
The unit can be mounted with the Rack Bracket mounting (see Figure 1), with
Rack Flange mounting (see Figure 2), and with wall mounting (see Figure 3)

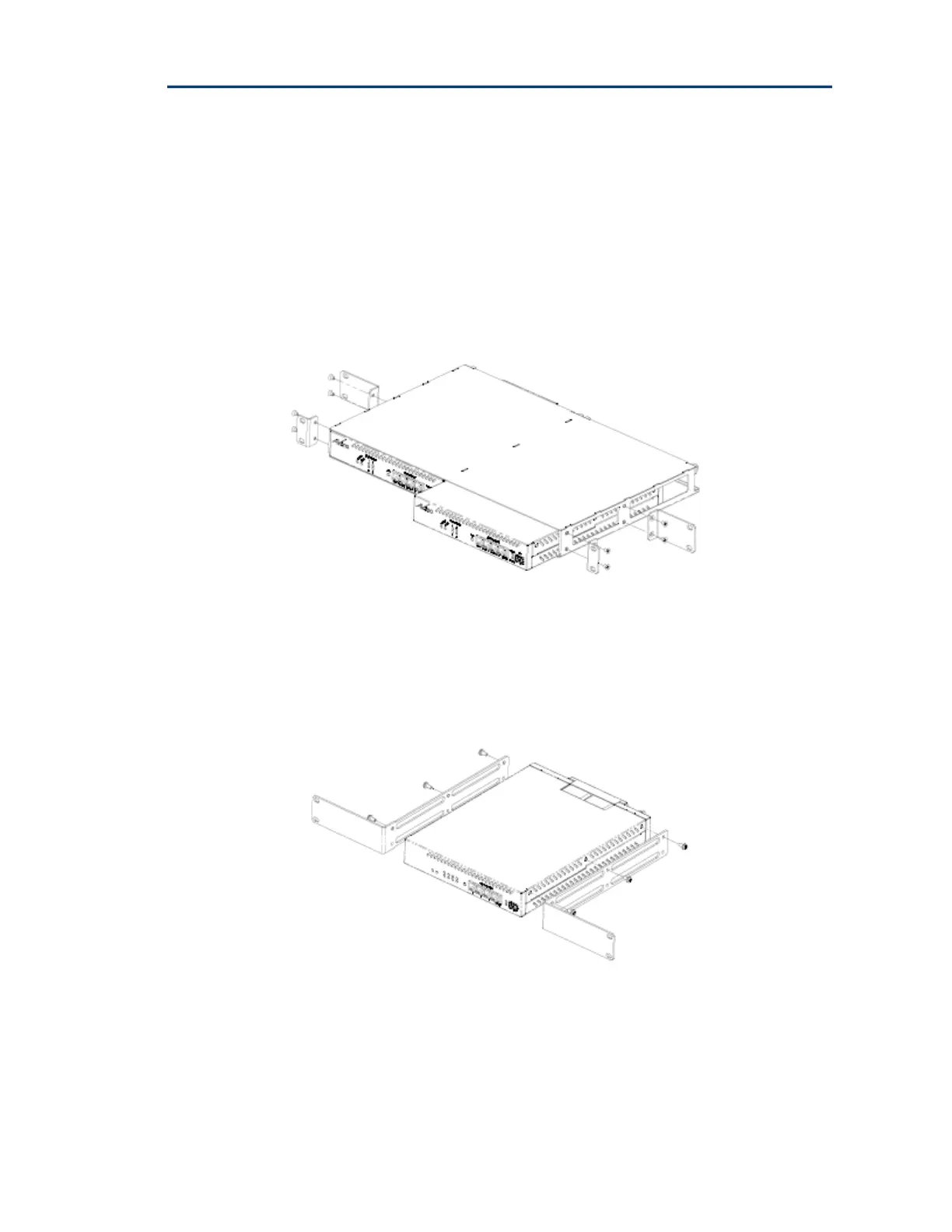

Figure 1 Rack Bracket Mounting
Figure 2 Rack Flange Mounting
