AK500 System Installation and User's Guide
Positron Access Solutions 84 Document 180-0037-003 R01

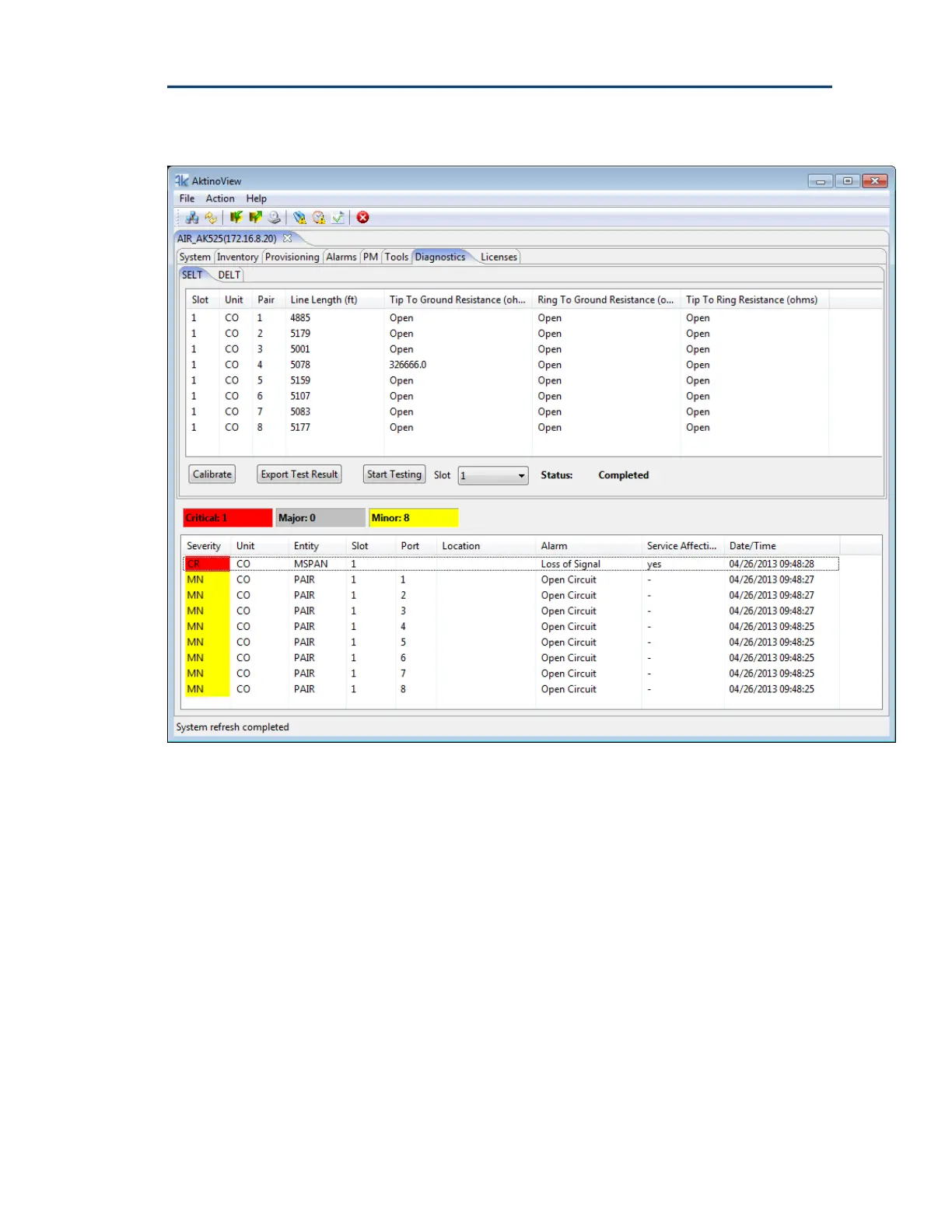

The results of the SELT test are indicated below:
For each pair, the following test results are available:
• Line Length. This is the physical line length, it is AWG agnostic. If there
are large differences in the line length of the pairs, it indicates possibly a
short, open, ground fault, or bridge tap. If the pair is open in the middles
of a loop, the length will indicate where it exists.
• Tip to Ground Resistance. Ring to Ground Resistance. Tip to Ring
Resistance. The results should show "Open" for all pairs since the remote
is not connected. IF there is resistance on any pair, this indicates that
there may be a problem.
•
