Positron G1002-C - G1002-C+ (Coax) Endpoint

G1002-C Quick Installation Guide
Positron Access Solutions 7 Document 180-0219-001 R01
Figure 3: G1002-C LED definition
G1002-C+ (Coax) Endpoint
The G1002-C+ (coax) G.hn Bridge to Gigabit Ethernet comes with two (2) Gigabit
Ethernet port to connect the Residential Gateway (RG). The Gigabit Ethernet Port
labelled as GE1 supports POE / POE+ to power an external device.

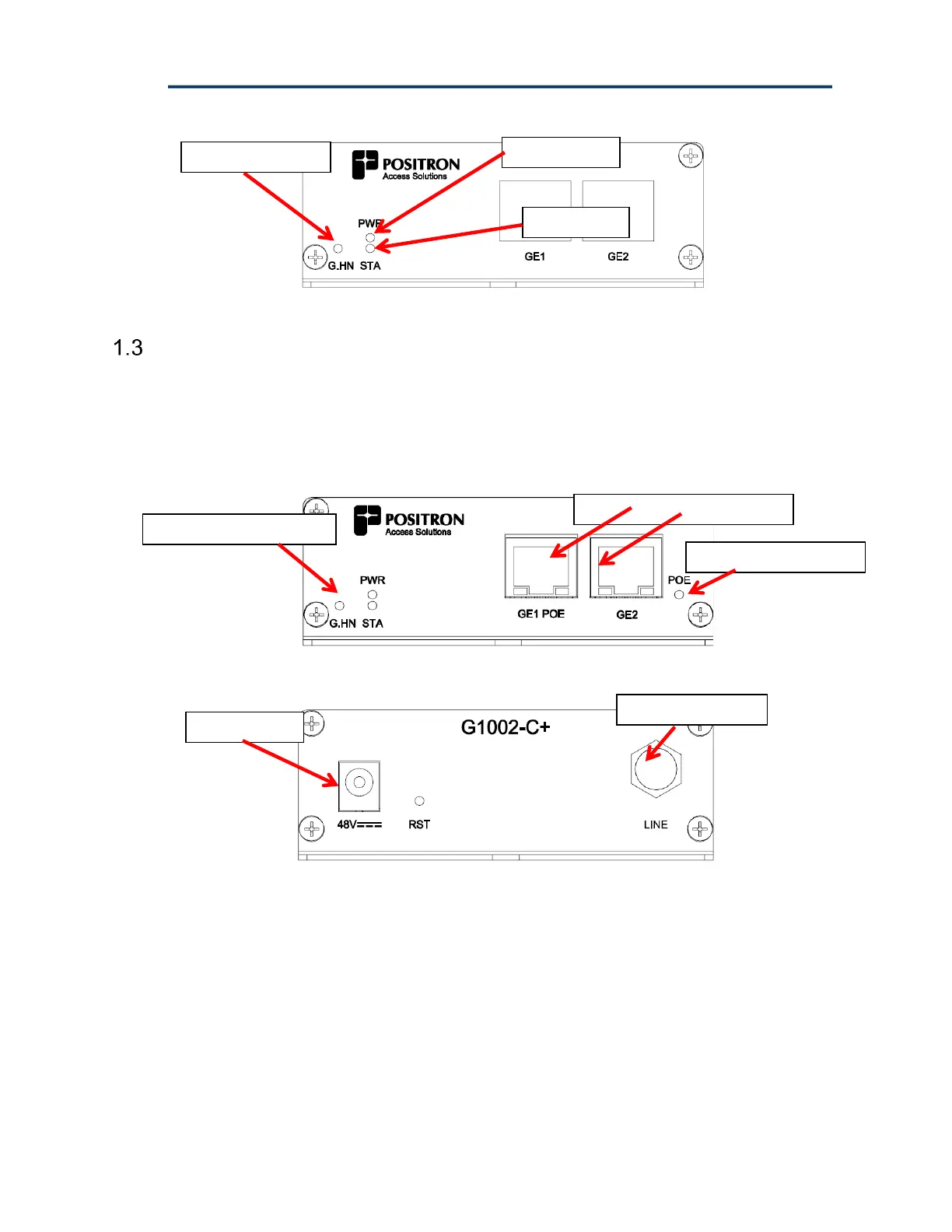

Figure 4: G1002-C+ Gigabit Ethernet Port and Status LEDs
Figure 5: G1002-C+ port definition
Status LED
G.hn Status LED
Power LED
G.hn Port (F-type)
48Vdc Jack
2 x Gigabit Ethernet (RJ-45)
G1002-C+ Status LED
GE1 POE status LED
