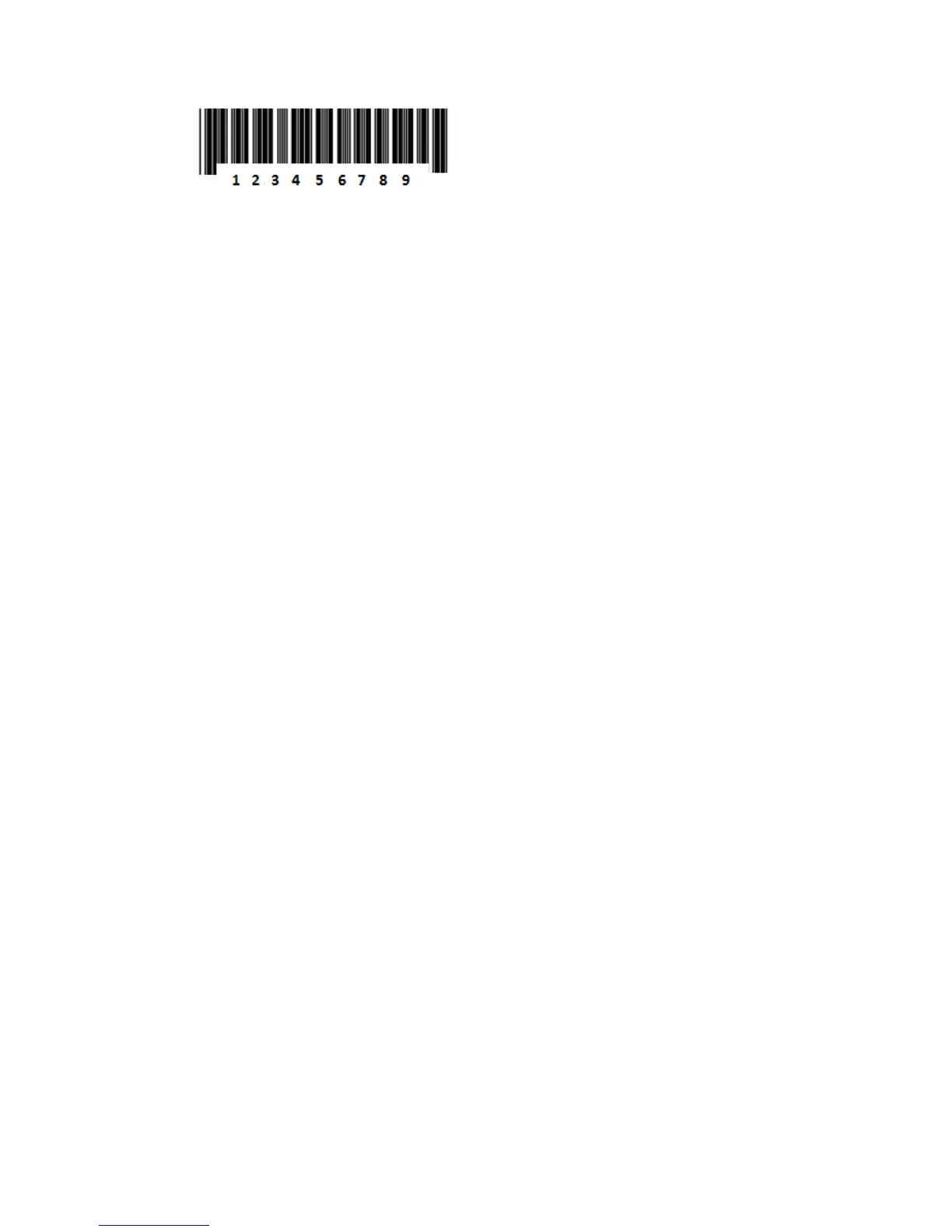

Example:
To make the above barcode output 12A3456789,
insert an "A" character before the third digit (3).
How to set the character you want to insert
(1) Scan “Start Configuration“ barcode
(2) Scan “G1 Insertion character”
(3) Scan “4” and “1” from HEX Table (p.61)
(4) Scan “Confirm Configuration“ barcode
(5) Scan “End Configuration“ barcode
How to set the position you wish to place the character
(6) Scan “Start Configuration“ barcode
(7) Scan “G1 Character Position”
(8) Scan “0” and “3” from HEX Table (p.61)
(which sets the position)
(9) Scan “Confirm Configuration“ barcode
(10) Scan “End Configuration“ barcode
How to set the insertion for Code 39
Go to page 27 (Code 39)
(11) Scan “Start Configuration“ barcode
(12) Scan “Insert Group Selection” barcode
(13) scan “0” and “1” from the HEX Table (p.61)
(which represents the group, 01, that was just created)
(14) Scan “Confirm Configuration“ barcode
(15) Scan “End Configuration“ barcode
14
