8.0 Flue Options
© Baxi Heating UK Ltd 2007
Key Accessory Size Code No
FLUE GROUP A
Concentric Flue System 100mm diameter
A Horizontal Flue Terminal (incl elbow) 5118489
A2 Telescopic Flue (inc. elbow) 315-500mm 5119654
A3 Telescopic Internal Flue Kit 315-500mm 5119654
B Flue Extension 1000mm 5111074
C Flue Bend 93° 5111075
D Flue Bend (pair) 135° 5111085
U Pipe Support (painted) 100Ømm 5111080
R Vertical Flue Adaptor 5111070
P Wall Liner 5111067
S Flue Terminal Deflector 5111068
FLUE GROUP N
Twin Flue System 80mm diameter
E Flue Extension (pair) 1000mm 5111087
F Flue Bend (pair) 90° 5111072
G Flue Bend (2 pair) 135° 5111086
J Vertical Flue Boiler Adaptor Kit 5111079
H Vertical Flue Adaptor 5111084
W Pipe Support (pair) 80mm 5111081
Y Twin Flue Termination Kit
(horizontal termination) 80mm 5120172
FLUE GROUP G
Concentric Flue System 80/125mm diameter
A4 Horizontal Flue Kit 5118580
B Straight Extension Kit 1000mm 5118584
D Bend Kit (pair) 135° 5118597
C Bend 91.5° 5118588
X Pipe support 125mm 5118610
FLUE GROUP A, N, G
Vertical Flue Kits
K1 Vertical Flue Terminal 5118576
L Pitched Roof Flashing 25°/45° 246141
Pitched Roof Flashing 35°/55° 246142
M Roof cover plate 246143
N Flat roof flashing 246144
A
A2
B
K1
R
D
C
N
U,W,X
S
L
H
J
M
E
G
F
P

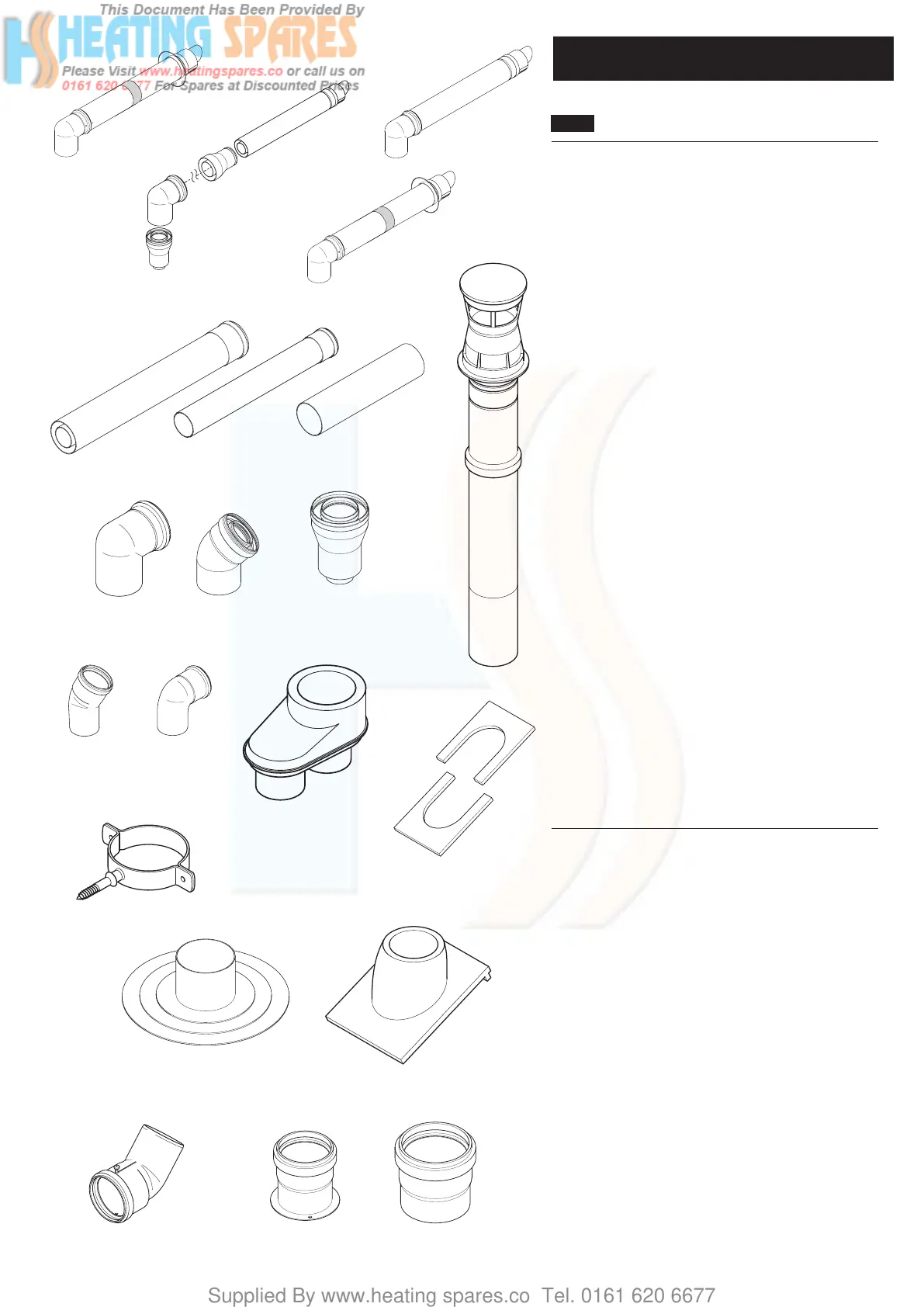

8.3 Flue Accessories
A3
A4
