1.0 Introduction
© Baxi Heating UK Ltd 2007
1.1 Description
1. The Potterton Promax System HE Plus is a fully automatic
gas fired wall mounted condensing system boiler. It is room
sealed and fan assisted.
2. The boiler is set to give a maximum output of :-
12 models - 12 kW
13 kW (Condensing)
15 models - 15 kW
16.2 kW (Condensing)
18 models - 18 kW
19.4 kW (Condensing)
24 models - 24 kW
25.9 kW (Condensing)
32 models - 32 kW
34.4 kW (Condensing)
3. It is designed for use on Natural Gas (G20).
4. The boiler incorporates a circulating pump and expansion
vessel. It is suitable for use only on fully pumped sealed
systems.
5. The boiler data badge gives details of the model, serial
number and Gas Council number and is situated on the inner
door panel. It is visible when the case front panel is removed
(Fig. 1).
6. The boiler model name and serial number are also shown
on the information label on the rear of the lower door panel.
This is for user reference.
7. The boiler is intended to be installed in residential /
commercial / light industrial E.M.C. environments on a
governed meter supply only.
8. The boiler must be installed with one of the purpose
designed flues such as the standard horizontal flue kit, part no.
5118489.
9. All systems must be thoroughly flushed and treated with
inhibitor (see section 6.2).
1.2 Contents of Pack
The pack contains:-
• Boiler
• Wall Plate (including taps)
• Set of Pipe Connections
• Template
• Literature Pack

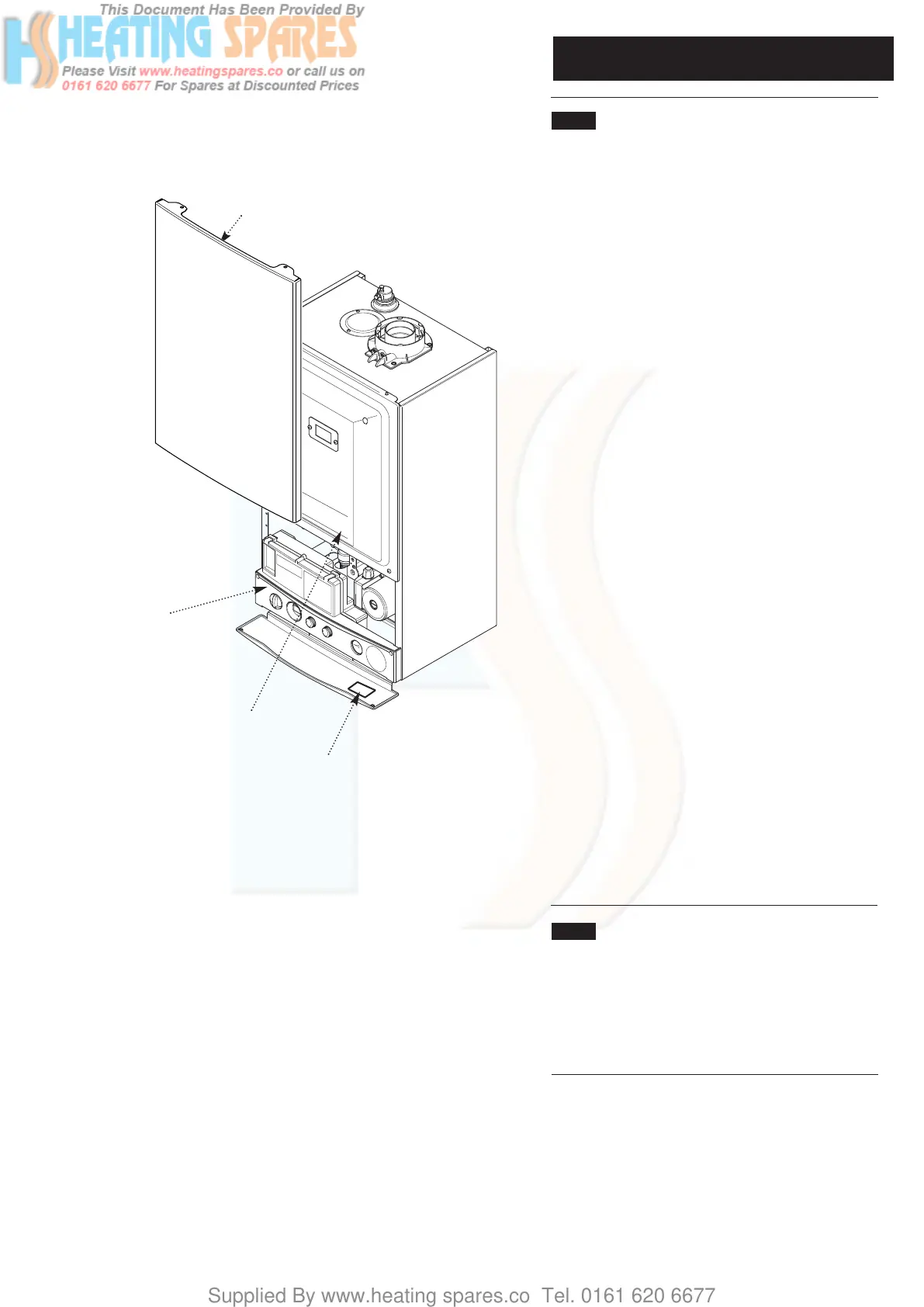

Fig. 1
Control Box
Case Front Panel
Data Badge
Information Label
