Potterton Paramount 80 - Application Example 2 a & 2 b Hydraulic Diagrams

SECTION 3 POTTERTON COMMERCIAL PRODUCTS DIVISION
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
PAGE 8
PARAMOUNT

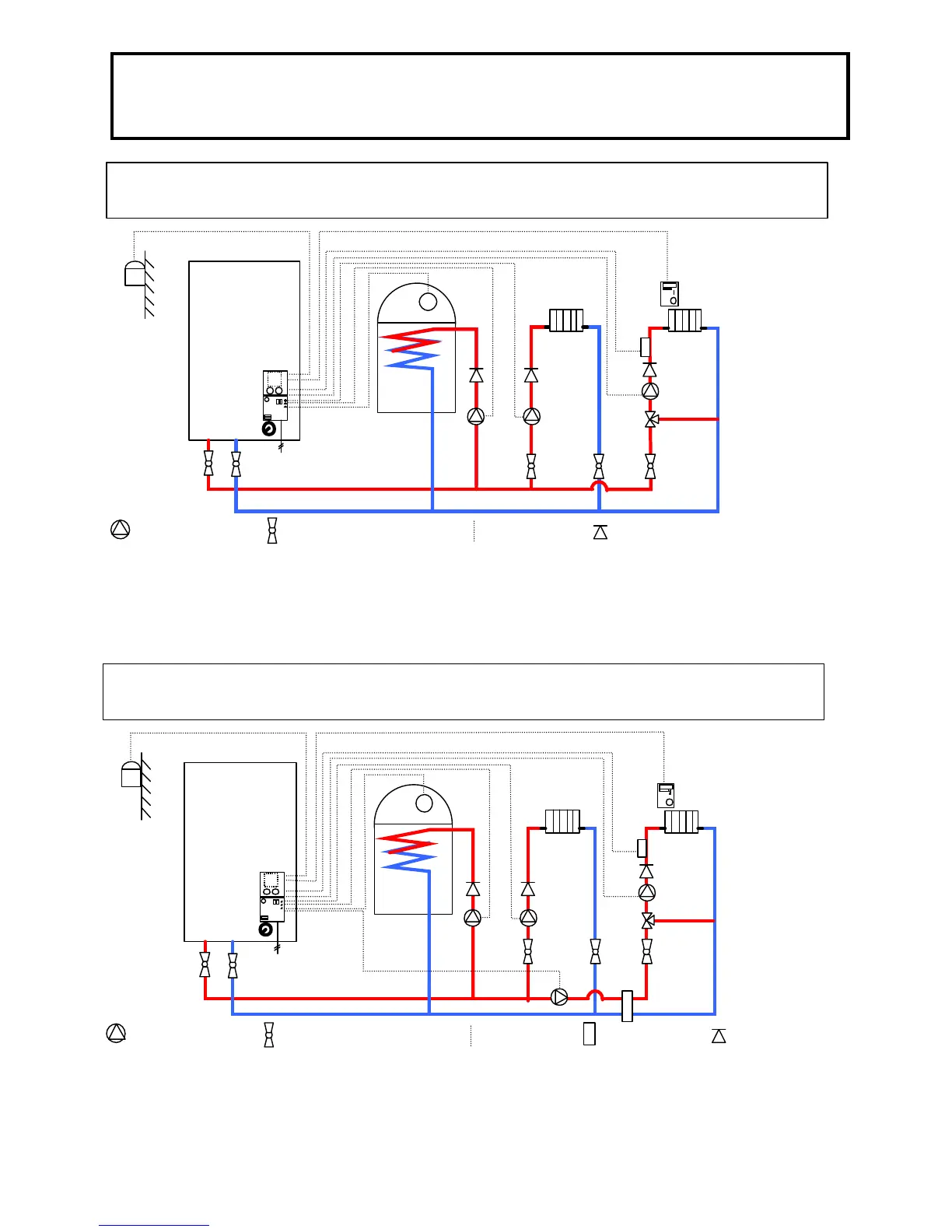

Application example 2a
(Hydraulic system “50”)
1 constant temperature circuit and one compensated circuit with remote room control module RRG (B5),
including hot-water tank temperature WWF
Alternatively: 1 CTC with heating circuit module HKM & EMS and 1 VTC with room control module RRG
Alternatively: VTC with zone control ZR EC1/2 (N7, K1)
B1
–
Flow Sensor QAD 36*
B3 – Tank sensor QAZ 36*
B5 – Room Control Module RRG*
B9 – Outdoor temp Sensor QAC 34
M1
–
CT Pump
M2 – VT pump
M3 – Hot water pump
N – Control Module
K1
–
Bus module CIB*
* Available Optional Extra
• Please note that when a RRG unit is used then the HKM unit must be disconnected.
N3
–
Heating Circuit module HKM
N4 – Mixer Module CIM*
Y1 – 3-way valve
N7 – Zone controller ZR EC1/2*
B5
M3
M1
CTC
Heating
Circuit
N4
N3
Paramount
– Pump (Not Supplied)
– Isolating Valve (Not Supplied)
– Installer Wiring
Hot Water
Cylinder
B3
Mains Supply
230V AC
B9
B1
M2
VTC
Heating
Circuit
Y1
Application example 2b
(Hydraulic system “50”)
1 constant temperature circuit and one compensated circuit with remote room control module RRG (B5),
including hot-water tank temperature WWF
Alternatively: 1 CTC with heating circuit module HKM & EMS and 1 VTC with room control module RRG
Alternatively: VTC with zone control ZR EC1/2 (N7, K1)
B5
M3
M1
CT
C
Heating
Circuit
N4
N3
Paramount
Hot Water
Cylinder
B3
Mains Supply
230V AC
B9
B1
M2
VTC
Heating
Circuit
Y1
M5
B1
–
Flow Sensor QAD 36*
B3 – Tank sensor QAZ 36*
B5 – Room Control Module RRG*
B9 – Outdoor temp Sensor QAC 34
M1
–
CT Pump
M2 – VT pump
M3 – Hot water pump
M5 – Primary Loop pump
N3
–
Heating Circuit module HKM
N – Control Module
* Available Optional Extra
• Please note that when a RRG unit is used then the HKM unit must be disconnected.
N4
–
Mixer Module CIM*
Y1 – 3-way valve
N7 – Zone controller ZR EC1/2*
– Non return valve
– Pump (Not Supplied)
– Isolating Valve (Not Supplied)
– Installer Wiring
– Low loss header – Non return valve
