SECTION 3
PARAMOUNT
PAGE 7
Applications and Installation Details

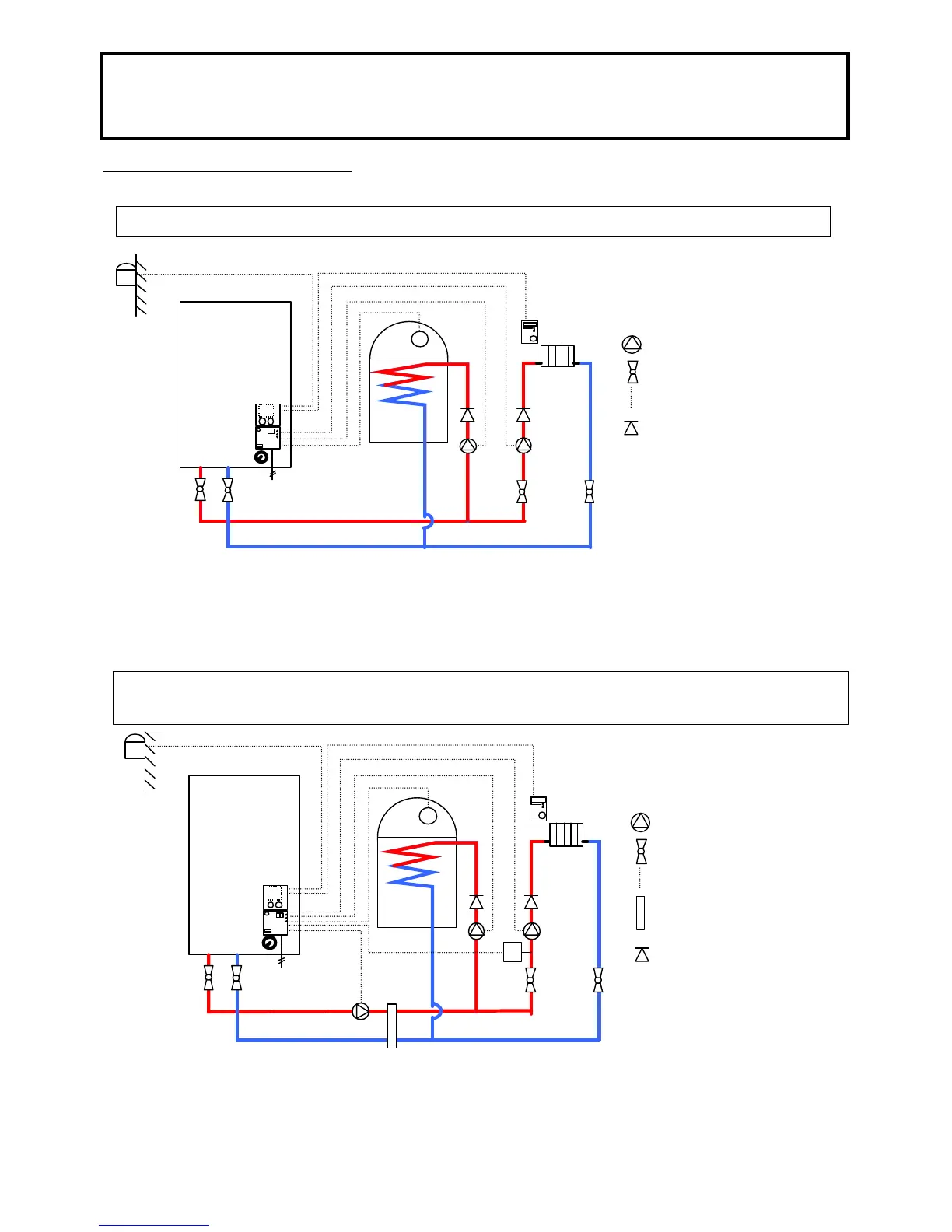

Application example 1a
(Hydraulic system “2”)
1 pumped heating circuit (CTC) with remote room con
trol module RRG (B5) or with boiler mounted control
HKM (N3) & EMS (Grasselin Time Clock), including hot-water tank temperature control WWF tank sensor
B3
–
Tank Sensor WWF (QAZ36)*
B5 – Room Control Module RRG (QAA73)*
B9 – Outdoor Temp Sensor (QAC34)
M1
–
Heating Pump (CTC)
M3 – Hot Water pump
N – Control Module
N3 – Heating Circuit module HKM
* Available Optional Extra
• Please note that when a RRG unit is used then the HKM (supplied with boiler) unit must be disconnected.
Application example 1d
(Hydraulic system “2”)
1 pumped heating circuit (CTC) with remote room control module RRG (B5) or with boiler mounted control
HKM (N3) & EMS (Grasselin Time Clock), including hot-water tank temperature control WWF, with primary
loop (or hydraulic switch for Under floor heating).
B3
–
Tank Sensor WWF (QAZ36)*
B5 – Room Control Module RRG (QAA73)*
B9 – Outdoor Temp Sensor (QAC34)
M1
–
Heating Pump
M3 – Hot Water pump
M5 – Primary Pump
N3
–
Heating Circuit module HKM
B6 – Flow Sensor QAD36*
N – Control Module
N6 – Temperature Module CITF* (for B6)
*
Available Optional Extra
• Please note that when a RRG unit is used then the HKM (supplied with boiler) unit must be disconnected.
B5
M3
M1
Constant
Temp
Heating
Circuit
N
N3
Paramount
– Pump (Not Supplied)
– Isolating Valve (Not Supplied)
– Installer Wiring
Hot Water
Cylinder
B3
Mains Supply
230V AC
B9
– Non return valve
B5
M3
M1
Constant
Temp
Heating
Circuit
N
N6
N3
Paramount
– Pump (Not Supplied)
– Isolating Valve (Not Supplied)
– Installer Wiring
Hot Water
Cylinder
B3
Mains Supply
230V AC
B9
B6
M5
–
Low Loss Header (Not
Supplied)*
– Non return valve
