Poulan Pro PP155A42 - Mower Lift Mechanism Overview; Mower Lift Diagram; Mower Lift Parts List

16
REPAIR PARTS
TRACTOR - MODEL NUMBER PP155A42 (274430), PRODUCT NO. 274430

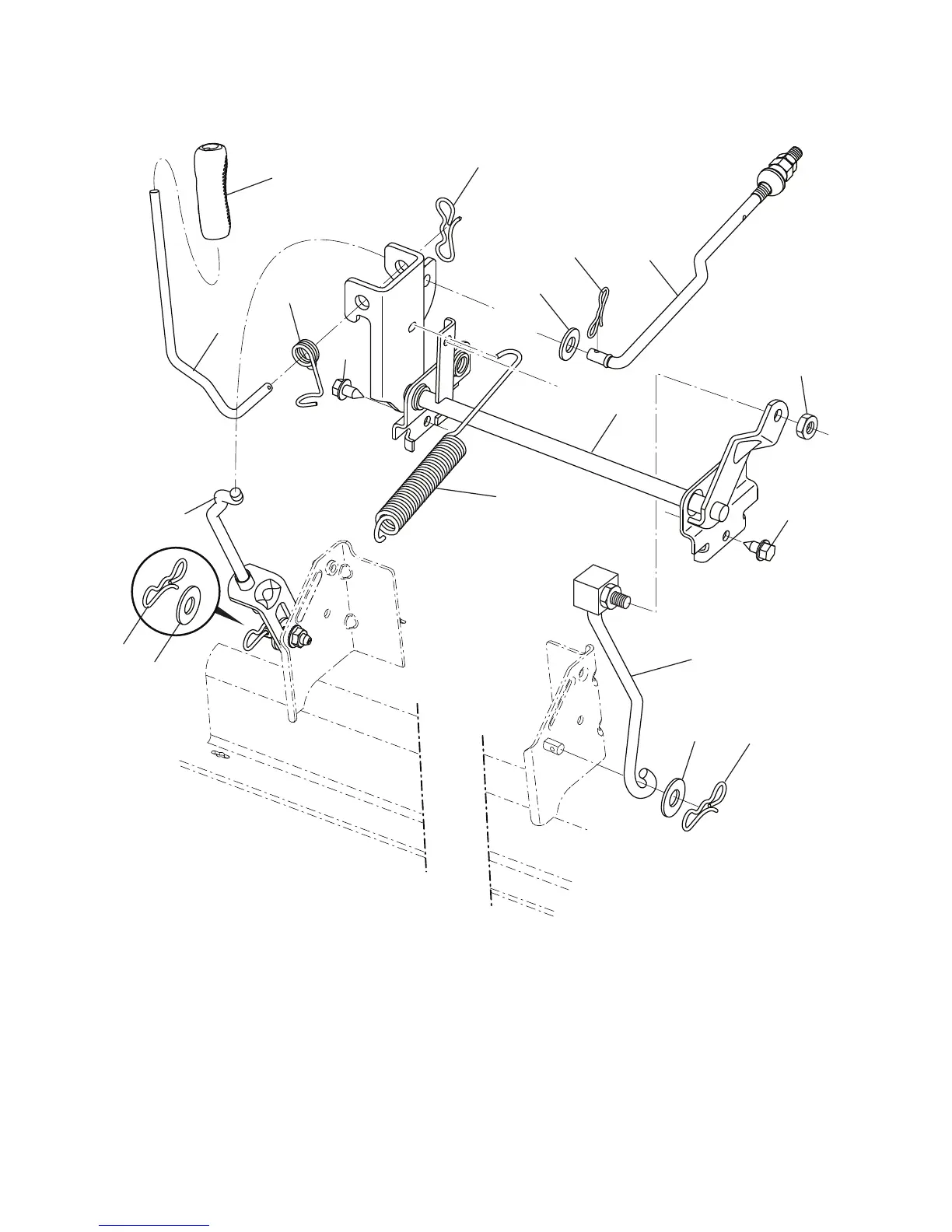

MOWER LIFT
7
3
87
10
88
2
17
90
98
97
97
lift-tex_37 *Key 91 may be substituted for Key 101
91
101*
87
100
89
89
87
2 532 42 20-27 Shaft Asm., Cross Lift
3 532 19 52-31 Lever Asm., Lift RH
7 580 96 23-01 Grip, Lever
10 532 19 63-14 Spring Torsion
17 819 13 13-12 Washer 13/32 x 13/16 12 Ga.
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41 07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
91 532 19 79-84 Link Lift Susp Mower Rear
97 817 00 06-12 Screw 3/8-16 x .75 Smgml Tap/R.Z
98 532 42 05-25 Link Lift Susp. Front Mower
100 873 93 06-00 Nut Centerlock 3/8-16 unc
101 581 50 65-01 Link Asm. Fixed
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
