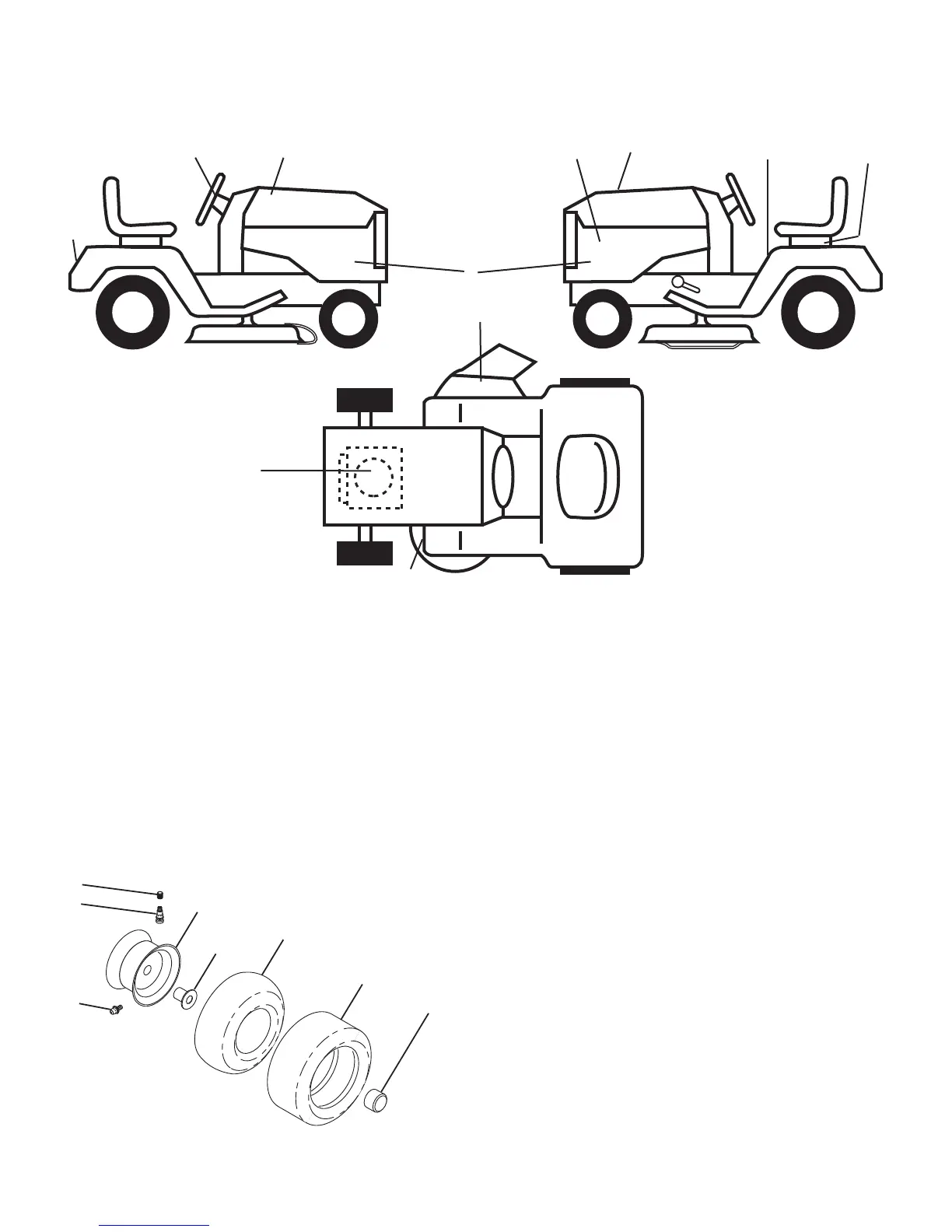

REPAIR PARTS
TRACTOR - MODEL NUMBER PP155A42 (274430), PRODUCT NO. 274430
DECALS
2 501 52 13-01 Decal, Replacement
3 585 55 48-01 Decal, Engine HP
5 584 90 46-01 Decal, Deflect. Warning
6 581 57 89-01 Decal, Fender Warning
7 582 67 72-01 Decal, Ins Str Wh
8 501 50 33-01 Decal, Side Panel
9 582 67 73-01 Decal, Fender
10 581 58 00-01 Decal, V-Belt Sch.
12 582 67 74-01 Decal, Hood RH/LH
15 532 14 50-05 Decal, Caution, Battery
- - 532 40 95-07 Pad Footrest RH
- - 532 40 95-05 Pad Footrest LH
- - 581 72 48-01 Decal, Bypass
- - 115 78 28-49 Manual, Operator's English/Spanish
- - 589 88 63-01 Manual, Parts English/Spanish
- - 115 63 96-46 Manual, QSG English/Spanish
1 532 05 91-92 Cap, Tire Valve
2 532 06 51-39 Stem, Valve
3 532 10 62-22 Tire, Front 15 x 6-6
4 532 05 99-04 Tube, Front (Service item only)
5 532 12 51-21 Rim Assembly, 6" Front
6 532 12 49-57 Fitting, Grease (Front wheel only)
7 532 12 49-59 Bearing, Flange (Front wheel
only)
8 532 12 51-22 Rim Assembly, 8" Rear
9 532 13 84-68 Tire, Rear 20 x 8-8
10 532 12 49-26 Tube, Rear (Service item only)
11 532 19 32-68 Cap, Hub Axle
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
1
5,8
4,10
3,9
11
7
