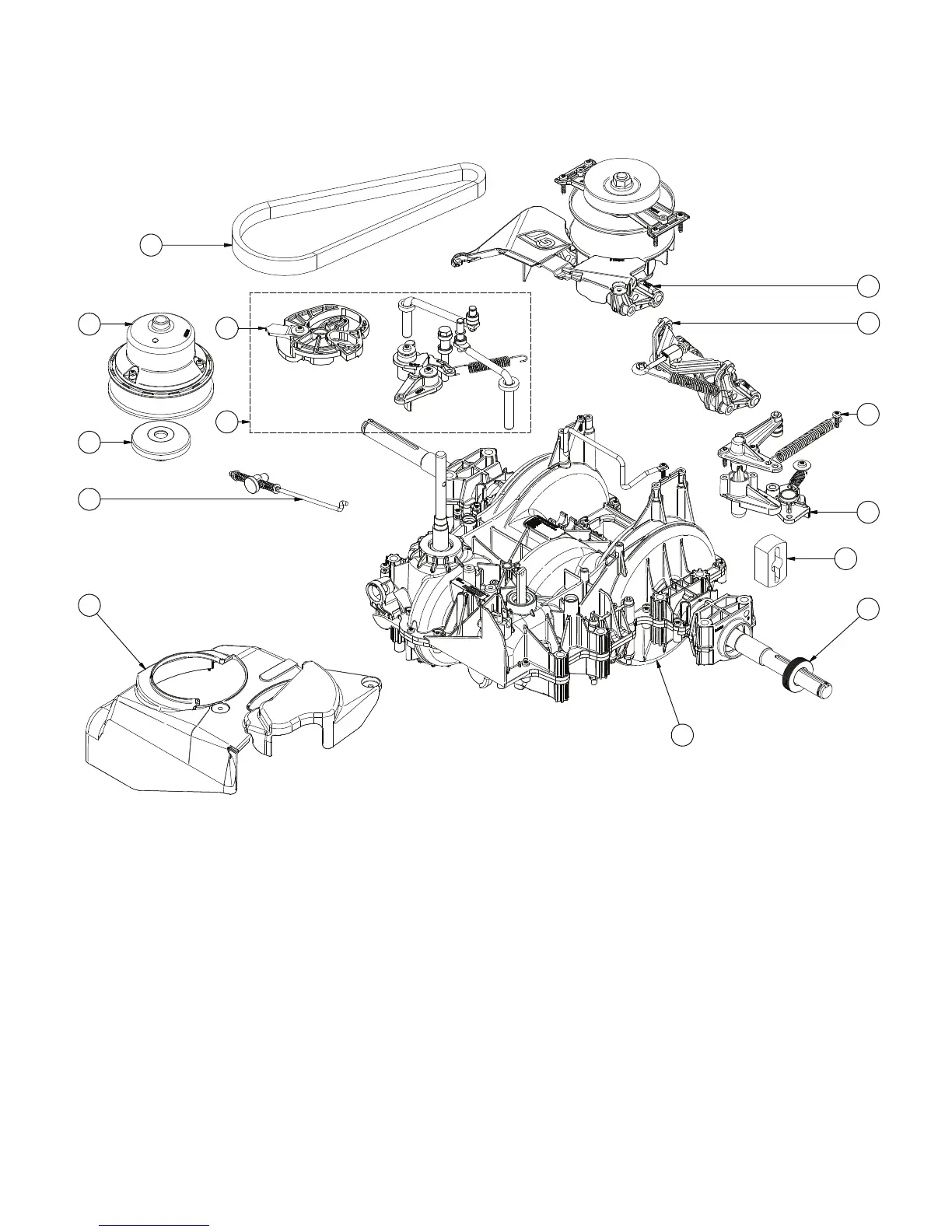

Poulan Pro PP155A42 - Transaxle Assembly (RS800 SD-P); Transaxle Diagram; Transaxle Parts List

19
TRACTOR - - MODEL NUMBER PP155A42 (274430)
GENTRANS TRANSAXLE - MODEL NUMBER (RS800 SD-P) 587884401
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 587291101 Inversion Security System
2 587086701 Driven Kit
3 587291301 Brake Kit
4 587086702 Control Kit
5 587291401 Bypass Kit
6 587291402 Inversion Kit
7 589668301 Anti-Debris Kit
8 590097101 Variation Kit
9 587086101 Variation Belt
10 587086302 Rotating Cam
11 587291601 Cover
12 590100301 Output Seals
13 587884401 RS800 SD-P
14 587086501 Driven Tool
– – 587086901 RS800 Hardware Kit
RS800 SD-P
9
2
11
6
4
7
8
3
12
10
1
5
14
13
