Poulan Pro PR111 - Repair Parts; Auger Assembly

18
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PR111 (96182001602)

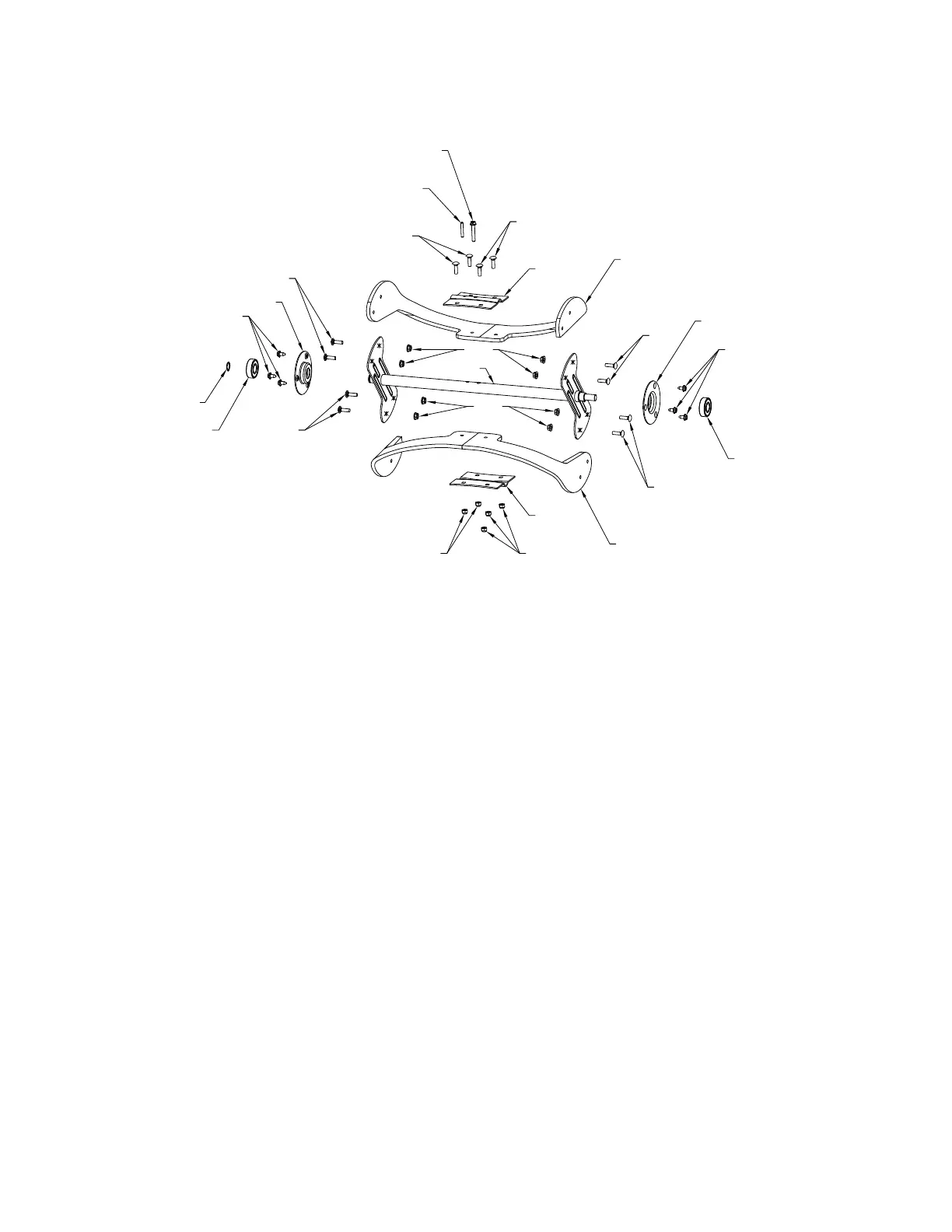

AUGER ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1212
11
11
3
3
4
1
1
7
2
2
5
5
6
7
8
9
10
10
10
10
10
10
06.03.001-F
1 532 44 27-59 BLADE
2 580 85 55-01 BEARING SUPPORT
3 532 11 04-85 BALL BEARING
4 812 00 00-28 RETAINING RING
5 817 06 04-08 SCREW 1/4-20 X 3/8
6 532 43 76-17 AUGER WELDMENT
7 580 85 54-01 CENTER BLADE PLATE
8 532 43 76-20 ROLL PIN
9 532 19 96-87 SCREW HEX WS HD 1/4-20 X 1.5
10 872 11 04-07 BOLT CARRIAGE 1/4-20 X 7/8
11 532 19 17-30 LOCKNUT 1/4-20 HEX FLANGE SIDE
12 532 13 20-04 NUT HEX 1/4-20 SERR
