NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PR111 (96182001602)

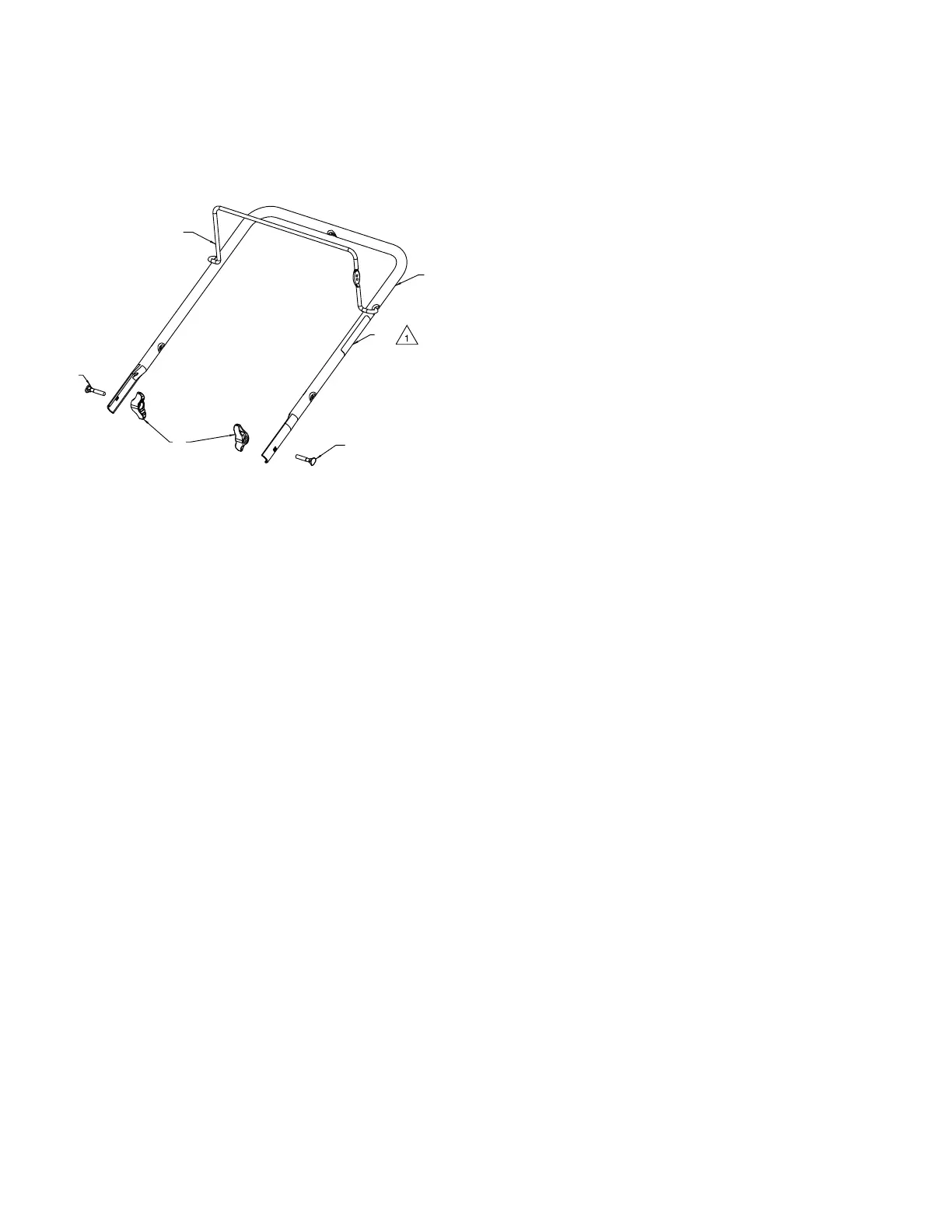

HANDLE ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
3
3
4
1
2
5
06.07.001-C
1 580 85 70-01 HANDLE UPPER SSST
2 580 86 04-01 BAIL STRAIGHT
3 532 19 15-74 BOLT HANDLE
4 532 19 19-38 KNOW WING
5 532 43 75-06 DECAL AUGER
