NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PR111 (96182001602)

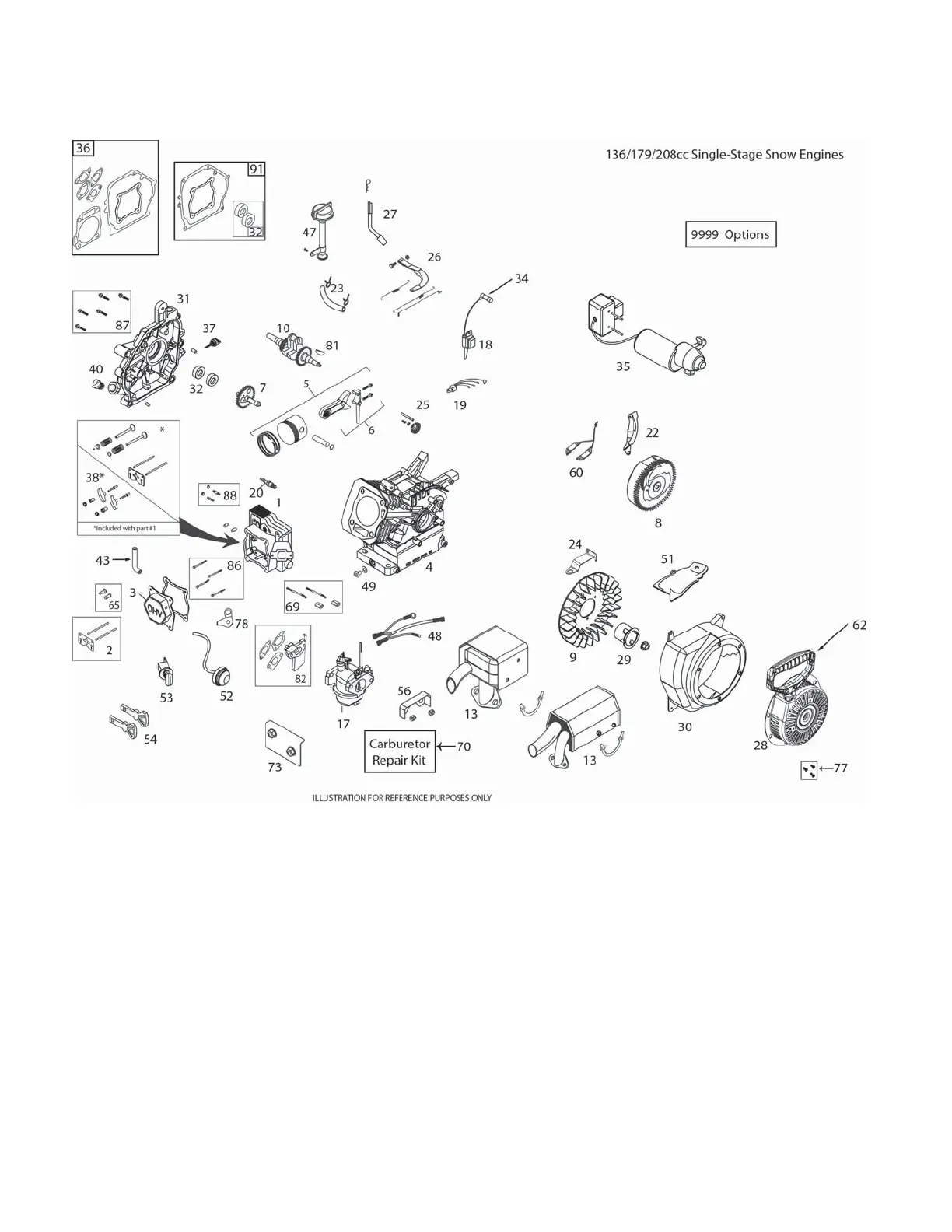

ENGINE, LCT COMPLETE ENGINE - 585742604
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 587 17 57-01 CYLINDER HEAD ASSEMBLY -
179CC (INCL. GASKET)
2 532 42 05-79 PUSH ROD & PLATE KIT
(179/208CC)(INCL. VALVE COVER
GSKT)
3 532 42 05-80 VALVE COVER (179/208CC)
(INCL. GASKET)
4 N/A N/A
5 587 17 71-01 PISTON & ROD ASSEMBLY
(179CC)
6 N/A N/A
7 587 17 72-01 CAMSHAFT - MCR (179CC)
8 532 42 92-36 FLYWHEEL - MANUAL START
(179/208CC)
9 532 42 05-86 COOLLNG FAN - FLYWHEEL
(PLASTIC - 136/179/208CC)
10 587 17 61-01 CRANKSHAFT (#18 KEYED
136/179/208CC SNOW)
13 532 44 42-77 MUFFLER ASSEMBLY(SINGLE
STAGE)-SNOW
To Next Page
