NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PR111 (96182001602)

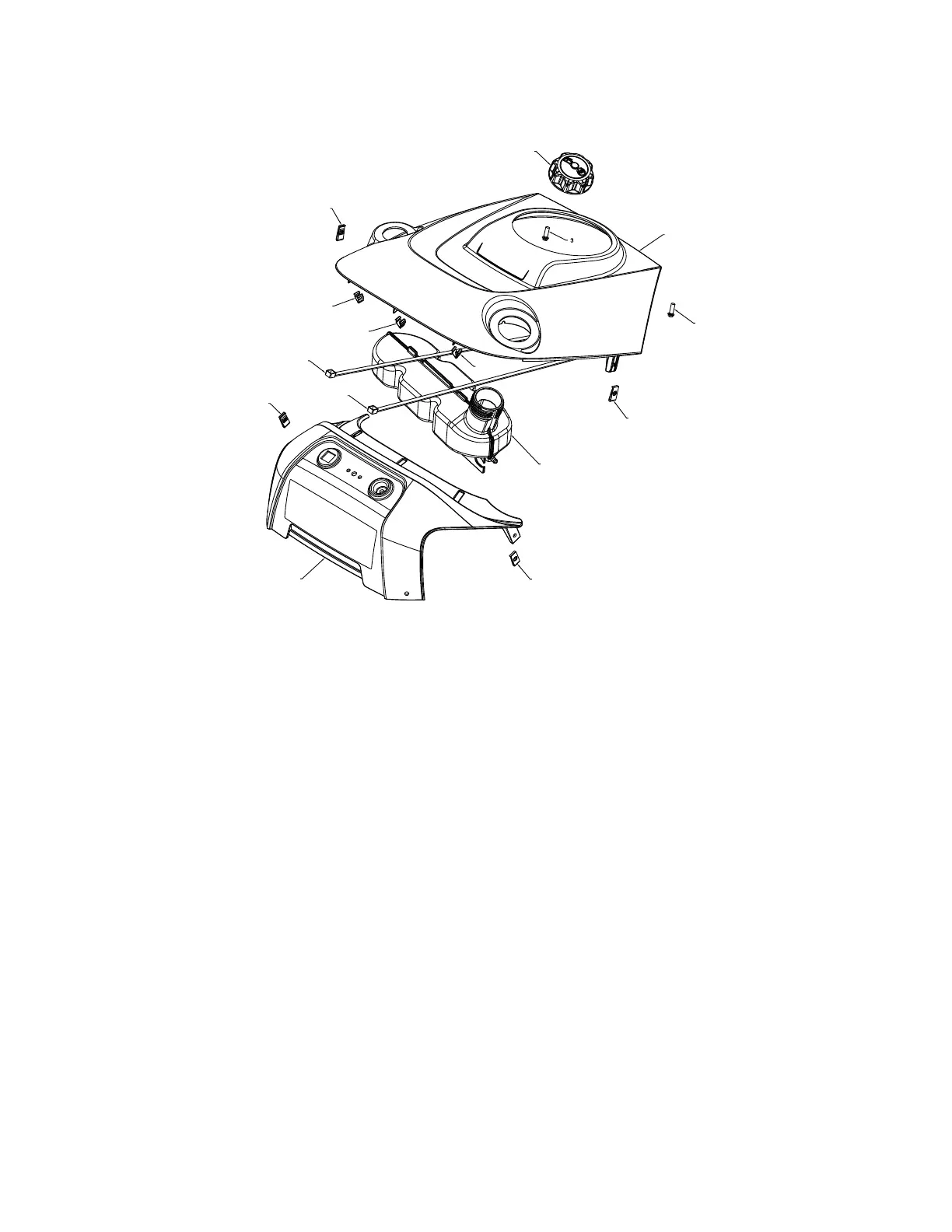

SHROUD ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
3
4
4
4
4
1
2
5
5
5
6
7
7
8
06.04.011-F
1 532 44 33-99 TOP COVER
2 588 75 39-01 REAR UPPER COVER
3 817 41 13-12 BOLT 13-16 X .75
4 532 19 66-88 THREADED CLIP
5 532 43 48-68 TRIM CLIP
6 580 98 26-01 FUEL TANK ASSEMBLY
7 532 14 68-48 CABLE TIE
8 581 07 55-01 FUEL CAP/GASKET
- - 532 17 45-72 DECAL, CANADA, IGNITION (NOT SHOWN)
- - 582 64 62-01 DECAL, EPA (NOT SHOWN)
- - 590 40 31-01 DECAL, COVER (NOT SHOWN)
