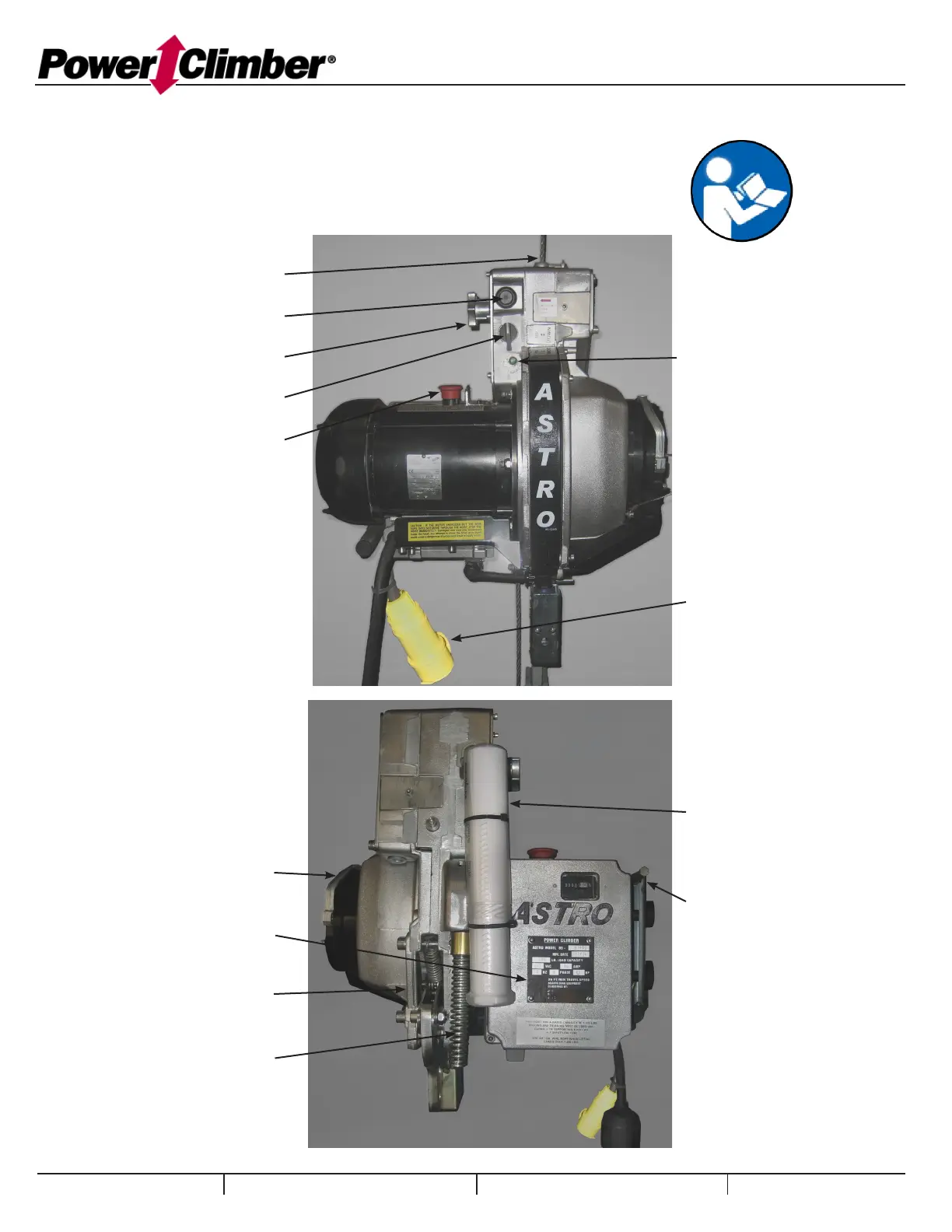

FRONT AND BACK VIEWS OF HOIST
Wire rope insertion points
Overspeed brake test button
Overspeed brake reset knob
Up / Down operation switch
Emergency stop (power cut-off)
Indicator light
Pendant receptacle
(Pendant sold separately)
Controlled descent lever
Model designation
Serial number information
Exit spring
Manual
Crank Handle
