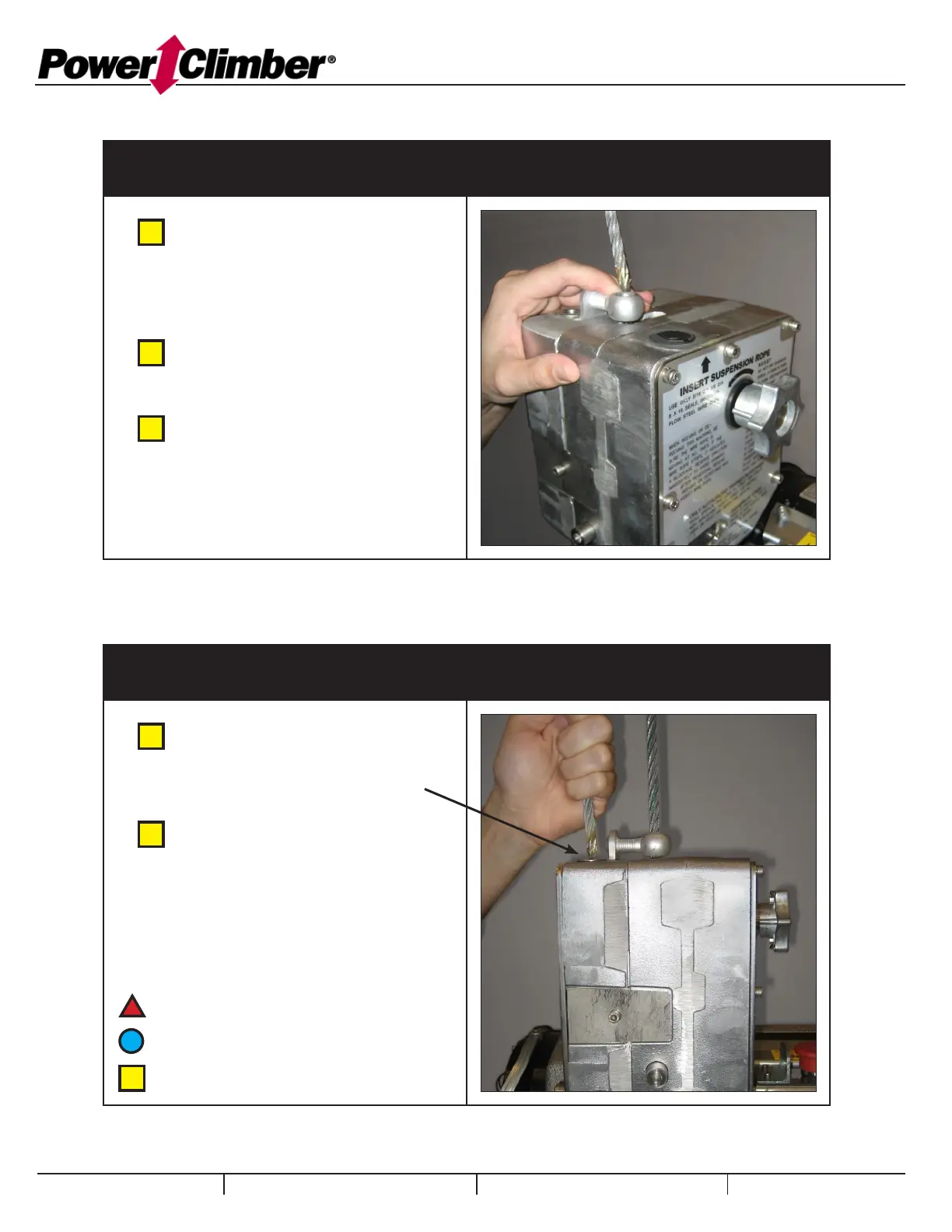

REEEVING MAIN SUSPENSION WIRE ROPE
Check that the overspeed reset knob
is reset. While holding round eyelet guide
vertical, push the main suspension wire
rope bullet end into hoist.
Operate the hoist in the ↑ UP direction
while pushing the rope into the hoist.
Make sure the wire rope runs freely
through the “Wire Rope Exit Spring”
REEEVING SECONDARY WIRE ROPE (OPTIONAL)
Push secondary wire rope through
the “Wire Rope Insertion Point” for the
secondary rope until it exits the hoist.
Attach a 25lb (11.5 kg) weight to the
end of the secondary wire rope to assist
secondary rope travel.
= Inspect
= Verify
=Perform process
