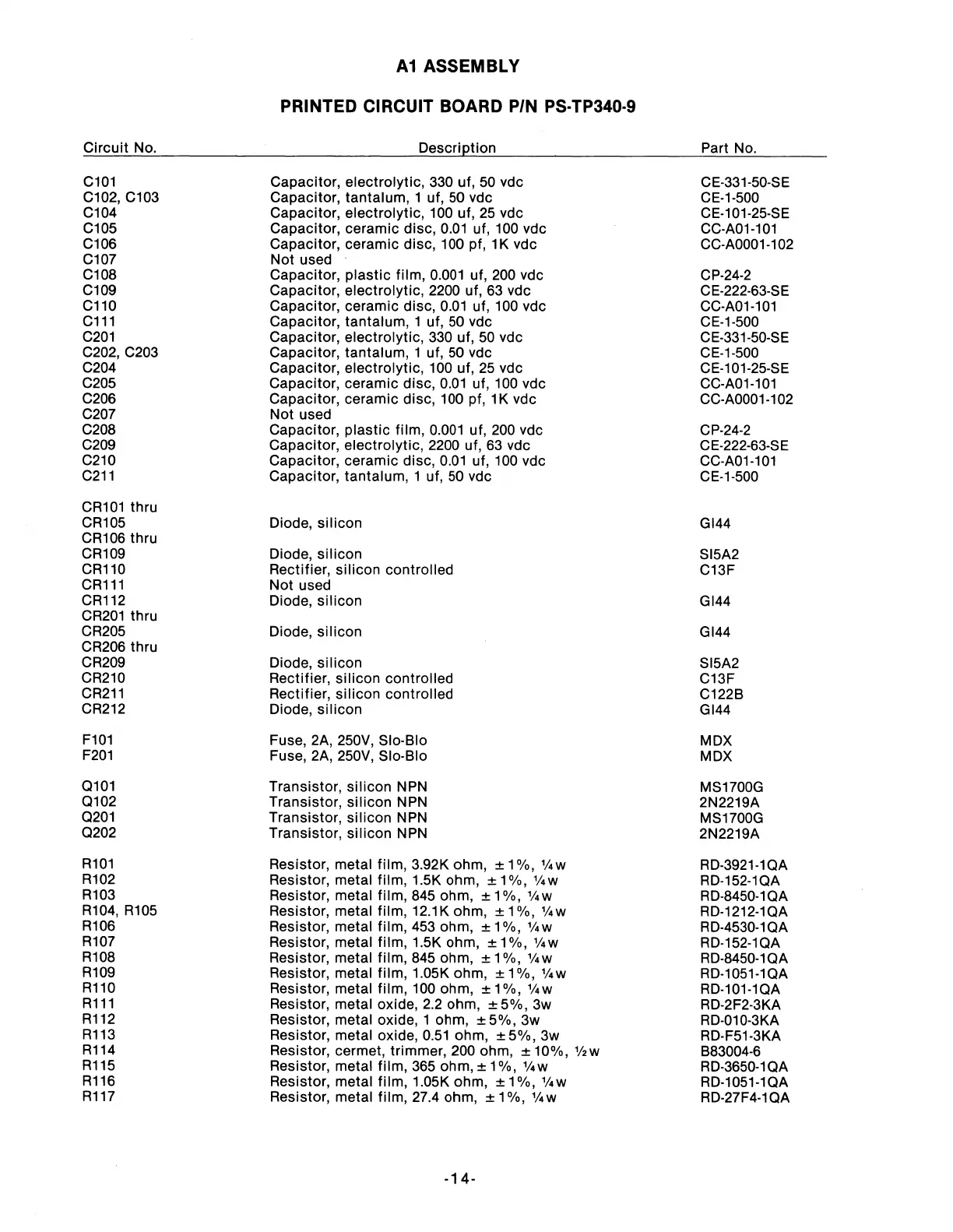

A1
ASSEMBLY
PRINTED CIRCUIT BOARD P/N PS·TP340·9
Circuit
No. Description
Part No.
C101
Capacitor, electrolytic, 330 uf,
50
vdc
CE-331-50-SE
C102, C103 Capacitor, tantalum, 1 uf,
50
vdc
CE-1-500
C104 Capacitor, electrolytic, 100 uf,
25
vdc
CE-101-25-SE
C105 Capacitor, ceramic disc,
0.01
uf, 100 vdc
CC-A01-101
C106
Capacitor, ceramic disc, 100 pf, 1K vdc CC-A0001-102
C107 Not used
C108 Capacitor,
plastic
film,
0.001
uf, 200 vdc
CP-24-2
C109
Capacitor, electrolytic, 2200 uf, 63 vdc CE-222-63-SE
C110 Capacitor, ceramic disc,
0.01
uf, 100 vdc
CC-A01-101
C111
Capacitor, tantalum, 1 uf,
50
vdc CE-1-500
C201
Capacitor, electrolytic, 330 uf,
50
vdc
CE-331-50-SE
C202, C203 Capacitor, tantalum, 1 uf,
50
vdc
CE-1-500
C204
Capacitor, electrolytic, 100 uf,
25
vdc CE-101-25-SE
C205 Capacitor, ceramic disc,
0.01
uf, 100 vdc
CC-A01-101
C206
Capacitor, ceramic disc, 100 pf, 1 K vdc CC-A0001-102
C207
Not used
C208 Capacitor,
plastic
film,
0.001
uf, 200 vdc
CP-24-2
C209 Capacitor, electrolytic, 2200 uf, 63 vdc
C E-222-63-S E
C210 Capacitor, ceramic disc,
0.01
uf, 100 vdc
CC-A01-101
C211
Capacitor, tantalum, 1 uf,
50
vdc
CE-1-500
CR101
thru
CR105 Diode,
silicon
Gl44
CR106 thru
CR109 Diode,
silicon
Sl5A2
CR110
Rectifier,
silicon
controlled
C13F
CR111
Not used
CR112
Diode,
silicon
Gl44
CR201
thru
CR205
Diode,
silicon
Gl44
CR206 thru
CR209
Diode,
silicon
Sl5A2
CR210
Rectifier,
silicon
controlled
C13F
CR211
Rectifier,
silicon
controlled
C122B
CR212
Diode,
silicon
G144
F101
Fuse, 2A, 250V, Slo-Blo
MDX
F201
Fuse, 2A, 250V, Slo-Blo
MDX
Q101
Transistor,
silicon
NPN
MS1700G
Q102
Transistor,
silicon
NPN
2N2219A
Q201
Transistor,
silicon
NPN
MS1700G
Q202
Transistor,
silicon
NPN
2N2219A
R101
Resistor, metal film, 3.92K ohm, ± 1 %,
%w
RD-3921-1QA
R102
Resistor, metal film, 1.5K ohm,
±1%,
%w
RD-152-1QA
R103
Resistor, metal fi Im, 845 ohm, ± 1 % , % w
RD-8450-1QA
R104,
R105
Resistor, metal film,
12.1Kohm,
±1%,
%w
RD-1212-1QA
R106
Resistor, metal film, 453 ohm,
±1%,
%w
RD-4530-1
QA
R107
Resistor, metal film, 1.5K ohm,
±1%,
%w
RD-152-1QA
R108
Resistor, metal film, 845 ohm,
±1%,
%w
RD-8450-1
QA
R109
Resistor, metal film, 1.05K ohm, ± 1
%,
%w
RD-1051-1QA
R110
Resistor, metal film, 100 ohm,
±1%,
%w
RD-101-1QA
R111
Resistor, metal oxide, 2.2 ohm, ±
5%,
3w
RD-2F2-3KA
R112
Resistor, metal oxide, 1 ohm, ±
5%,
3w
RD-010-3KA
R113
Resistor, metal oxide,
0.51
ohm, ±
5%,
3w
RD-F51-3KA
R114
Resistor, cermet, trimmer, 200 ohm, ± 10%,
%w
883004-6
R115
Resistor, metal film,
365ohm,±1
%,
%w
R
D-3650-1
QA
R116
Resistor, metal film,
1.05Kohm,
±1%,
%w
RD-1051-1QA
R117
Resistor, metal film, 27.4 ohm, ± 1 %,
%w
RD-27F4-1 QA
-1
4-
