POWER DESIGNS TP340 - Electrical Parts List

Circuit No.
A1
A2
A3
C1
CR307
CR308
CR309
DS1
DS101, DS201
DS301
F1
M101, M201
M301
0103, 0104
0203, 0204
0306 thru 0308
R134, R135
R136
R237, R238
R239
R342, R343
R344
S1
S101, S201
S202
S301
T1

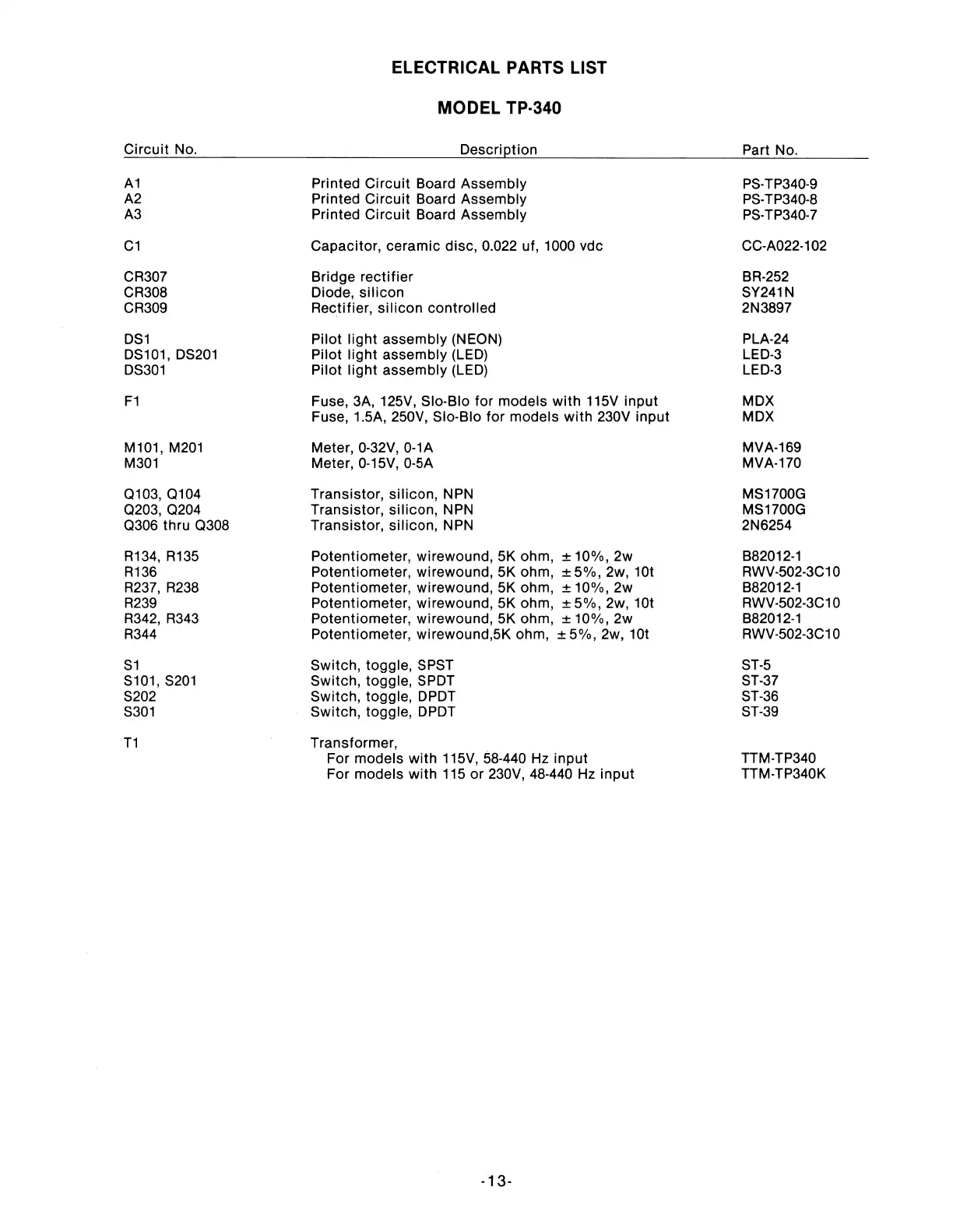

ELECTRICAL PARTS LIST
MODEL TP-340
Description
Printed Circuit Board Assembly
Printed Circuit Board Assembly
Printed Circuit Board Assembly
Capacitor, ceramic disc, 0.022 uf, 1000 vdc
Bridge rectifier
Diode, silicon
Rectifier, silicon controlled
Pilot light assembly (NEON)
Pilot light assembly (LED)
Pilot light assembly (LED)
Fuse, 3A, 125V, Slo-Blo for models with 115V input
Fuse, 1.5A, 250V, Slo-Blo for models with 230V input
Meter, 0-32V, 0-1A
Meter, 0-15V, 0-5A
Transistor, silicon, NPN
Transistor, silicon, NPN
Transistor, silicon, NPN
Potentiometer, wirewound, 5K ohm, ± 10%, 2w
Potentiometer, wirewound, 5K ohm, ± 5%, 2w, 10t
Potentiometer, wirewound, 5K ohm, ± 10%, 2w
Potentiometer, wirewound, 5K ohm, ± 5%, 2w, 10t
Potentiometer, wirewound, 5K ohm, ± 10%, 2w
Potentiometer, wirewound,5K ohm, ± 5%, 2w, 10t
Switch, toggle, SPST
Switch, toggle, SPDT
Switch, toggle, DPDT
Switch, toggle, DPDT
Transformer,
For models with 115V, 58-440 Hz input
For models with 115 or 230V, 48-440 Hz input
-13-
Part No.
PS-TP340-9
PS-TP340-8
PS-TP340-7
CC-A022-102
BR-252
SY241N
2N3897
PLA-24
LED-3
LED-3
MDX
MDX
MVA-169
MVA-170
MS1700G
MS1700G
2N6254
882012-1
RWV-502-3C10
882012-1
RWV-502-3C10
882012-1
RWV-502-3C10
ST-5
ST-37
ST-36
ST-39
TTM-TP340
TTM-TP340K
